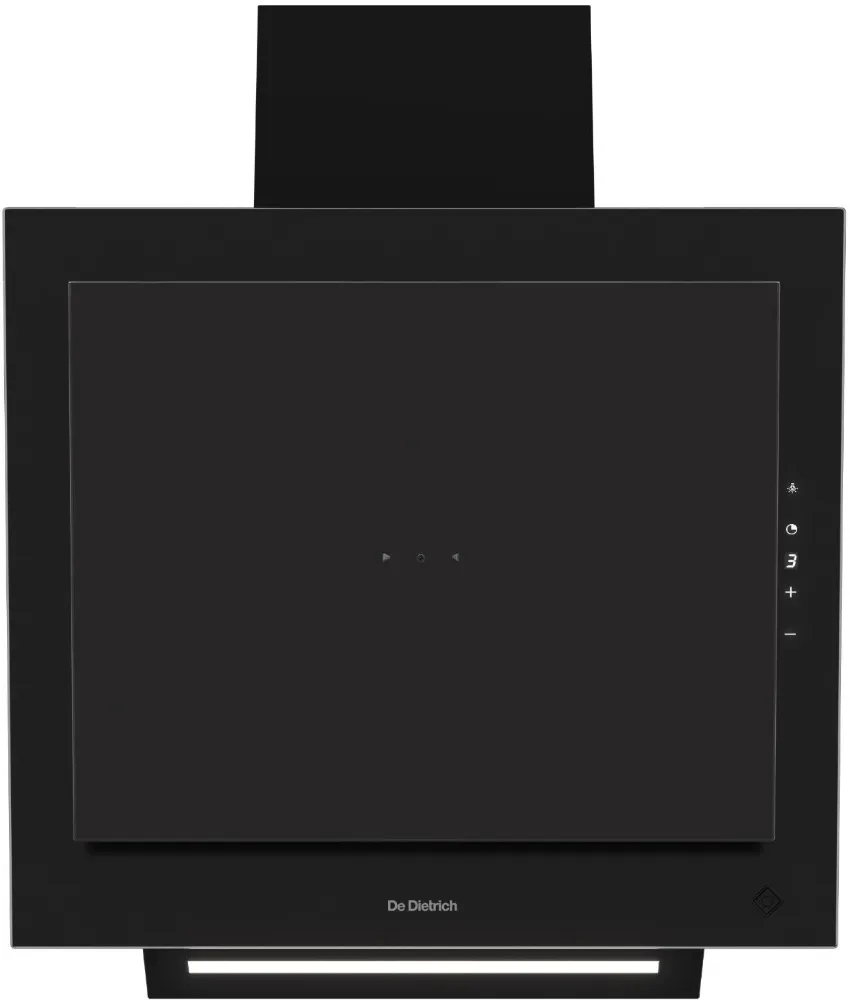

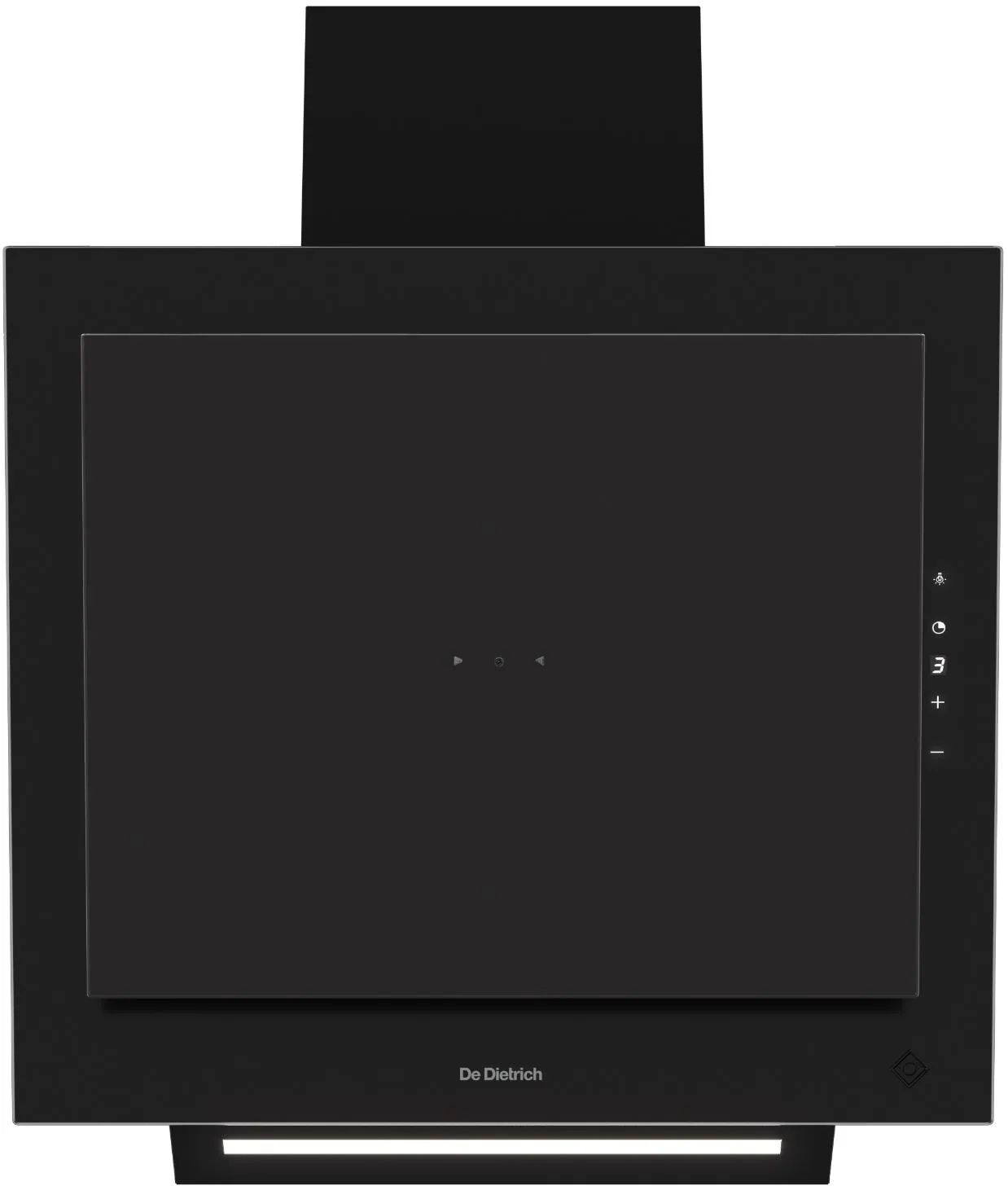

CHIMNEY HOOD DHV4684B
Product code: DHV4684B
Elmax code: 106170

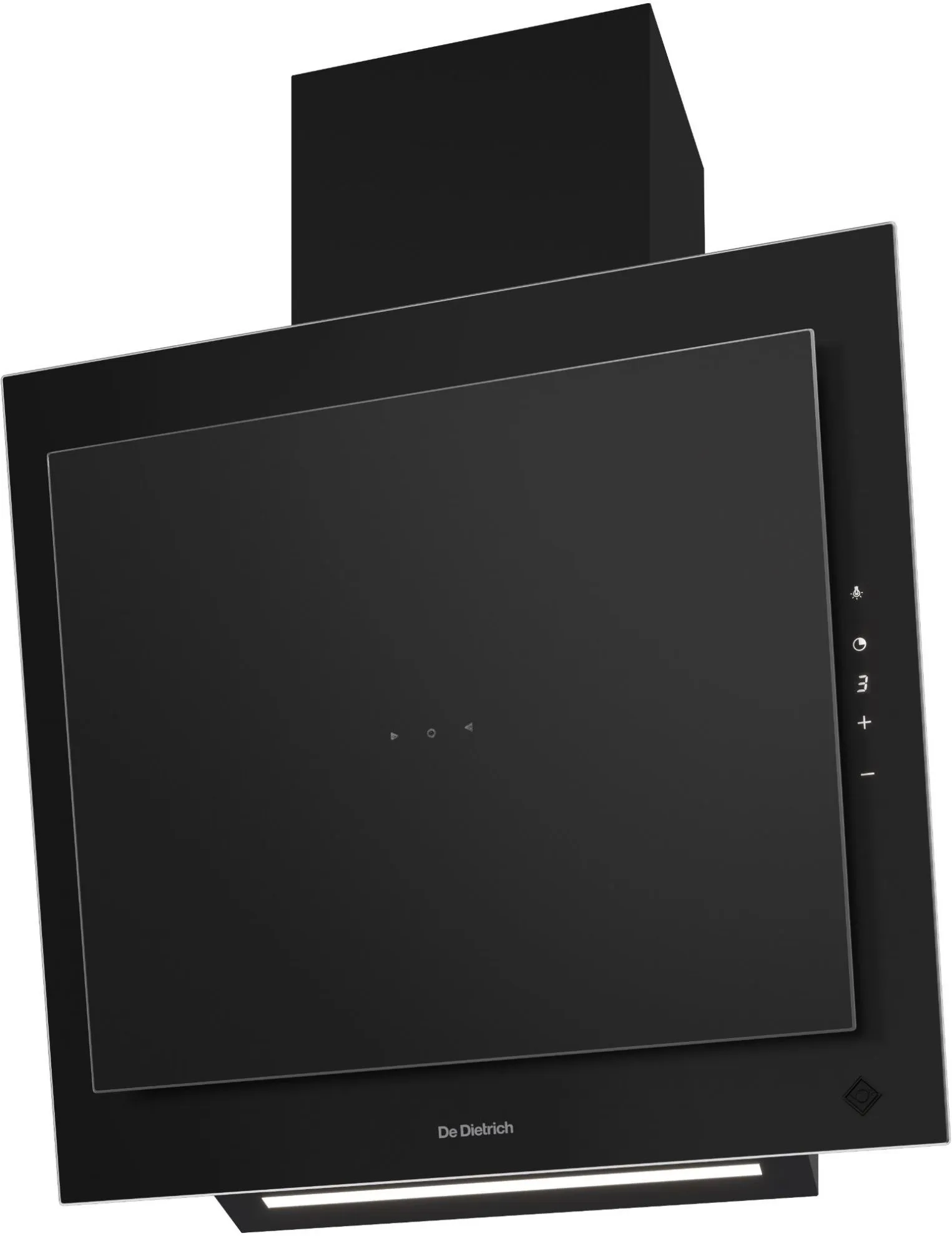

Decorative slanted chimney extractor
Infinite Black color design

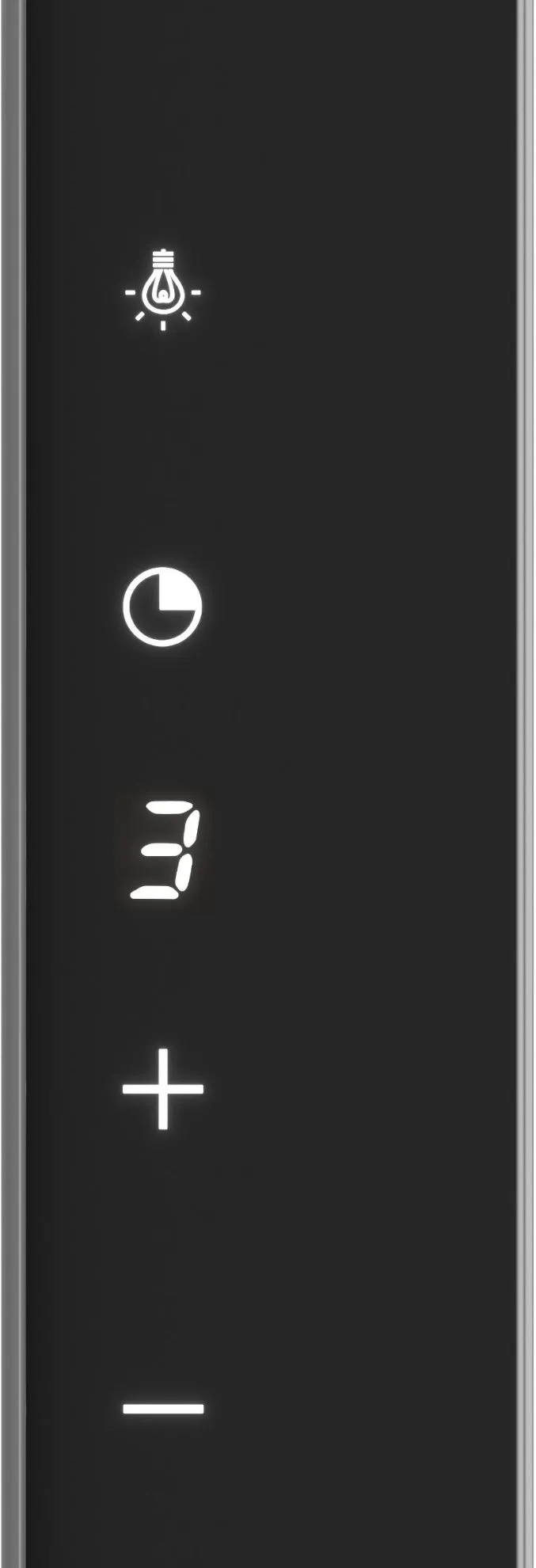

Touch control with display with the possibility of hand gesture control
4 levels of extraction intensity including the Boost function

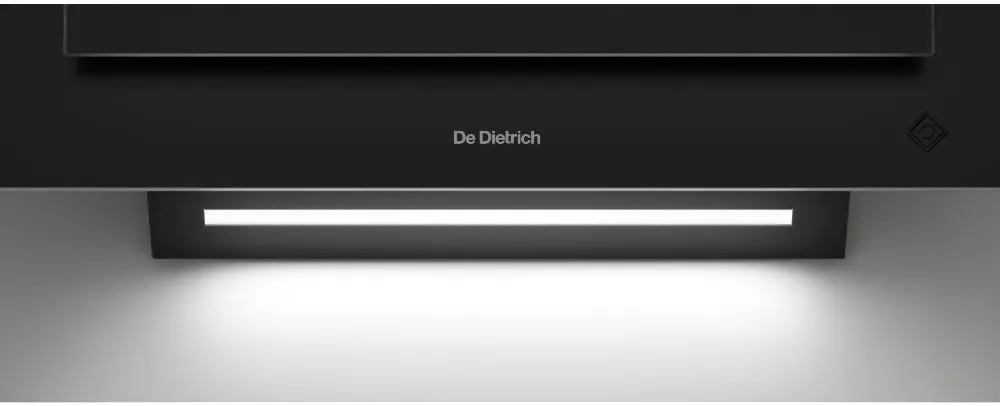

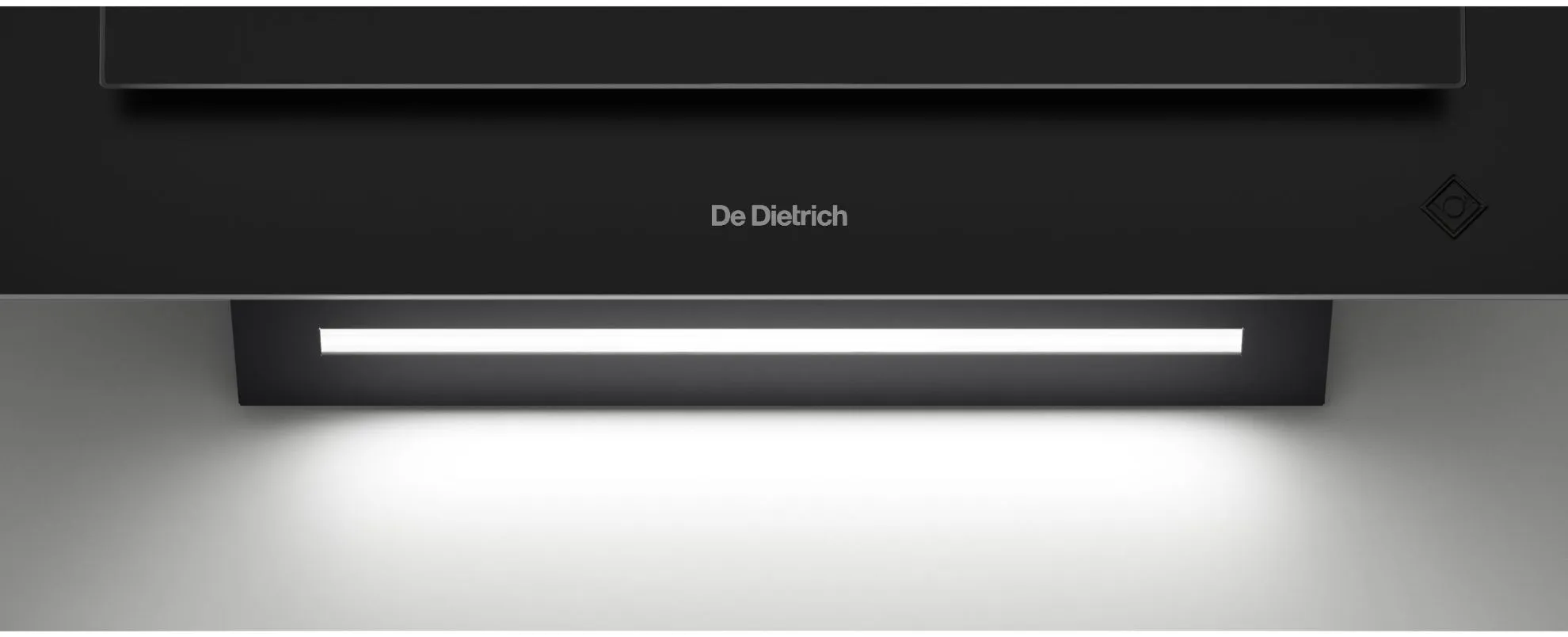

LED strip lighting with the option of adjusting the intensity and color of the light
Delayed shutdown
Installation for extraction or recirculation
Maximum extraction capacity: 700 m3/hour
Noise level min./max.: 41/63 dB(A)
Energy class A+
Annual energy consumption: 33 kWh

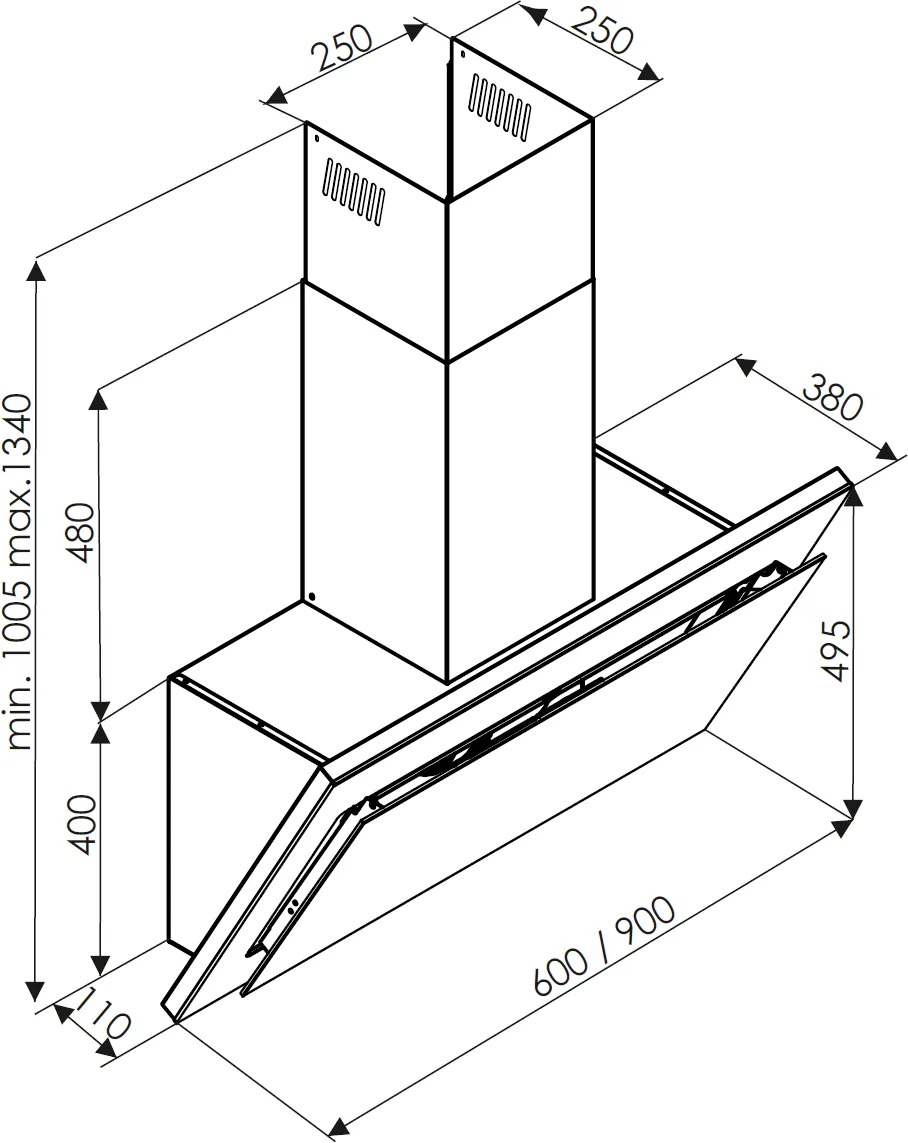

Dimensions (HxWxD): 40 x 60 x 38 cm
€ 849.00

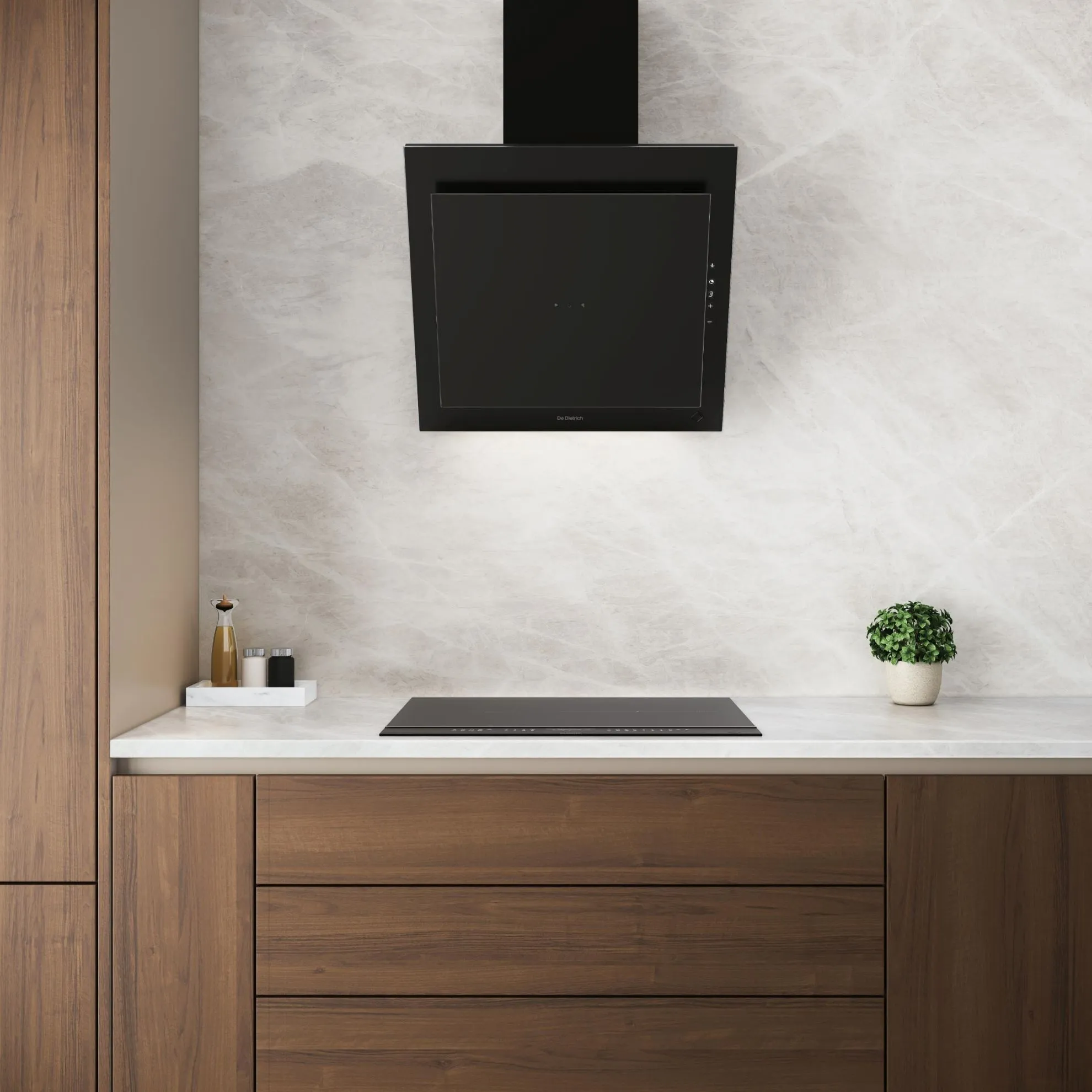

Wall-mounted decorative angled chimney hood, width 60 cm; Color design Infinite Black (black glass); Brushless motor; 4 speeds including Boost; Touch control with backlit buttons (white backlight) with the possibility of controlling the hood using hand gestures; Function: Delayed stop; Maximum output 700 m3/h; Noise level 41-63 dB(A), BOOST: 70 dB(A); Energy efficiency class A+; LED lighting 5W with the option of choosing the intensity and color of the light; 1 pc of aluminum filter suitable for the dishwasher; Non-return flap and reduction from 150 mm to 120 mm included; Carbon filter FR-8705 is not included; Extraction or recirculation operating mode (default recirculation); Dimensions (HxWxD): 40 x 60 x 38 cm.
Use of cutting-edge technologies
At our store, you will find appliances with the latest technologies that are not only top-notch but also practical. We offer innovative solutions that combine advanced features with easy operation to make your culinary experiences more efficient and enjoyable.
Parameters
Basic parameters
Colour design
Černé
Number of power setting stages
4
Controls
Dotykové + ovládání gesty rukou
Remote control
No
Display
Touch control with LED indicators
Lighting type
LED
The possibility of regulating the lighting temperature
Yes
Light intensity control
Yes
Quiet inverter motor
No
Minimum extraction power in standard mode
200 m3/h
Maximum extraction power in standard mode
510 m3/h
Power in Boost mode
700 m3/h
Minimum noise level in standard mode
41 dB(A)
Maximum noise level in standard mode
63 dB(A)
Noise level in Boost mode
70 dB(A)
Number of motors
1
Motor power
160 W
Number of lighting elements
1 ks
Total lighting power
5 W
Annual energy consumption of the refrigerator
33.4 kWh
Power supply
220-240 V / 50 Hz / 10 A
Functions
Extraction mode
Yes
Recirculation mode
Yes
Default mode
Recirculation
Boost function
Yes
Delayed shutdown
Yes
Automatic switch-on with steam sensor
No
Mobile phone control (with Android operating system)
No

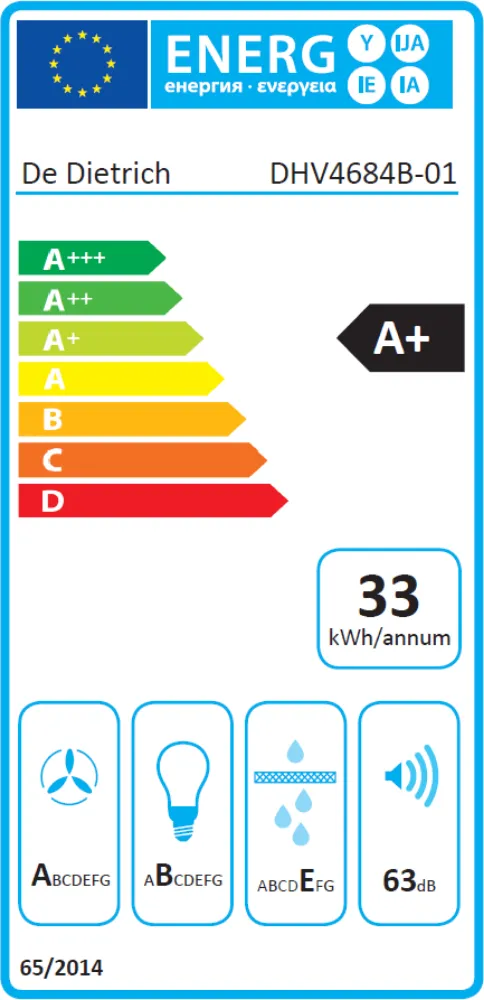

Energy label
Energy efficiency class
A+
Fluid flow efficiency class
A
Lighting efficiency class
B
Grease filtration efficiency class
E
Accessories
Number of grease filters
1
Design of grease filters
Hliník
Dishwasher safe grease filter
Yes
Carbon filter designation
FR-8705 (replacement for FWND185)
Number of carbon filters
2
Carbon filters included
No
Check valve included
Yes
Deflector included
No
Outlet pipe reducer
Yes
Appliance dimensions and weights
Maximum height
40 cm
Motor outlet diameter
15 cm
Diameter of the outlet from the reducer
120 / 150 mm
Air outlet diameter
15 cm
Dimensions in packaging (H x W x D)
62 x 70 x 48
Net / gross weight
20 / 23,7
Width
60 cm
Height
40 cm
Depth
38 cm
Weight
20 kg
Width in package
70 cm
Height in package
62 cm
Depth in package
48 cm
Weight in package
23.7 kg
