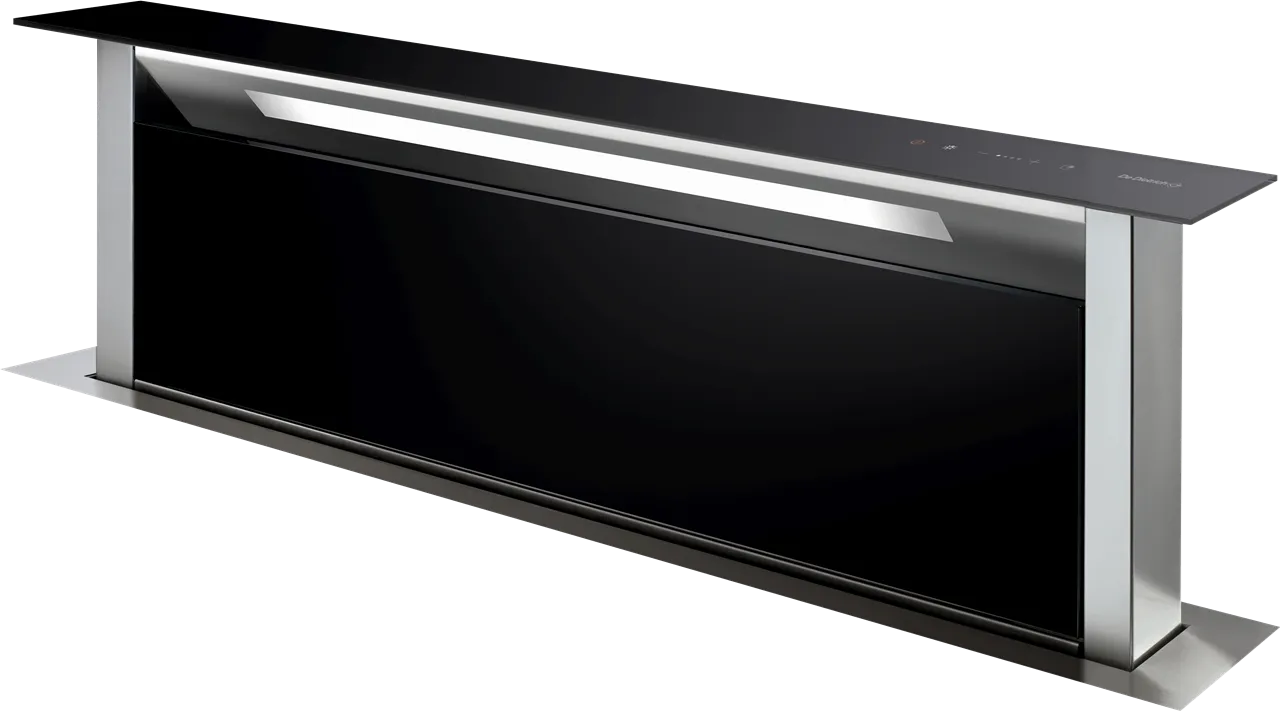

DOWNDRAFT HOOD DHD7261B 120 cm
Product code: DHD7261B
Elmax code: 74047
Downdraft retractable extractor from the worktop
Color finish: Stainless steel
Touch control
4 levels of extraction intensity including Boost function
LED strip lighting
Filter saturation indicator
Delayed shutdown
Installation for extraction or recirculation
Can also be used with a gas hob
Optional accessory: DHK900 - kit for external installation of the motor unit
Maximum extraction power: 791 m³/h
Noise level min./max.: 39/58 dB(A)
Energy class A
Annual energy consumption: 51.9 kWh
Dimensions (HxWxD): 74.2 x 118 x 34 cm
€ 2 479,00
DOWNDRAFT HOOK 120 cm, performance: boost extraction 791 m3/hour, max. extraction 612 m3/hour, boost recirculation 633 m3/hour, max. recirculation 603 m3/hour noise level min/max extraction power: 39/58 dB (A), noise level min/max recirculation performance: 41/68 dB(A), sensitive touch control, 4 speeds incl. boost, En. class A, filter saturation indicator, delayed switch-off, LED strip lighting, aluminum grease filter, carbon filter, extraction and recirculation, optional set for ext. DHK900 motor unit installation, black glass, dimensions without chimney (HxWxD): 73.5 x 116 x 12 cm
Use of cutting-edge technologies
At our store, you will find appliances with the latest technologies that are not only top-notch but also practical. We offer innovative solutions that combine advanced features with easy operation to make your culinary experiences more efficient and enjoyable.
Parameters
Basic parameters
Colour design
černá
Number of power setting stages
4
Controls
Touch electronic
Remote control
No
Lighting type
LED strip (9 W)
Quiet inverter motor
No
Minimum extraction power in standard mode
280 m3/h
Maximum extraction power in standard mode
612 m3/h
Power in Boost mode
791 m3/h
Minimum noise level in standard mode
39 dB(A)
Maximum noise level in standard mode
58 dB(A)
Noise level in Boost mode
65 dB(A)
Filter dirt indicator
Yes
Number of motors
1
Number of fans
1
Motor power
275 W
Number of lighting elements
1 ks
Total lighting power
9 W
Annual energy consumption of the refrigerator
51,9 kWh
Standby power consumption
0,46 W
Power supply
220-240 V / 50 Hz / 10 A
Functions
Extraction mode
Yes
Recirculation mode
Yes
Default mode
Recirculation
Boost function
Yes
Delayed shutdown
Yes
Air cleaning
Yes
Energy label
Energy efficiency class
A
Fluid flow efficiency class
A
Fluid flow efficiency
31,7
Lighting efficiency class
A
Lighting efficiency
42,8 lux/W
Grease filtration efficiency class
E
Grease filtration efficiency
63 %
Accessories
Number of grease filters
2
Design of grease filters
Hliník
Dishwasher safe grease filter
Yes
Carbon filter designation
AK912AE1
Carbon filters included
Yes
Check valve included
Yes
Kit for external motor positioning (optional extra)
DHK900

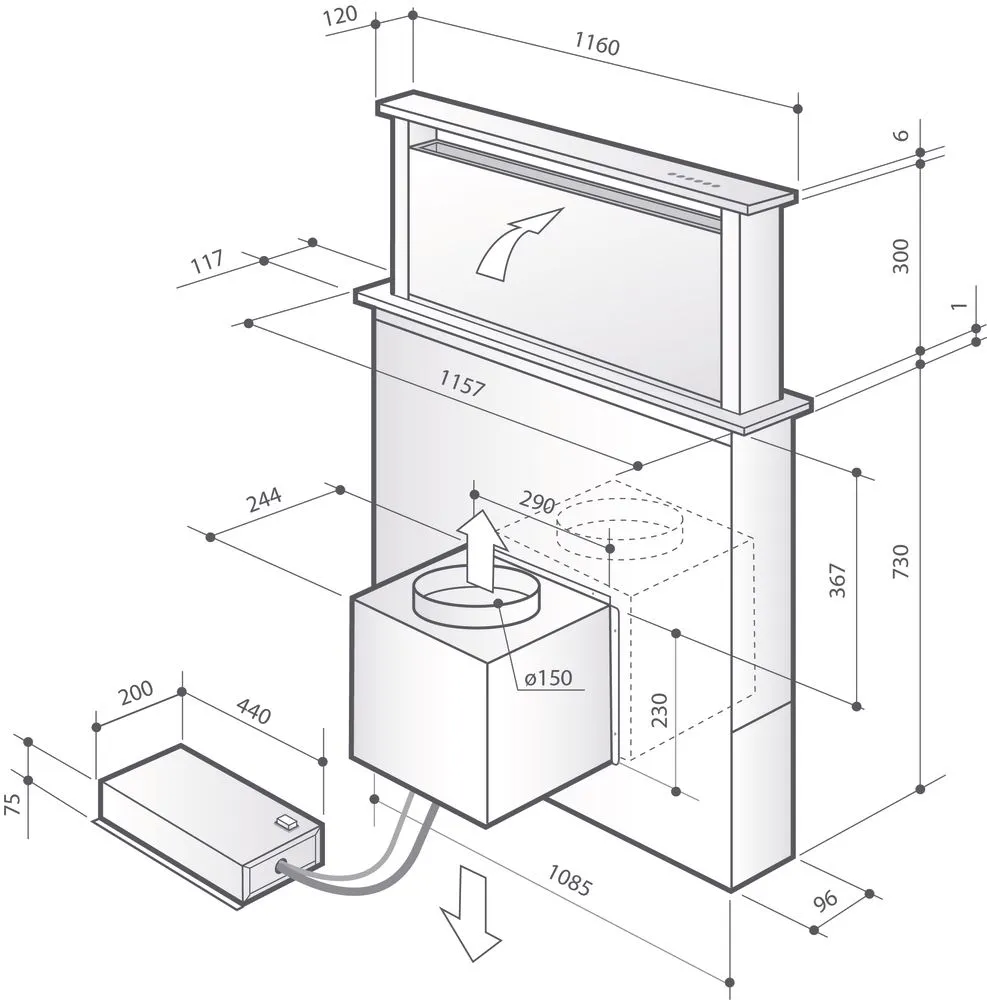

Appliance dimensions and weights
Motor outlet diameter
15 cm
Diameter of the outlet from the reducer
125 / 150 mm
Air outlet diameter
15 cm
Width
118 cm
Height
74,2 cm
Depth
34 cm
Weight
45 kg
Width in package
131 cm
Height in package
87,5 cm
Depth in package
41,5 cm
Weight in package
56 kg
