DOWNDRAFT HOOD DHD7961B 86 cm
Product code: DHD7961B
Elmax code: 74046
Downdraft retractable extractor from the worktop
Color finish: Stainless steel
Touch control
4 levels of extraction intensity including Boost function
LED strip lighting
Filter saturation indicator
Delayed shutdown
Installation for extraction or recirculation
Can also be used with a gas hob
Optional accessory: DHK900 - kit for external installation of the motor unit
Maximum extraction power: 757 m³/h
Noise level min./max.: 38/61 dB(A)
Energy class A
Annual energy consumption: 44.5 kWh
Dimensions (HxWxD): 73.6 x 86 x 34 cm
€ 2,479.00
DOWNDRAFT HOOK 86 cm, performance: boost extraction 757 m3/hr, max. extraction 503 m3/hr, boost recirculation 577 m3/hr, max. recirculation 471 m3/hr noise level min/max extraction power: 38/61 dB (A), noise level min/max recirculation performance: 42/69 dB(A), sensitive touch control, 4 speeds incl. boost, En. class A, filter saturation indicator, delayed switch-off, LED strip lighting, aluminum grease filter, carbon filter, extraction and recirculation, optional set for ext. DHK900 motor unit installation, black glass, dimensions without chimney (H x W x D cm): 73.6 x 86 x 34
Use of cutting-edge technologies
At our store, you will find appliances with the latest technologies that are not only top-notch but also practical. We offer innovative solutions that combine advanced features with easy operation to make your culinary experiences more efficient and enjoyable.
Parameters
Basic parameters
Colour design
černá
Number of power setting stages
4
Controls
Touch electronic
Remote control
No
Lighting type
LED strip (5 W)
Quiet inverter motor
No
Minimum extraction power in standard mode
268 m3/h
Maximum extraction power in standard mode
605 m3/h
Power in Boost mode
757 m3/h
Minimum noise level in standard mode
38 dB(A)
Maximum noise level in standard mode
61 dB(A)
Noise level in Boost mode
68 dB(A)
Filter dirt indicator
Yes
Number of motors
1
Number of fans
1
Motor power
250 W
Number of lighting elements
1 ks
Total lighting power
5 W
Annual energy consumption of the refrigerator
44.5 kWh
Standby power consumption
0.46 W
Power supply
220-240 V / 50 Hz / 10 A
Functions
Extraction mode
Yes
Recirculation mode
Yes
Default mode
Recirculation
Boost function
Yes
Delayed shutdown
Yes
Energy label
Energy efficiency class
A
Fluid flow efficiency class
A
Fluid flow efficiency
32.7
Lighting efficiency class
A
Lighting efficiency
48.4 lux/W
Grease filtration efficiency class
E
Grease filtration efficiency
63 %
Accessories
Number of grease filters
2
Dishwasher safe grease filter
Yes
Carbon filter designation
AK700AE1
Carbon filters included
Yes
Check valve included
Yes
Kit for external motor positioning (optional extra)
DHK900

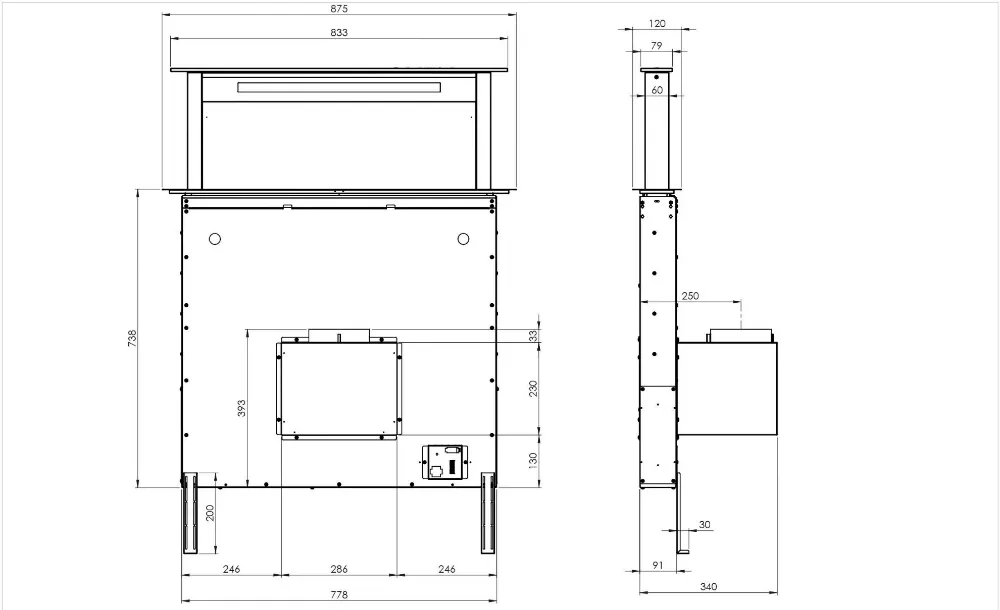

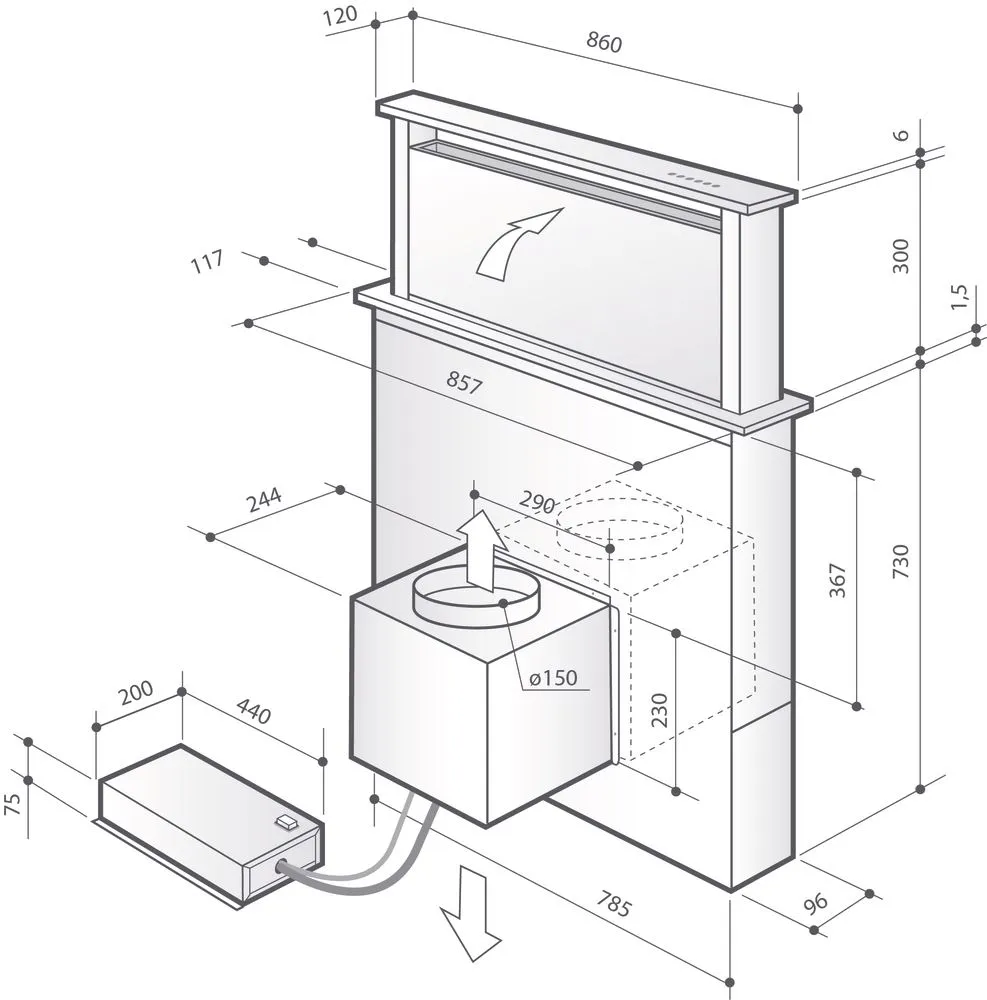

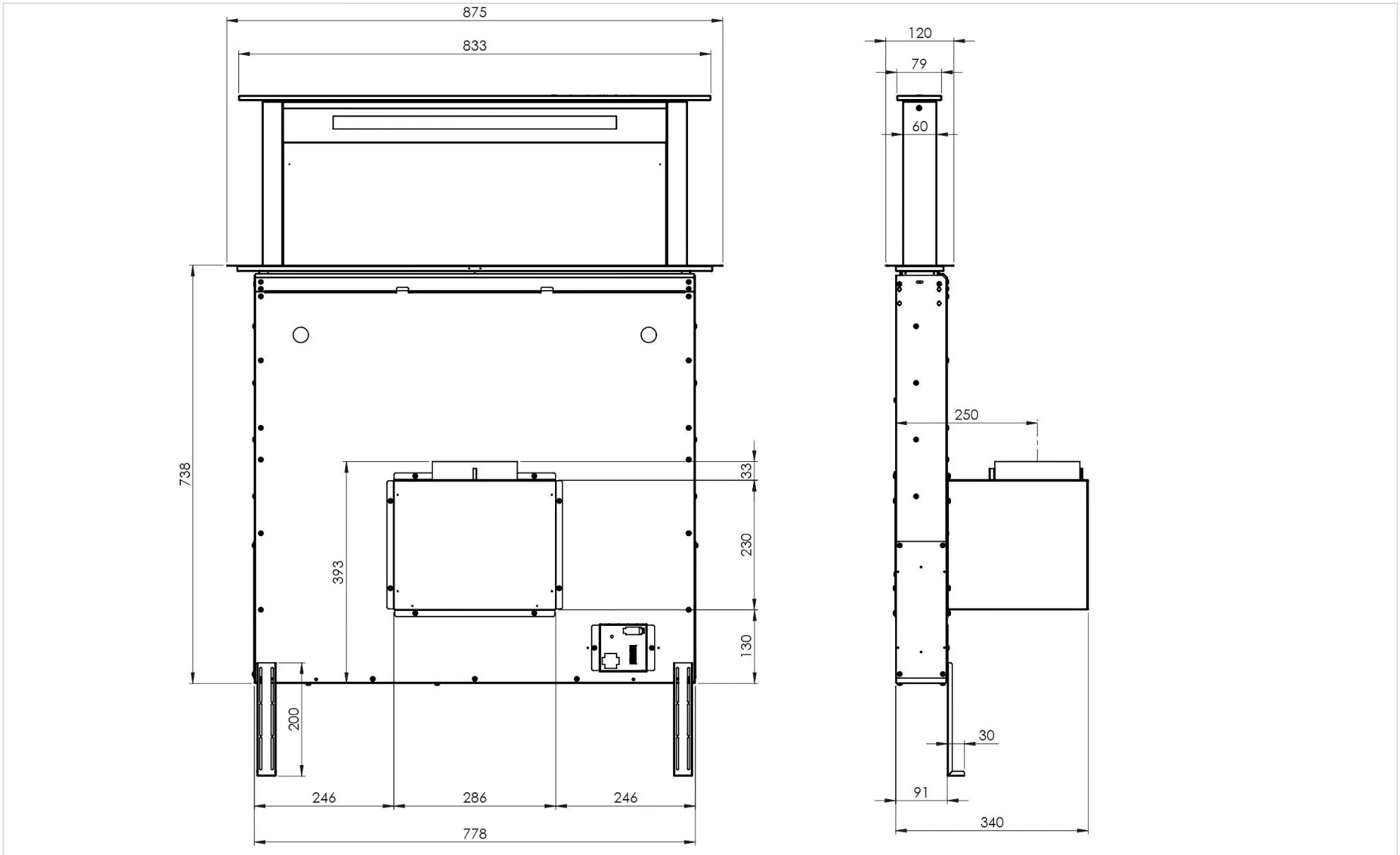

Appliance dimensions and weights
Minimum height
73.6 cm
Maximum height
103.6 cm
Motor outlet diameter
15 cm
Diameter of the outlet from the reducer
125 / 150 mm
Air outlet diameter
15 cm
Width
86 cm
Height
73.6 cm
Depth
34 cm
Weight
37 kg
Width in package
101 cm
Height in package
43 cm
Depth in package
87 cm
Weight in package
46 kg
