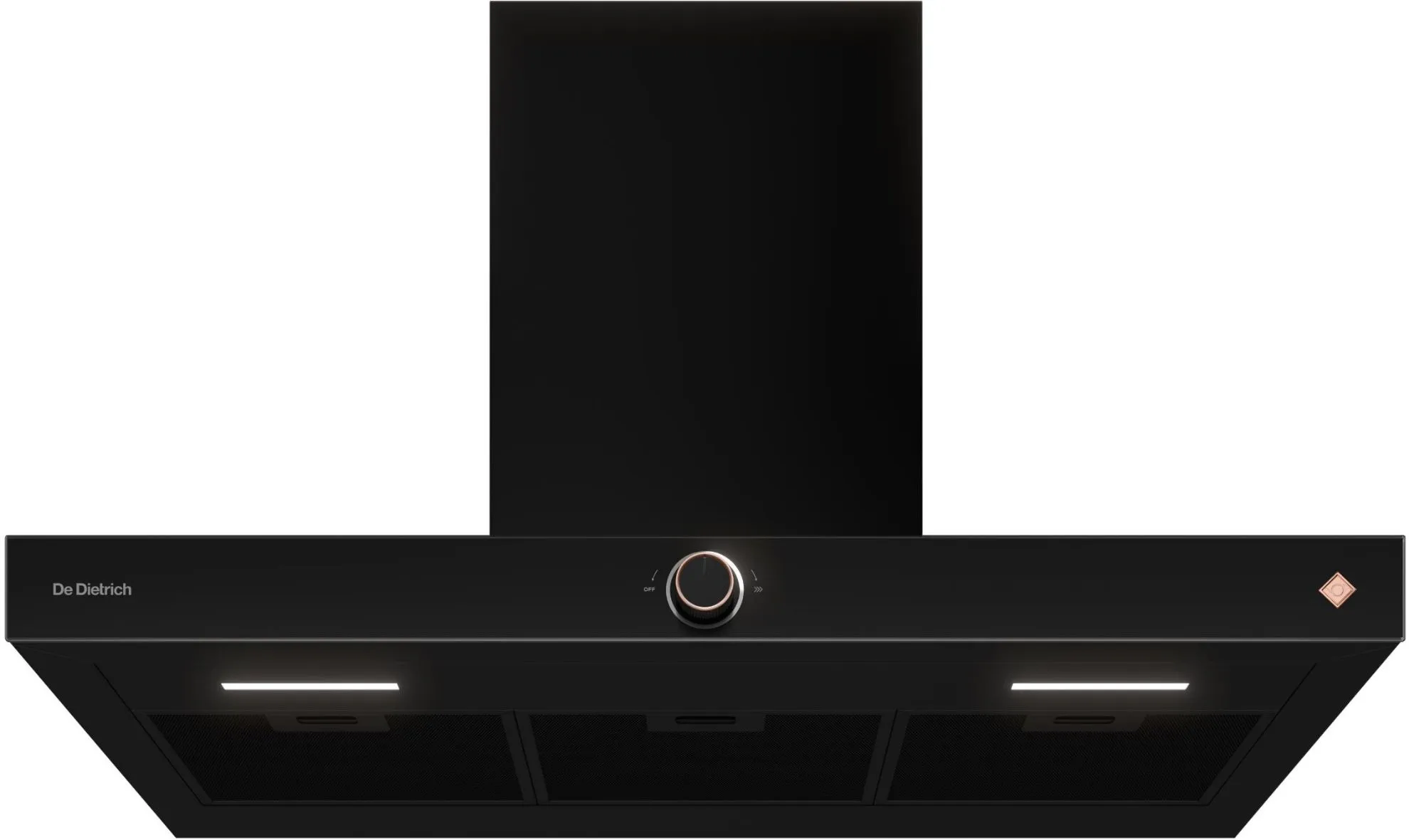

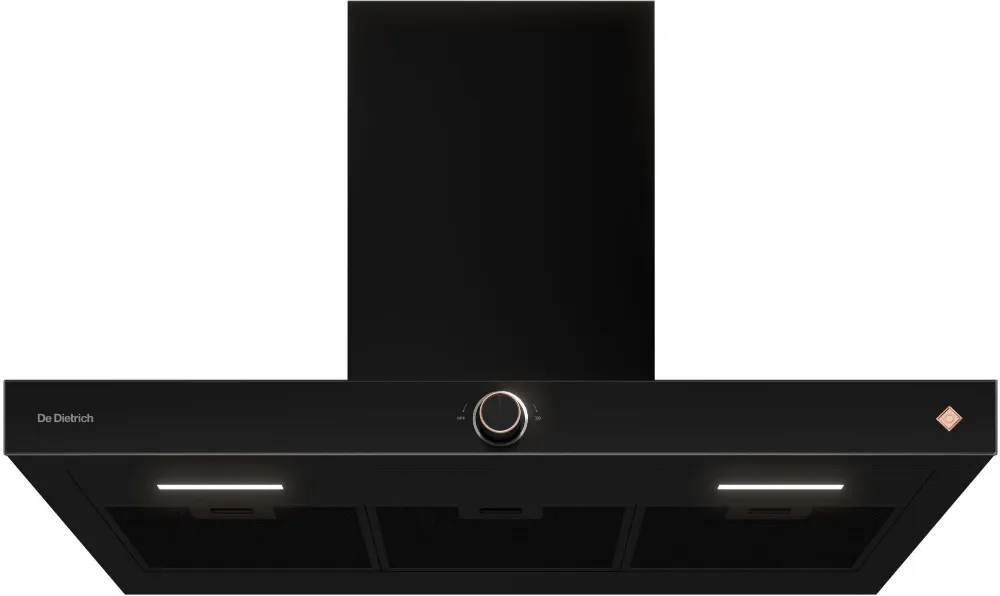

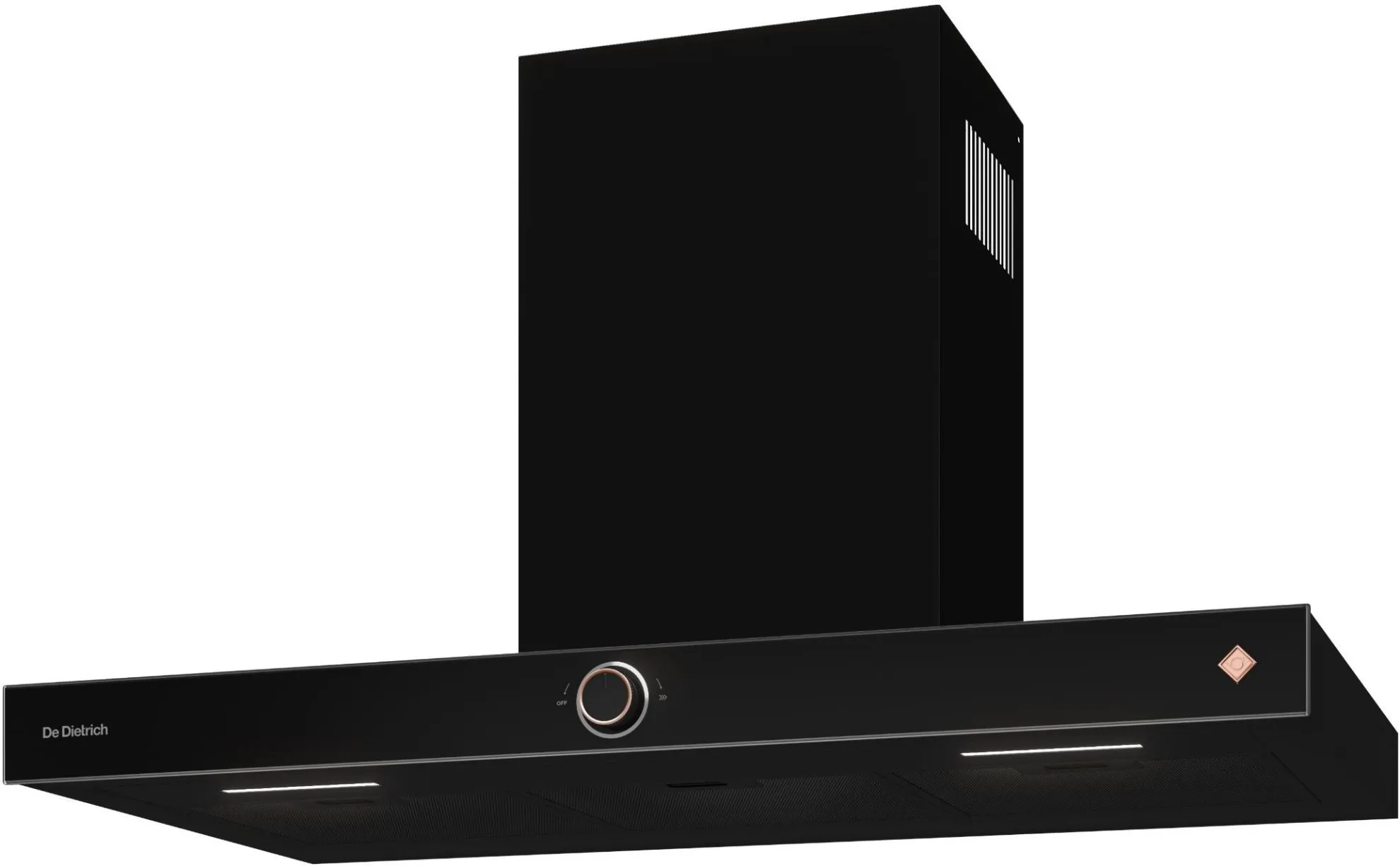

CHIMNEY HOOD DHB4934B

Product code: DHB4934H

Elmax code: 108101

Decorative chimney cooker hood

Color finish: Heritage

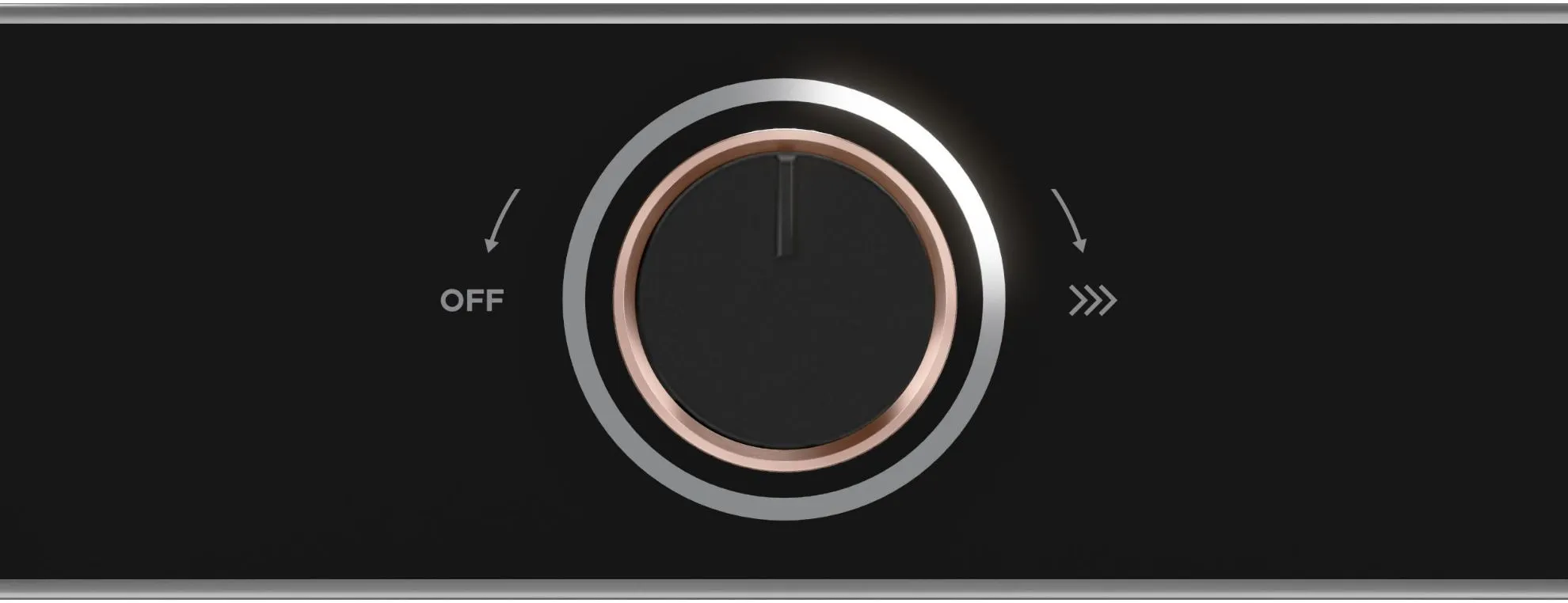

Control with a designer rotary knob

10 levels of extraction intensity including Boost function

2x LED lighting with adjustable light intensity

Installation for extraction or recirculation

Maximum extraction capacity: 735 m³/h

Noise level min./max.: 42/65 dB(A)

Energy efficiency class A+

Annual energy consumption: 38.9 kWh

Dimensions (HxWxD): 6.5 x 90 x 50.5 cm

€ 789.00

Find a retailer

Wall-mounted decorative chimney cooker hood, 90 cm wide, in Heritage color; Rotary control knob for adjusting extraction power; 10 levels of extraction power settings; Adjustable LED lighting intensity. This feature allows you to adjust the hood's light intensity to 3 levels to match the room's lighting; Maximum extraction capacity: 735 m³/h; Noise level: 42-65 dB(A); BOOST: 72 dB(A); Energy efficiency class A+; 2x LED lights, 8W each; 3 aluminum filters, dishwasher-safe; Backflow valve included in the package; Activated carbon filter for recirculation mode: 3 x FR-7708 (replacement for FWK240) not included; Annual energy consumption: 38.9 kWh; Operating modes: extraction or recirculation (default is extraction); Dimensions (HxWxD): 6.5 x 90 x 50.5 cm.

Use of cutting-edge technologies

At our store, you will find appliances with the latest technologies that are not only top-notch but also practical. We offer innovative solutions that combine advanced features with easy operation to make your culinary experiences more efficient and enjoyable.

LED osvětlení

Osvětlení je řešeno s využitím moderní LED technologie

More information

Parameters

Basic parameters

Colour design

černé

Number of power setting stages

10

Controls

Rotary controller

Remote control

No

Display

No

Lighting type

LED

Light intensity control

Yes

Quiet inverter motor

Yes

Minimum extraction power in standard mode

190 m3/h

Maximum extraction power in standard mode

540 m3/h

Power in Boost mode

735 m3/h

Minimum noise level in standard mode

42 dB(A)

Maximum noise level in standard mode

65 dB(A)

Noise level in Boost mode

72 dB(A)

Filter dirt indicator

No

Number of motors

1

Number of fans

1

Motor power

160 W

Number of lighting elements

2 ks

Total lighting power

8 W

Annual energy consumption of the refrigerator

38.9 kWh

Power consumption in off mode

0.45 W

Power supply

220-240 V / 50 Hz / 10 A

Functions

Extraction mode

Yes

Recirculation mode

Yes

Default mode

Exhaust

Boost function

Yes

Delayed shutdown

No

Automatic switch-on with steam sensor

No

Mobile phone control (with Android operating system)

No

Autolink

Ne

Hob to Hood

Ne

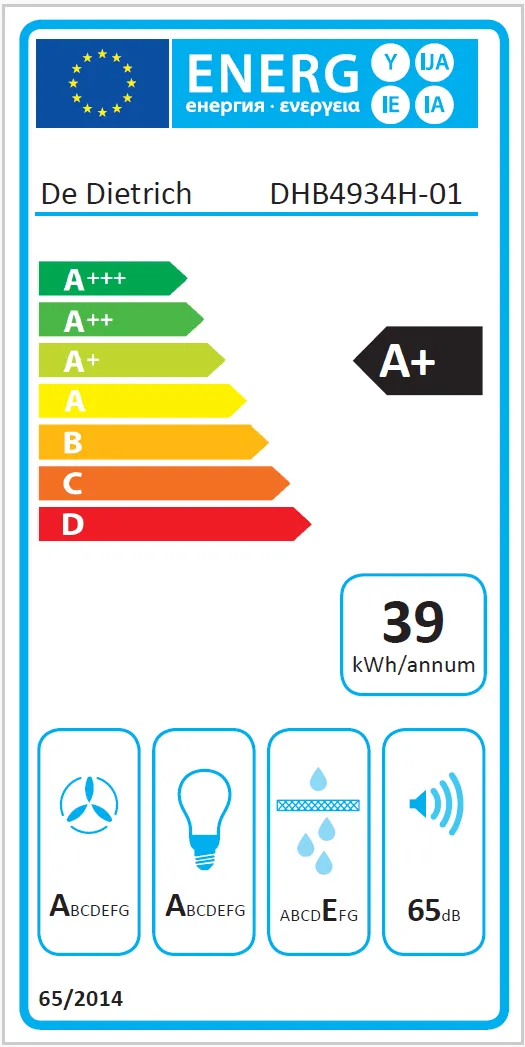

Energy label

Energy efficiency class

A+

Fluid flow efficiency class

A

Fluid flow efficiency

34.8

Lighting efficiency class

A

Lighting efficiency

40 lux/W

Grease filtration efficiency class

E

Grease filtration efficiency

58 %

Accessories

Number of grease filters

3

Design of grease filters

Hliník

Dishwasher safe grease filter

Yes

Carbon filter designation

FR-7708 (replacement for FWK240)

Number of carbon filters

3

Carbon filters included

No

Check valve included

Yes

Appliance dimensions and weights

Minimum height

63 cm

Maximum height

96 cm

Motor outlet diameter

15 cm

Air outlet diameter

15 cm

Dimensions in packaging (H x W x D)

54 x 100 x 57,5

Net / gross weight

16,5 / 20,7

Width

90 cm

Height

6.5 cm

Depth

50.5 cm

Weight

16.5 kg

Width in package

100 cm

Height in package

54 cm

Depth in package

57.5 cm

Weight in package

20.7 kg

Documents and manuals

Návod k obsluze a instalaci (CZ)

Návod k obsluze a instalaci (SK)

Informační list (CZ)

Informační list (SK)

Energetický štítek

Technologies

LED osvětlení

Osvětlení je řešeno s využitím moderní LED technologie
