De Dietrich

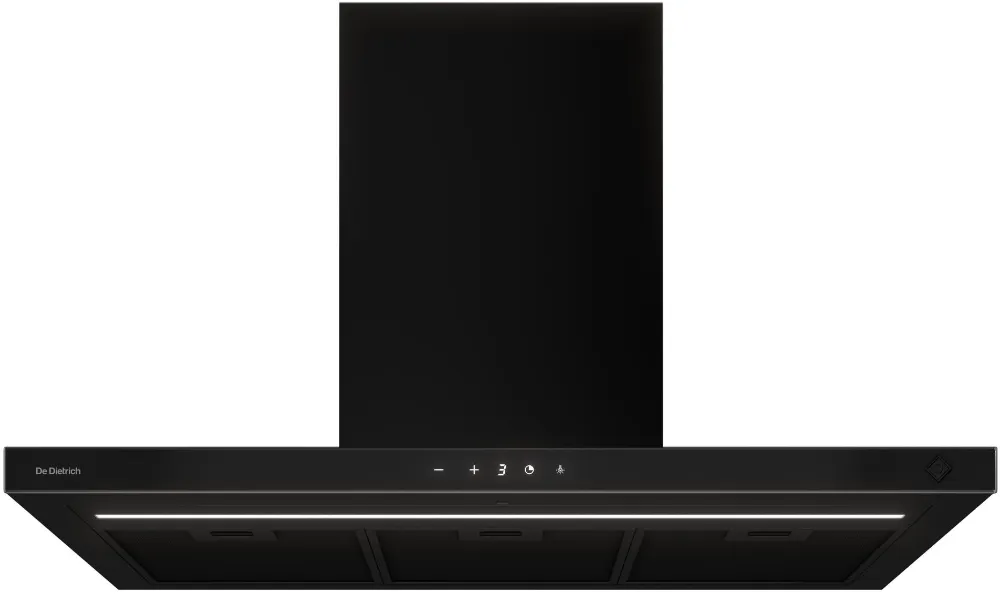

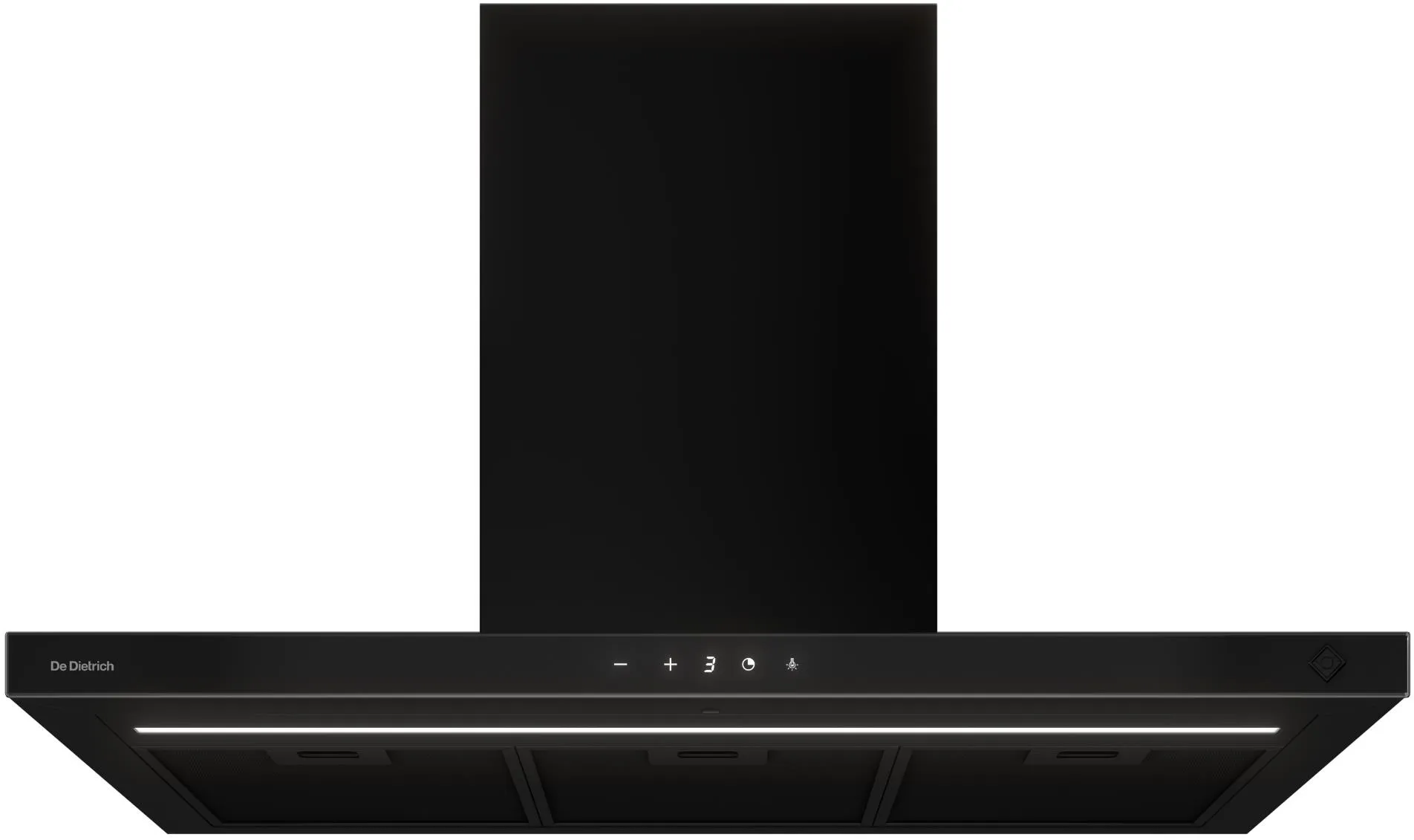

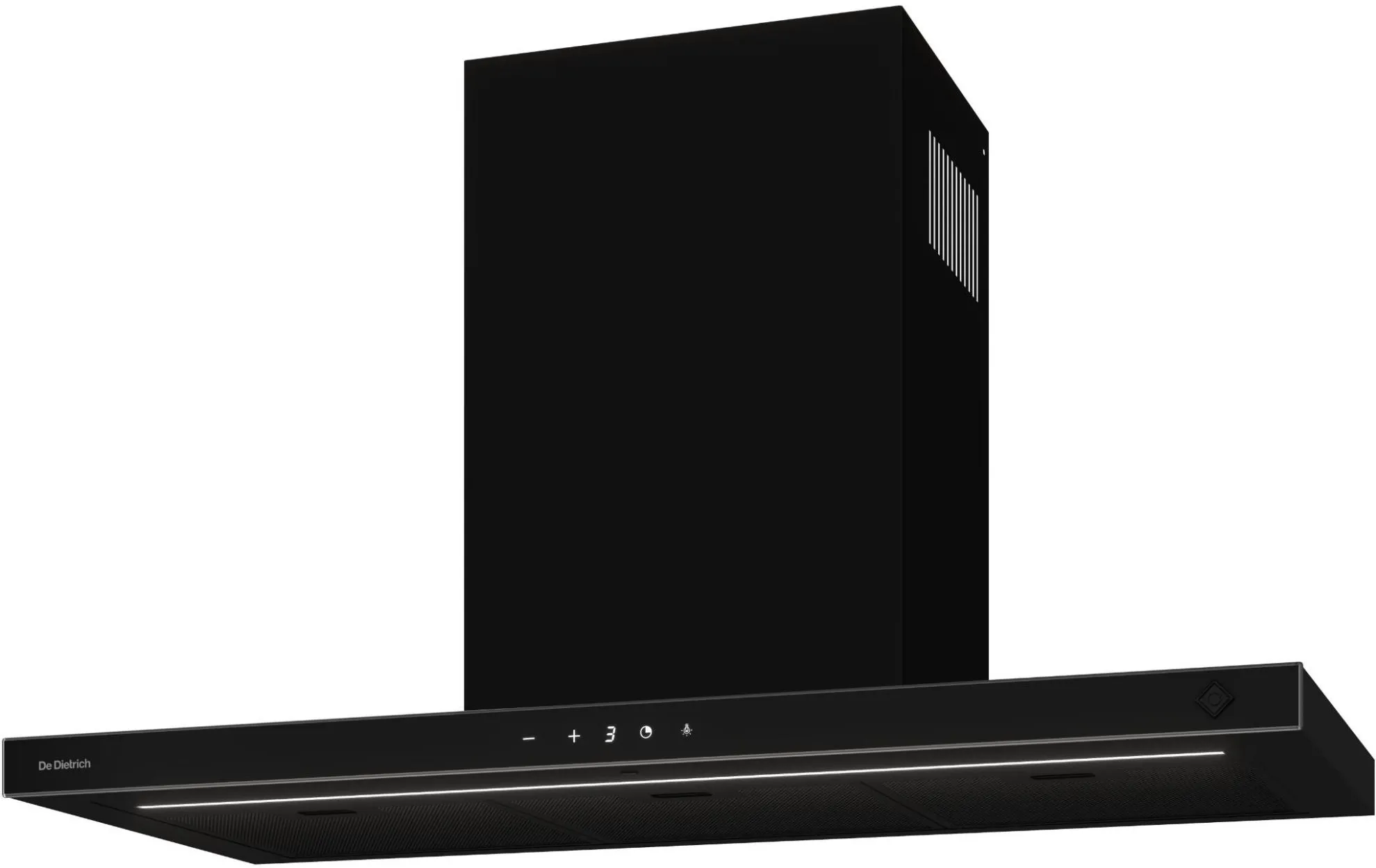

CHIMNEY HOOD DHB49740B

Product code: DHB49740B
Elmax code: 106172
Decorative chimney hood
Infinite Black color design

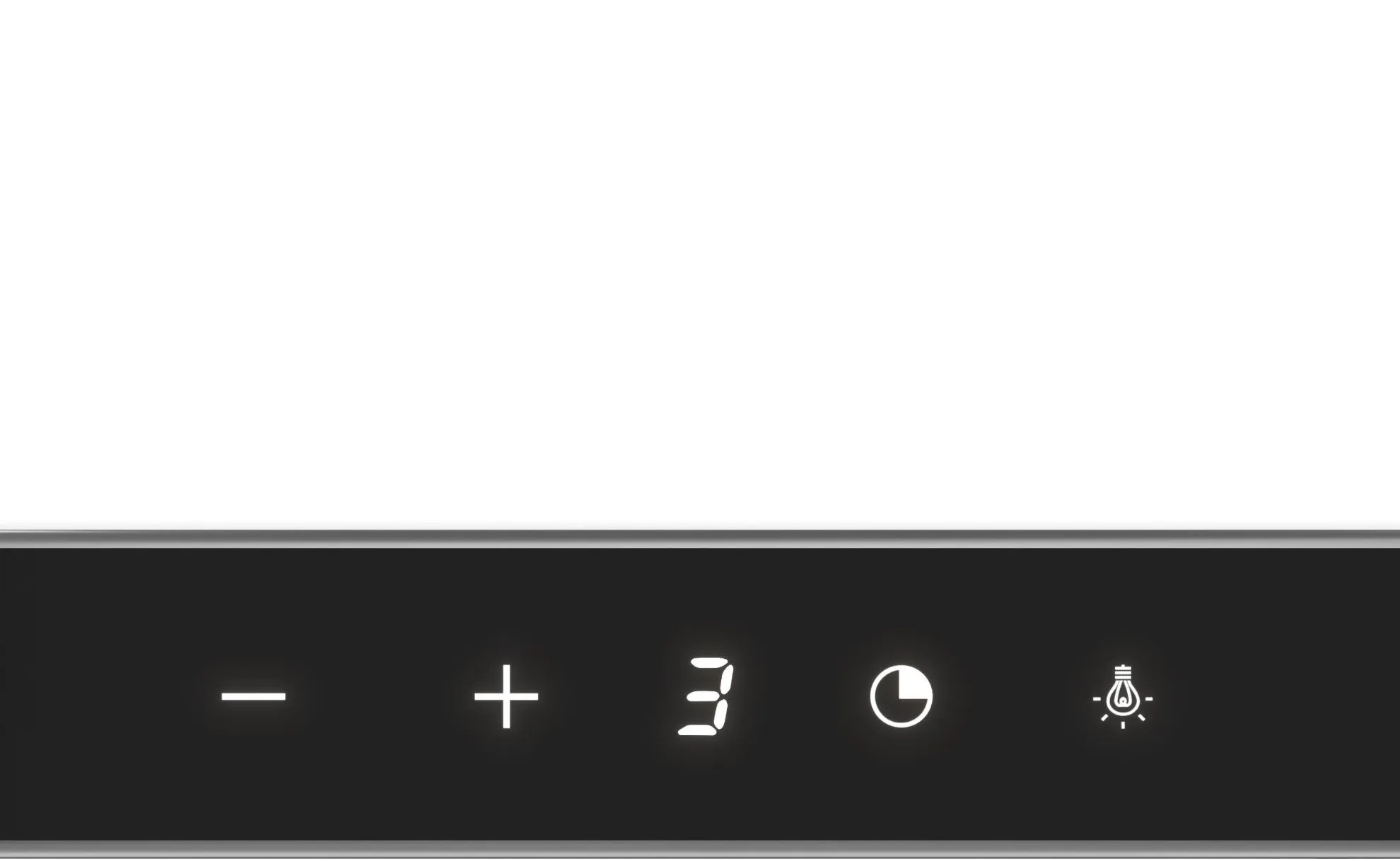

Touch control
4 levels of suction intensity including the Boost function
LED strip lighting with the ability to adjust the intensity and color of the light
Delayed shutdown
Installation for extraction or recirculation
AutoLink function (Hob to hood) – connection with the hob
Maximum suction power: 735 m³/hour
Noise level min./max.: 42/65 dB(A)
Energy class A+
Annual energy consumption: 35.4 kWh
Dimensions (HxWxD): 4 x 90 x 40, 6 cm

Wall-mounted decorative chimney hood 90 cm wide in Infinite Black; Touch control with backlit buttons (white backlight) for setting suction power and lighting; Possibility to adjust the intensity of the LED lighting. This function allows you to adjust the light intensity of the hood in 3 levels to adapt it to the light in the room; The hood has the AutoLink function, which allows you to cook comfortably without the need to turn on the hood manually. The induction plate transmits information about the set power to the extractor, which adjusts the speed of the extracted air according to the power; The cooker hood is also equipped with a Delayed switch-off function, where after cooking you can set the time for which the cooker hood will continue to extract unpleasant odors and steam created during cooking. Maximum suction power: 735 m3/hour; Noise level 42-65 dB(A); BOOST: 72 dB(A); Energy efficiency class A+; LED lighting (strip) 9W; 3 pcs of dishwasher-safe aluminum filters; Check valve included in the package; Activated carbon filter for recirculation mode: 2 x AHFC330 included; Annual energy consumption: 35.4 kWh; Extraction or recirculation operating mode (default extraction); Dimensions (HxWxD): 4 x 90 x 40.6 cm.

Use of cutting-edge technologies

At our store, you will find appliances with the latest technologies that are not only top-notch but also practical. We offer innovative solutions that combine advanced features with easy operation to make your culinary experiences more efficient and enjoyable.
Parameters
Basic parameters
Colour design
Černé
Number of power setting stages
4
Controls
Touch
Remote control
No
Display
Touch control with LED indicators
Lighting type
LED
Light intensity control
Yes
Quiet inverter motor
Yes
Minimum extraction power in standard mode
210 m3/h
Maximum extraction power in standard mode
545 m3/h
Power in Boost mode
735 m3/h
Minimum noise level in standard mode
42 dB(A)
Maximum noise level in standard mode
65 dB(A)
Noise level in Boost mode
72 dB(A)
Filter dirt indicator
No
Number of motors
1
Motor power
160 W
Number of lighting elements
1 ks
Total lighting power
9 W
Annual energy consumption of the refrigerator
35.4 kWh
Power supply
220-240 V / 50 Hz / 10 A
Functions
Extraction mode
Yes
Recirculation mode
Yes
Default mode
Exhaust
Boost function
Yes
Delayed shutdown
Yes
Automatic switch-on with steam sensor
No
Mobile phone control (with Android operating system)
No
Autolink
Ano
Energy label
Energy efficiency class
A+
Fluid flow efficiency class
A
Lighting efficiency class
C
Grease filtration efficiency class
E
Accessories
Number of grease filters
3
Design of grease filters
Hliník
Dishwasher safe grease filter
Yes
Number of carbon filters
2
Carbon filters included
Yes
Check valve included
Yes
Deflector included
No

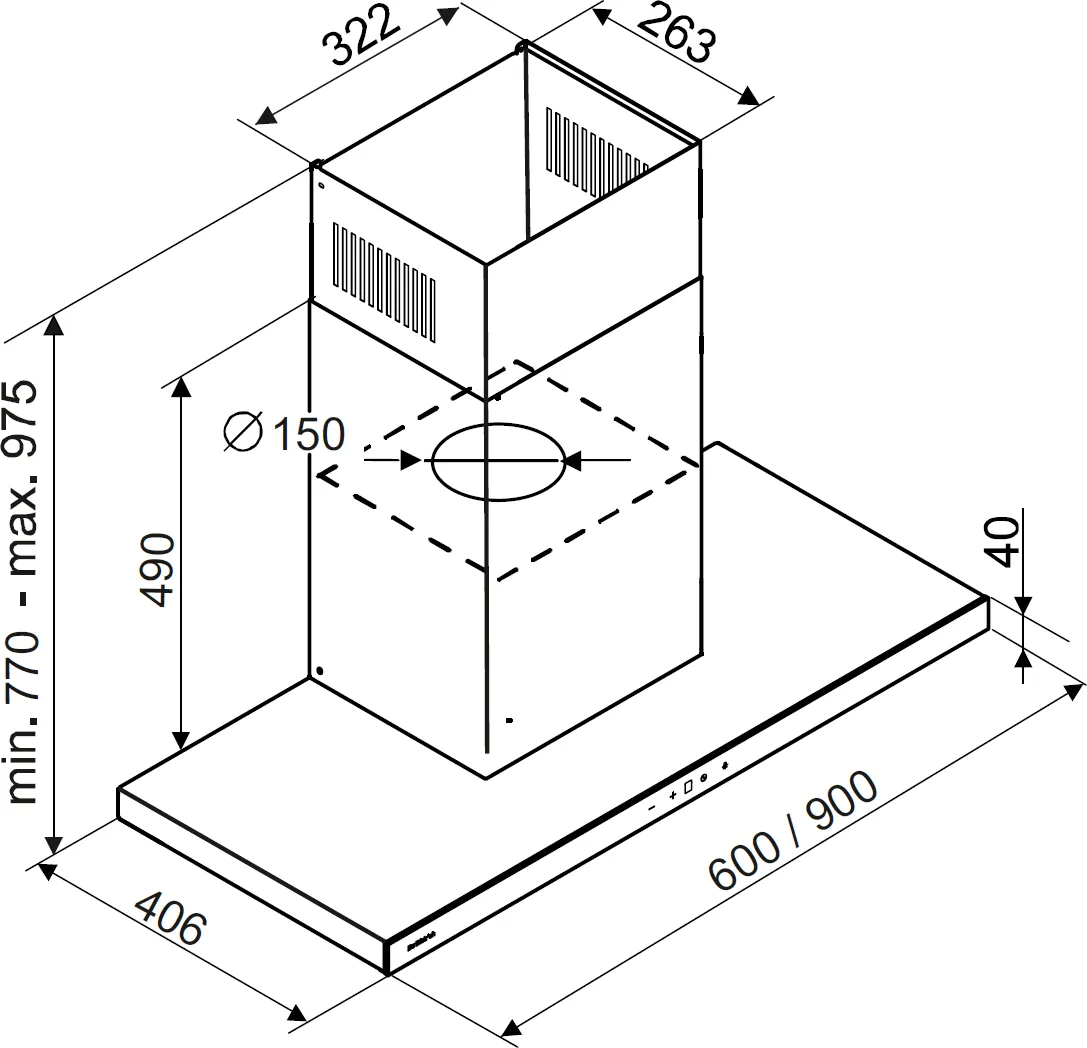

Appliance dimensions and weights
Minimum chimney height
73 cm
Maximum chimney height
93.5 cm
Motor outlet diameter
15 cm
Air outlet diameter
15 cm
Dimensions in packaging (H x W x D)
54 x 100 x 57,5
Net / gross weight
15,2 / 18,8
Width
90 cm
Height
4 cm
Depth
40.6 cm
Weight
15.2 kg
Width in package
100 cm
Height in package
54 cm
Depth in package
57.5 cm
Weight in package
18.8 kg
