CHIMNEY HOOD DHV4674B
Product code: DHV4674B
Elmax code: 107699

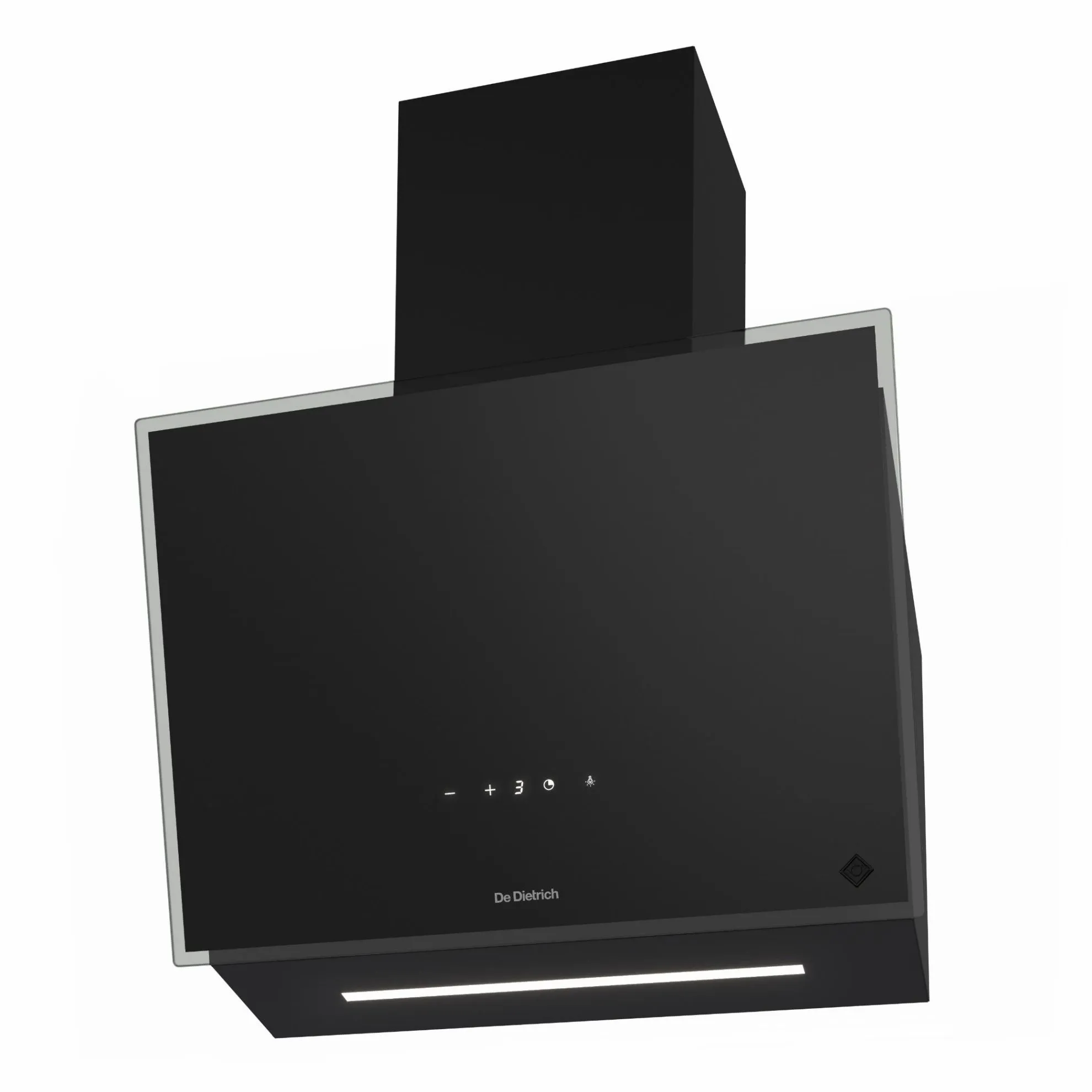

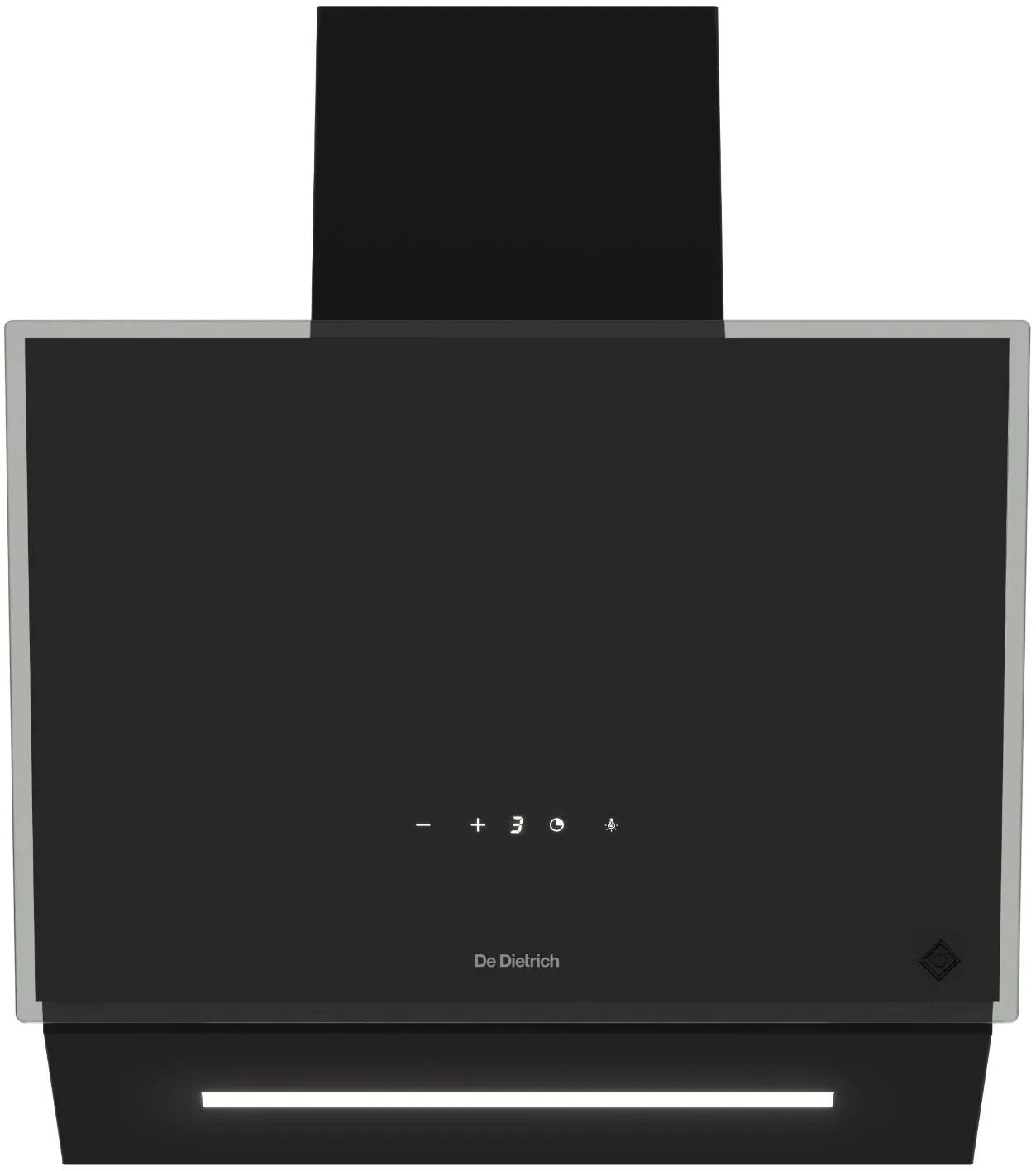

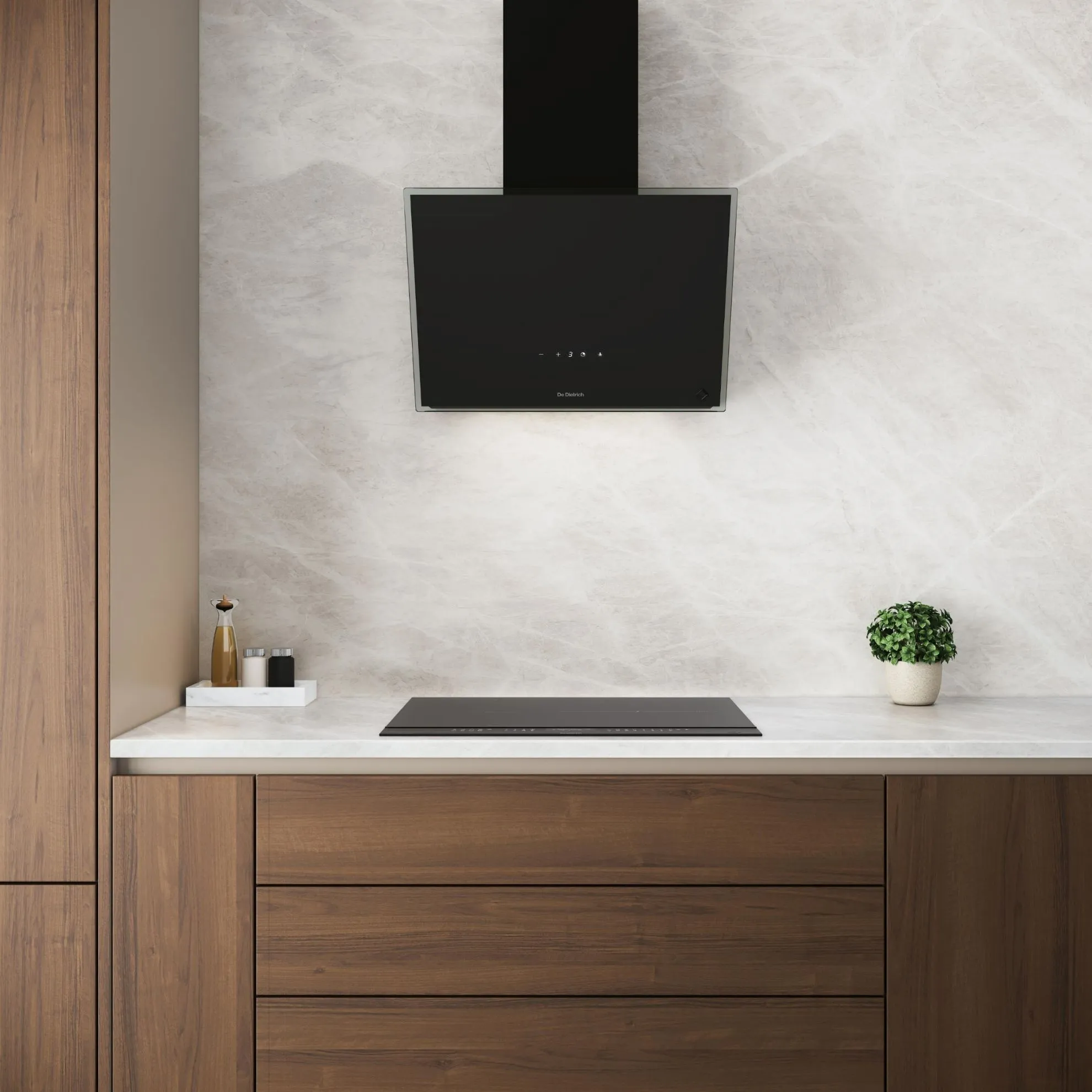

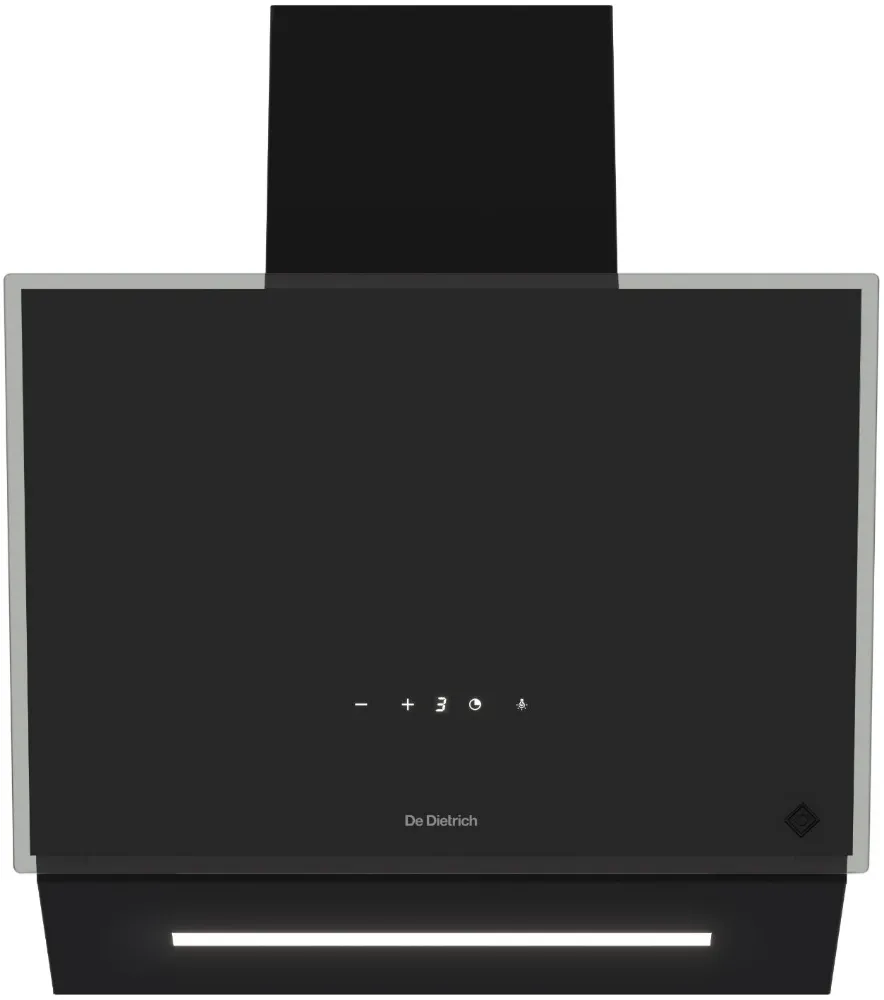

Decorative angled chimney hood, 60 cm wide
Color finish: Infinite Black (black glass)

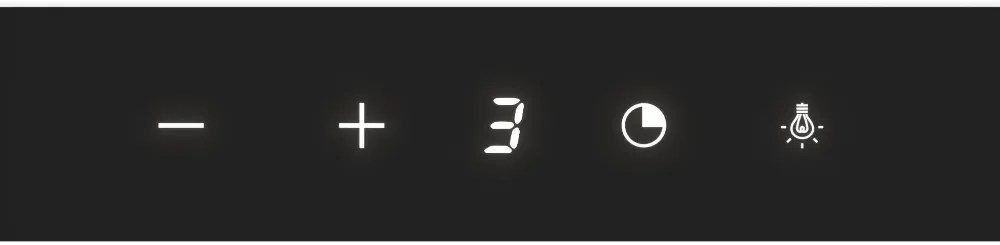

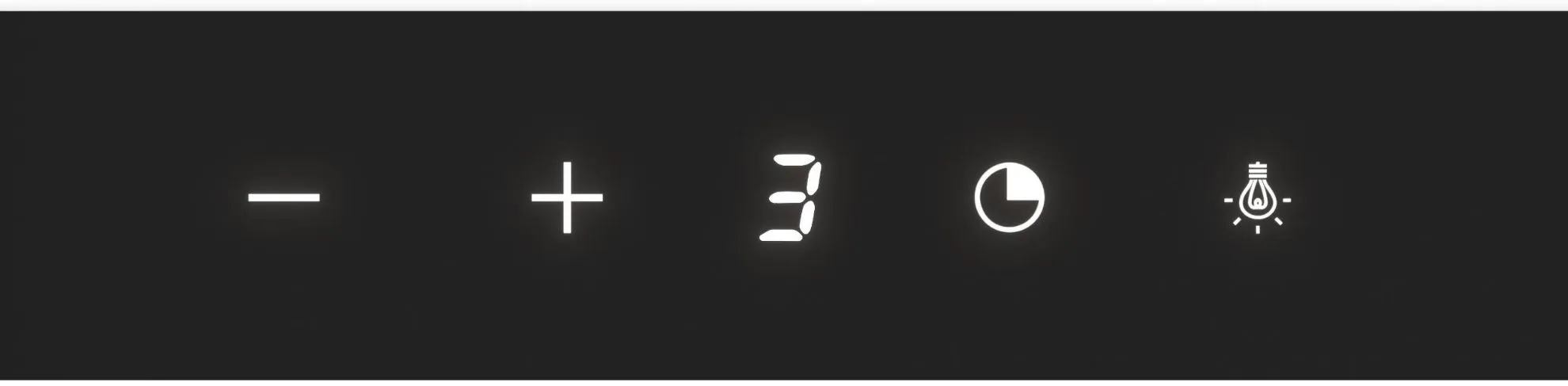

Touch control with display
4 extraction intensity levels including Boost function
Maximum extraction capacity: 745 m³/h
Noise level min./max.: 40/60 dB

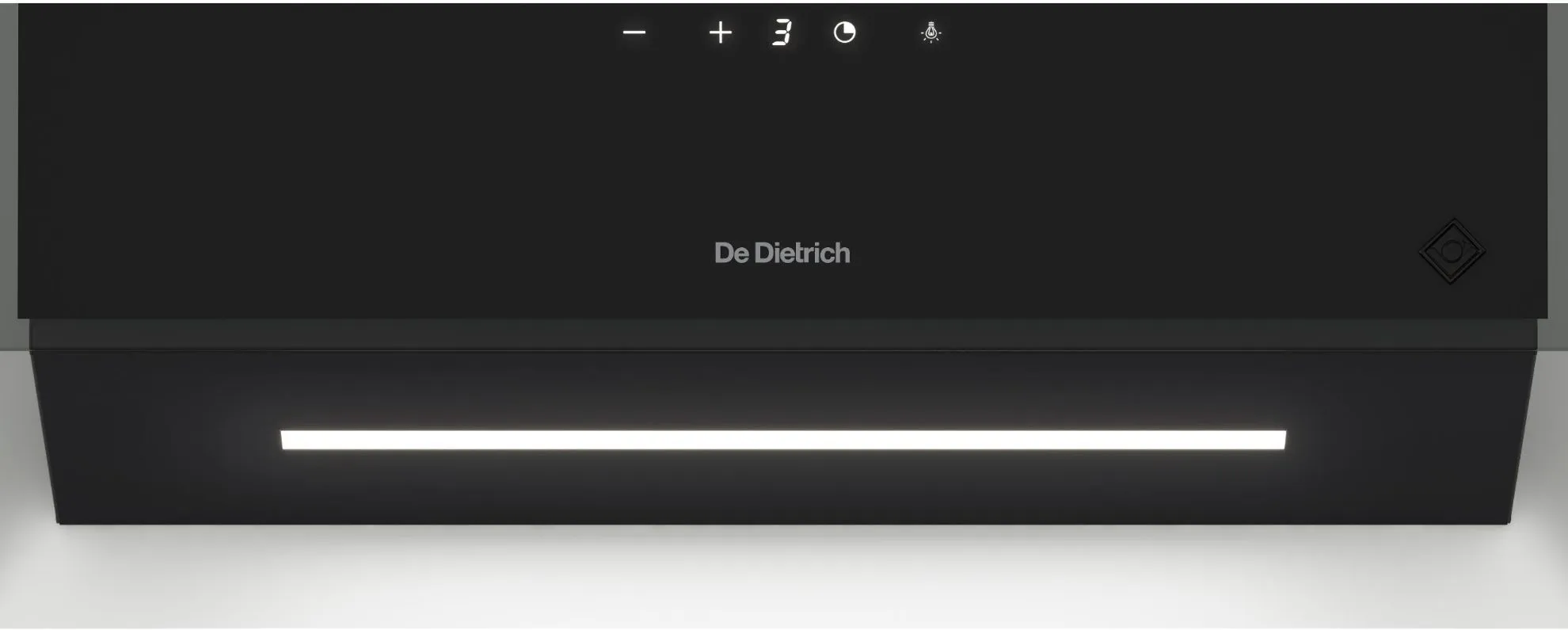

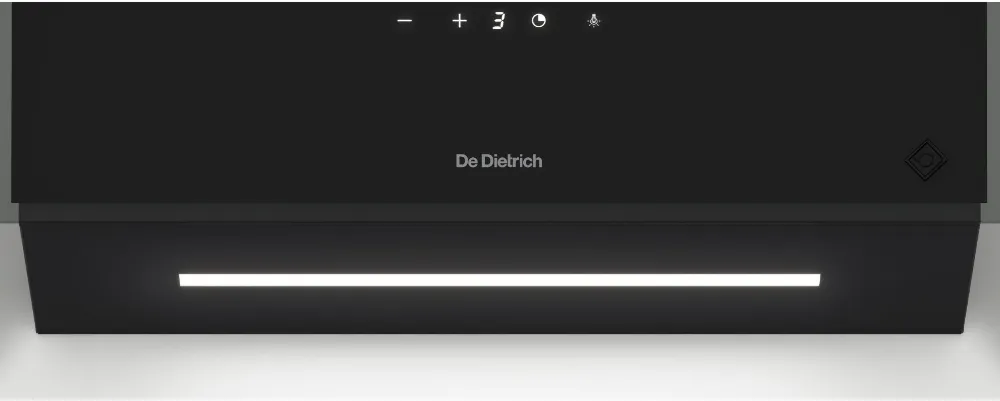

LED strip lighting with adjustable intensity and color
Delayed shutdown
Installation for extraction or recirculation
Energy class A+
Annual energy consumption: 33 kWh
Dimensions (HxWxD): 34.7 x 60 x 39.2 cm
€ 829,00
Wall-mounted decorative angled chimney hood, 60 cm wide; Color finish: Infinite Black (black glass); Brushless motor; 4 speeds including Boost; Touch control with illuminated buttons (white backlight); Features: Delayed shutdown; Maximum airflow: 745 m³/h; Noise level: 40-60 dB, BOOST: 69 dB; Energy efficiency class A+; 7W LED lighting with adjustable intensity and color options; 2 aluminum filters suitable for dishwasher cleaning; Backdraft damper included; Carbon filter FR-8705 not included; Operating mode: extraction or recirculation (default recirculation); Dimensions (HxWxD): 34.7 x 60 x 39.2 cm.
Use of cutting-edge technologies
At our store, you will find appliances with the latest technologies that are not only top-notch but also practical. We offer innovative solutions that combine advanced features with easy operation to make your culinary experiences more efficient and enjoyable.
Parameters
Basic parameters
Colour design
Černé
Number of power setting stages
4
Controls
Touch
Remote control
No
Display
Touch control with LED indicators
Lighting type
LED
The possibility of regulating the lighting temperature
Yes
Light intensity control
Yes
Quiet inverter motor
No
Minimum extraction power in standard mode
225 m3/h
Maximum extraction power in standard mode
550 m3/h
Power in Boost mode
745 m3/h
Minimum noise level in standard mode
40 dB(A)
Maximum noise level in standard mode
60 dB(A)
Noise level in Boost mode
69 dB(A)
Number of motors
1
Number of fans
1
Motor power
160 W
Number of lighting elements
1 ks
Total lighting power
7 W
Annual energy consumption of the refrigerator
33 kWh
Power supply
220-240 V / 50 Hz / 10 A
Functions
Extraction mode
Yes
Recirculation mode
Yes
Default mode
Recirculation
Boost function
Yes
Delayed shutdown
Yes
Automatic switch-on with steam sensor
No
Mobile phone control (with Android operating system)
No

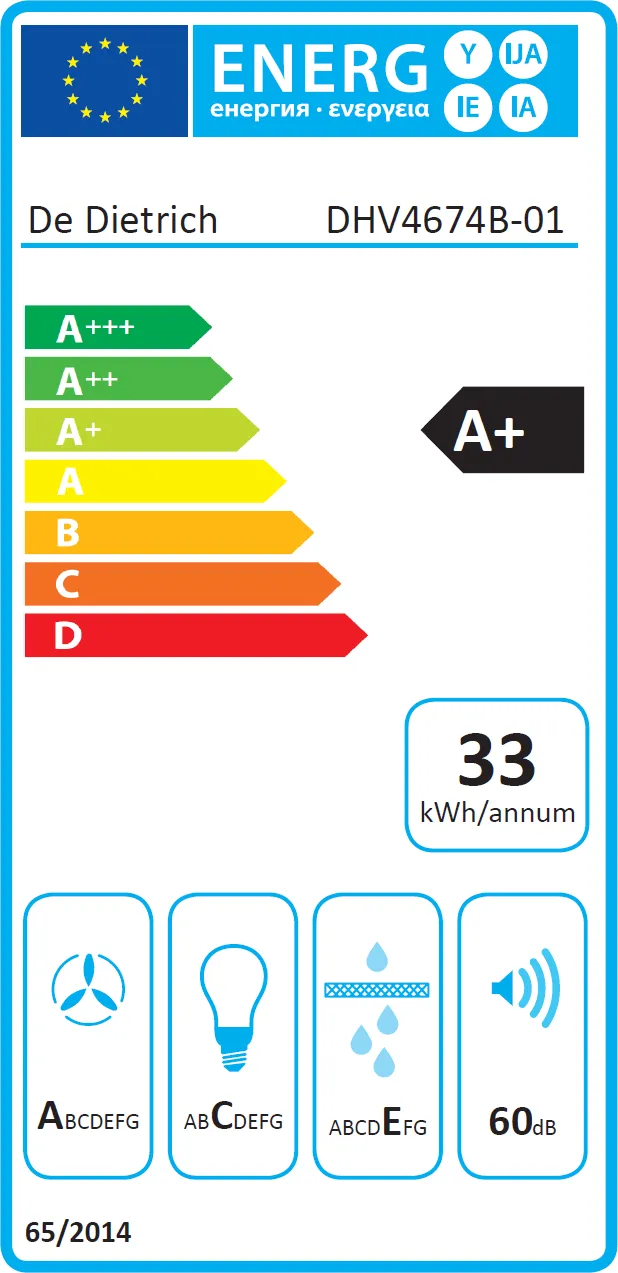

Energy label
Energy efficiency class
A+
Fluid flow efficiency class
A
Lighting efficiency class
C
Grease filtration efficiency class
E
Accessories
Number of grease filters
2
Design of grease filters
Hliník
Dishwasher safe grease filter
Yes
Carbon filter designation
FR-8705 (replacement for FWND185)
Number of carbon filters
2
Carbon filters included
No
Check valve included
Yes
Deflector included
No
Outlet pipe reducer
Yes
Appliance dimensions and weights
Maximum height
40 cm
Minimum chimney height
573 cm
Maximum chimney height
940 cm
Motor outlet diameter
15 cm
Air outlet diameter
15 cm
Dimensions in packaging (H x W x D)
50 x 70 x 50
Net / gross weight
15,6 / 21,2
Width
60 cm
Height
34,7 cm
Depth
39,2 cm
Weight
15,6 kg
Width in package
50 cm
Height in package
70 cm
Depth in package
50 cm
Weight in package
21,2 kg
