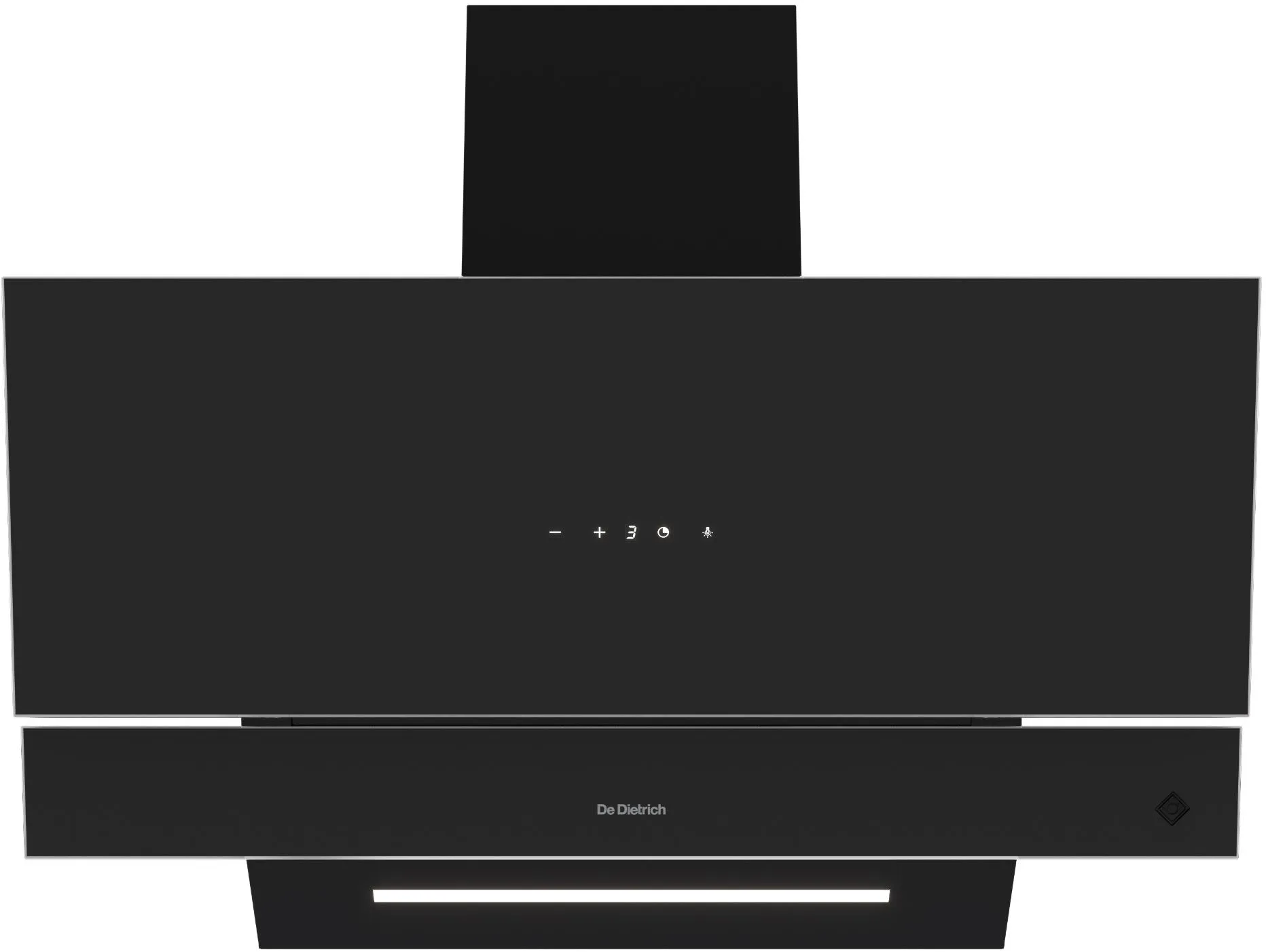

CHIMNEY HOOD DHV4973PB
Product code: DHV4973PB
Elmax code: 106498

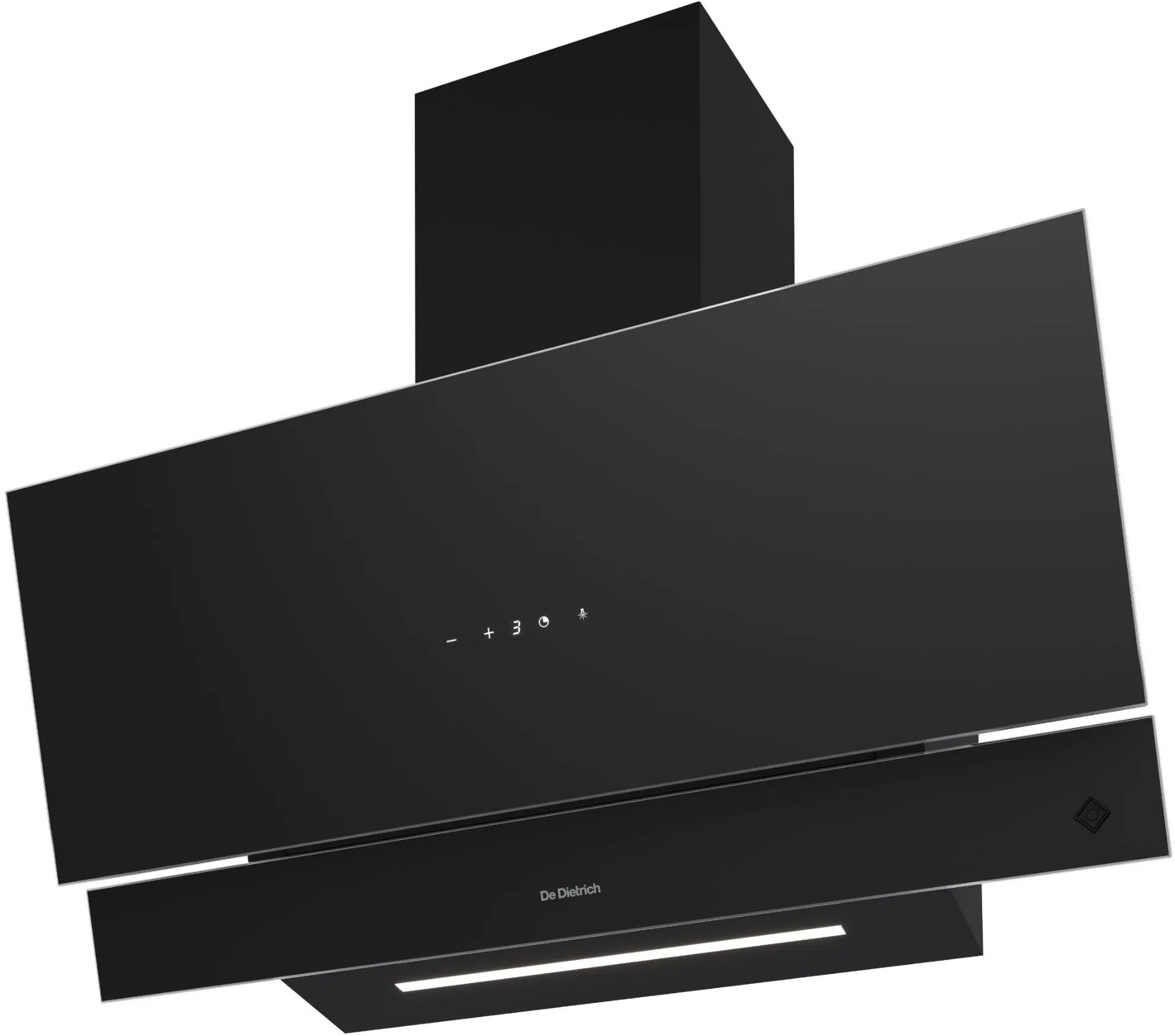

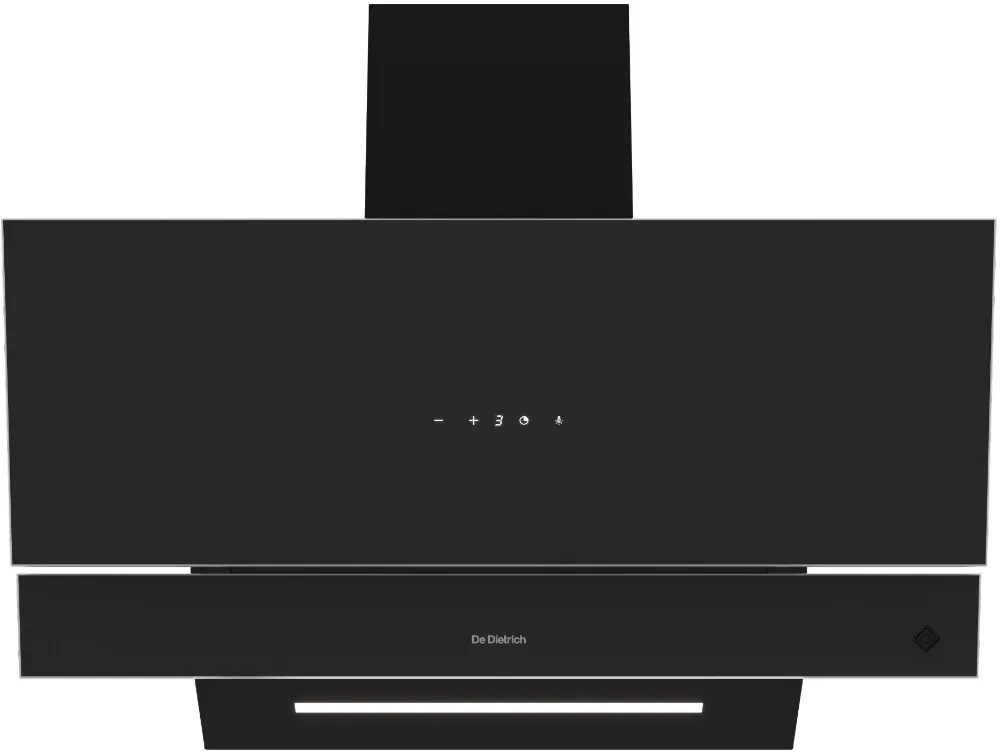

Decorative slanted chimney extractor
Color version: Infinite Black

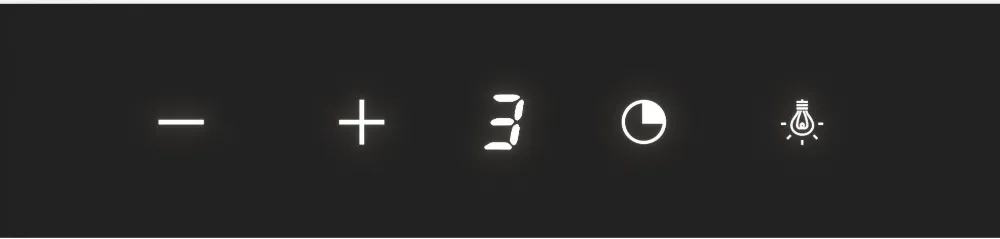

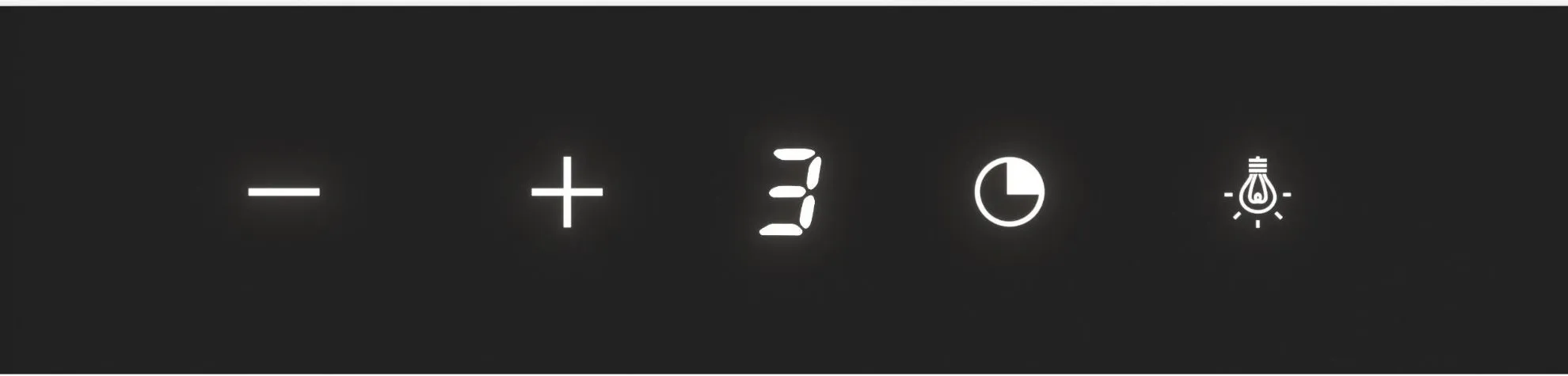

Touch control with a display
4 levels of suction intensity including the Boost function

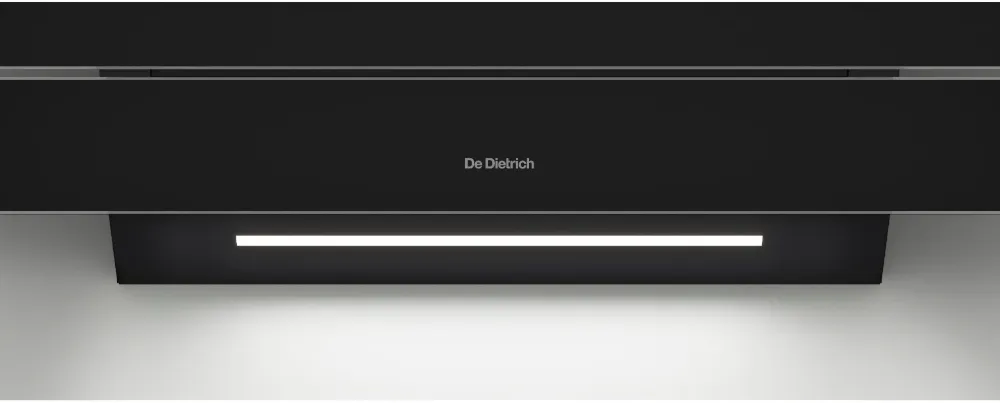

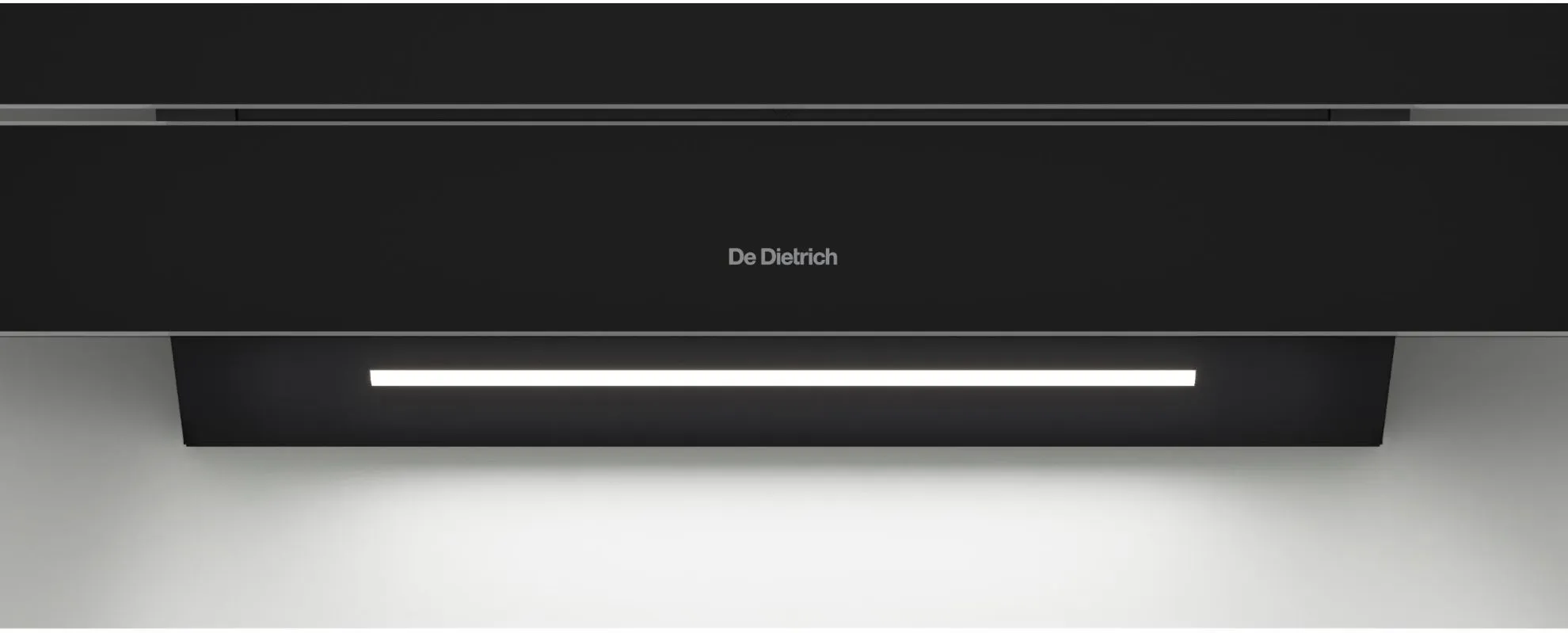

LED strip lighting with the ability to adjust the intensity of the light
Delayed shutdown
Installation for extraction or recirculation

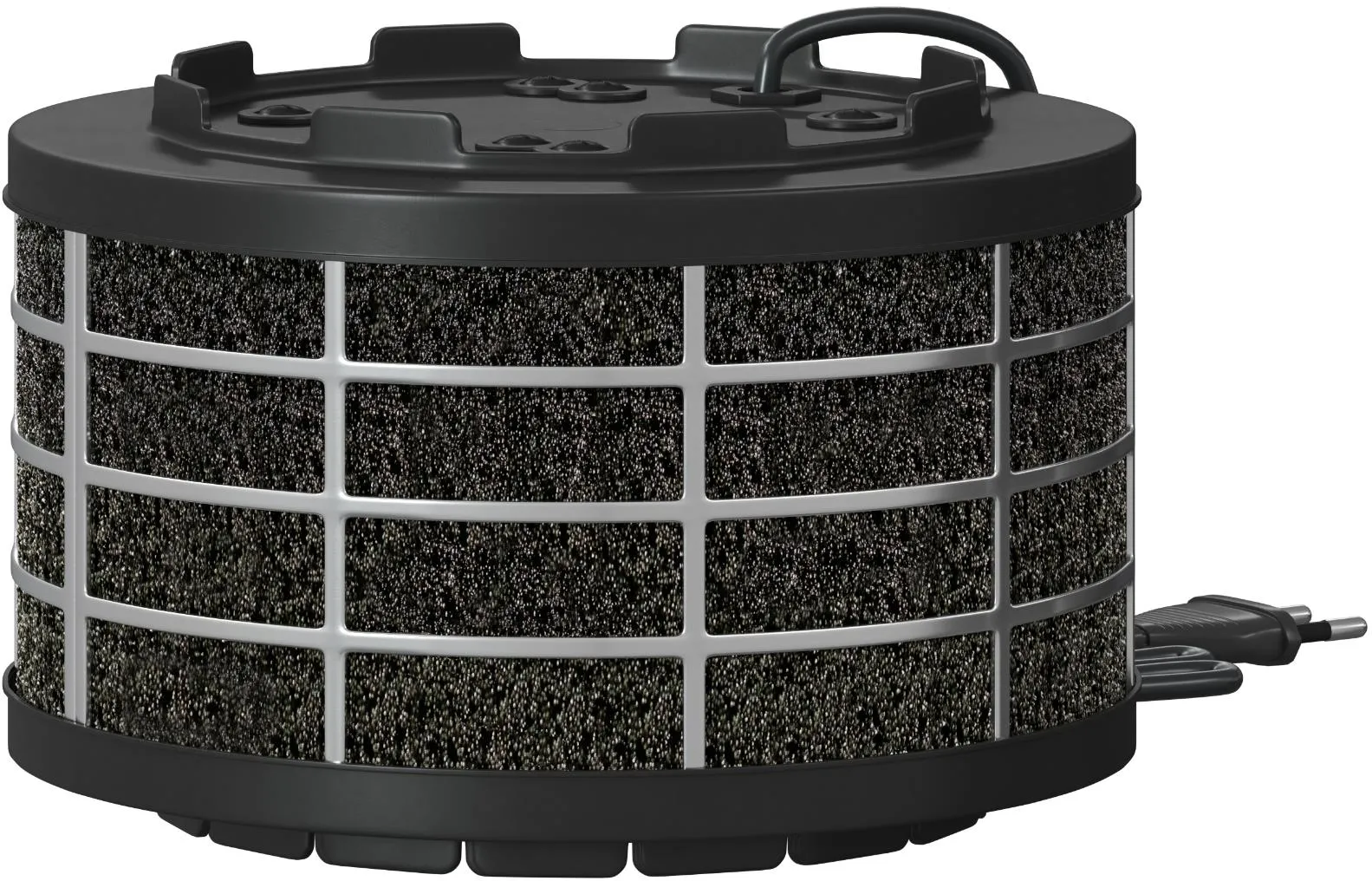

Plasma filter – replacement for carbon filters
Maximum extraction power: 730 m3/hour
Noise min./max.: 40/60 dB(A)
Energy class A+
Annual energy consumption: 36,3 kWh
Dimensions (HxWxD): 34,6 x 90 x 38,5 cm
€ 1,799.00

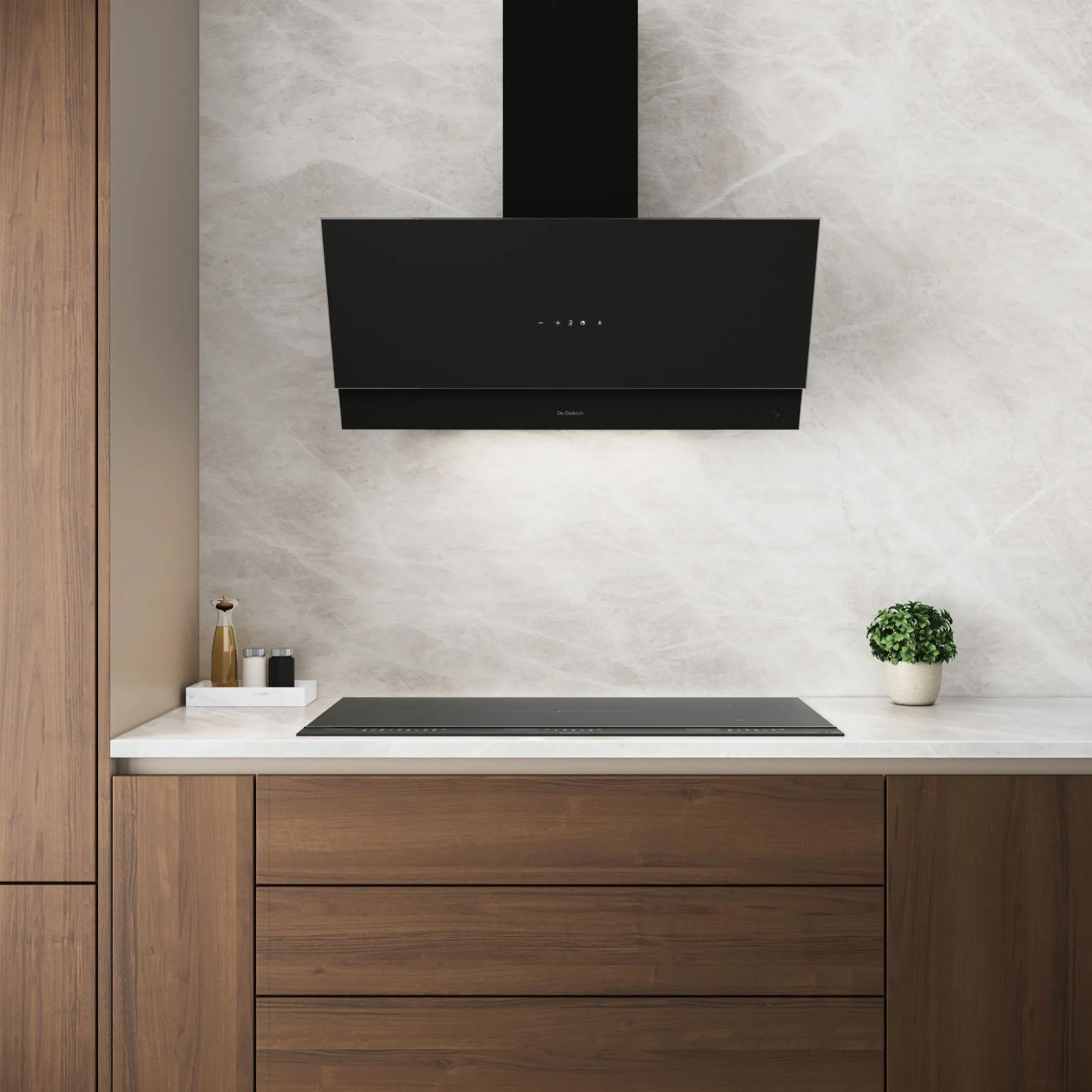

Wall-mounted decorative inclined chimney cooker hood, 90 cm wide; Color finish Infinite Black (black glass); 1 motor; 1 fan; 4 speeds including Boost; Touch control with backlit buttons (white backlight); Functions: Delayed shutdown; Maximum extraction rate 730 m3/h; Noise level 40-60 dB(A), BOOST: 69 dB(A); Energy efficiency class A+; 7W LED lighting with adjustable light intensity; 2 aluminum filters dishwasher safe; Backdraft damper included; Plasma filter; Operating mode: extraction or recirculation (default recirculation); Dimensions (HxWxD): 34.6 x 90 x 38.5 cm.
Use of cutting-edge technologies
At our store, you will find appliances with the latest technologies that are not only top-notch but also practical. We offer innovative solutions that combine advanced features with easy operation to make your culinary experiences more efficient and enjoyable.
Parameters
Basic parameters
Colour design
Černé
Number of power setting stages
4
Controls
Touch
Remote control
No
Display
Touch control with LED indicators
Lighting type
LED
The possibility of regulating the lighting temperature
No
Light intensity control
Yes
Quiet inverter motor
No
Minimum extraction power in standard mode
220 m3/h
Maximum extraction power in standard mode
540 m3/h
Power in Boost mode
730 m3/h
Minimum noise level in standard mode
40 dB(A)
Maximum noise level in standard mode
60 dB(A)
Noise level in Boost mode
69 dB(A)
Number of motors
1
Number of fans
1
Motor power
160 W
Number of lighting elements
1 ks
Total lighting power
7 W
Annual energy consumption of the refrigerator
36.3 kWh
Power supply
220-240 V / 50 Hz / 10 A
Functions
Extraction mode
Yes
Recirculation mode
Yes
Default mode
Recirculation
Boost function
Yes
Delayed shutdown
Yes
Automatic switch-on with steam sensor
No
Mobile phone control (with Android operating system)
No

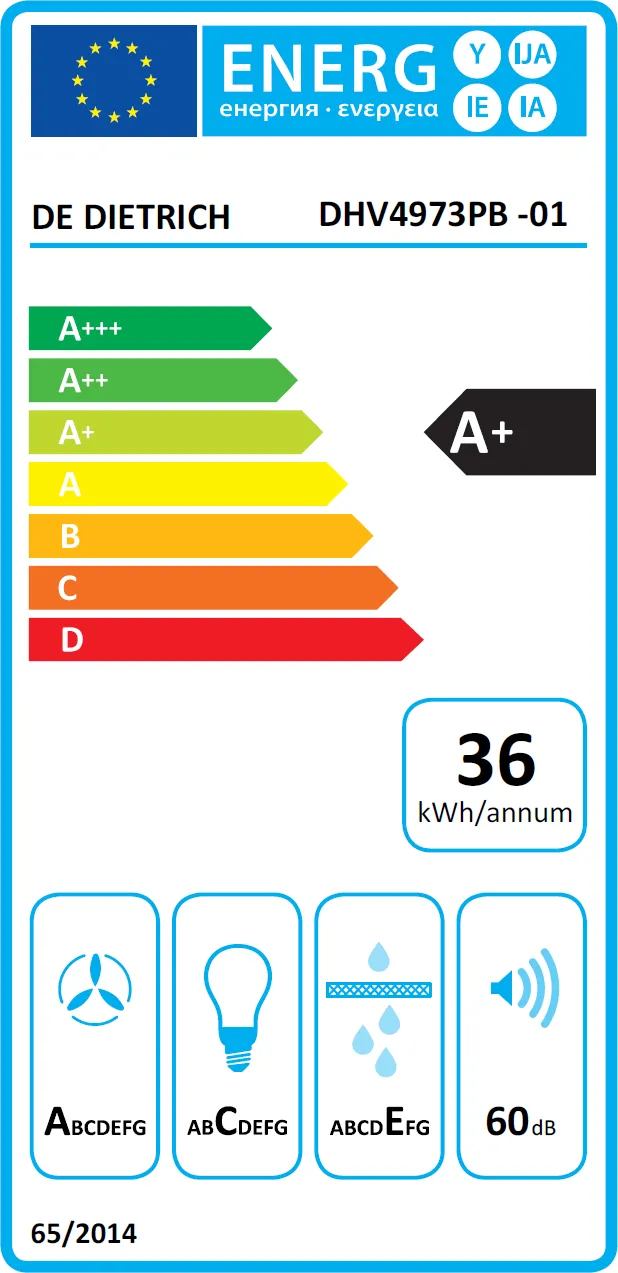

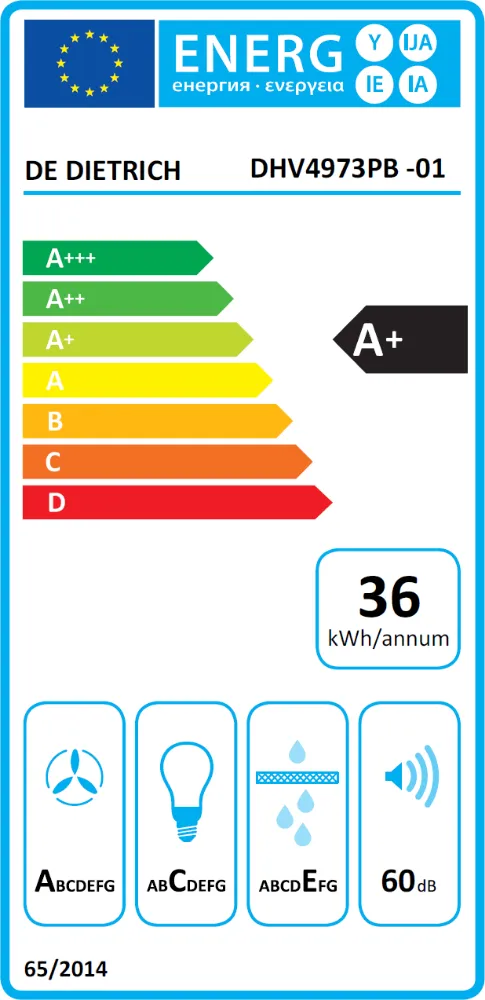

Energy label
Energy efficiency class
A+
Fluid flow efficiency class
A
Lighting efficiency class
C
Grease filtration efficiency class
E
Accessories
Number of grease filters
2
Design of grease filters
Hliník
Dishwasher safe grease filter
Yes
Check valve included
Yes
Deflector included
No
Appliance dimensions and weights
Maximum height
40 cm
Minimum chimney height
57.4 cm
Maximum chimney height
94.1 cm
Motor outlet diameter
15 cm
Air outlet diameter
15 cm
Dimensions in packaging (H x W x D)
48 x 100 x 48
Net / gross weight
19,9 / 23,4
Width
90 cm
Height
34.6 cm
Depth
38.5 cm
Weight
19.9 kg
Width in package
100 cm
Height in package
48 cm
Depth in package
48 cm
Weight in package
23.4 kg
