Ciarko Design

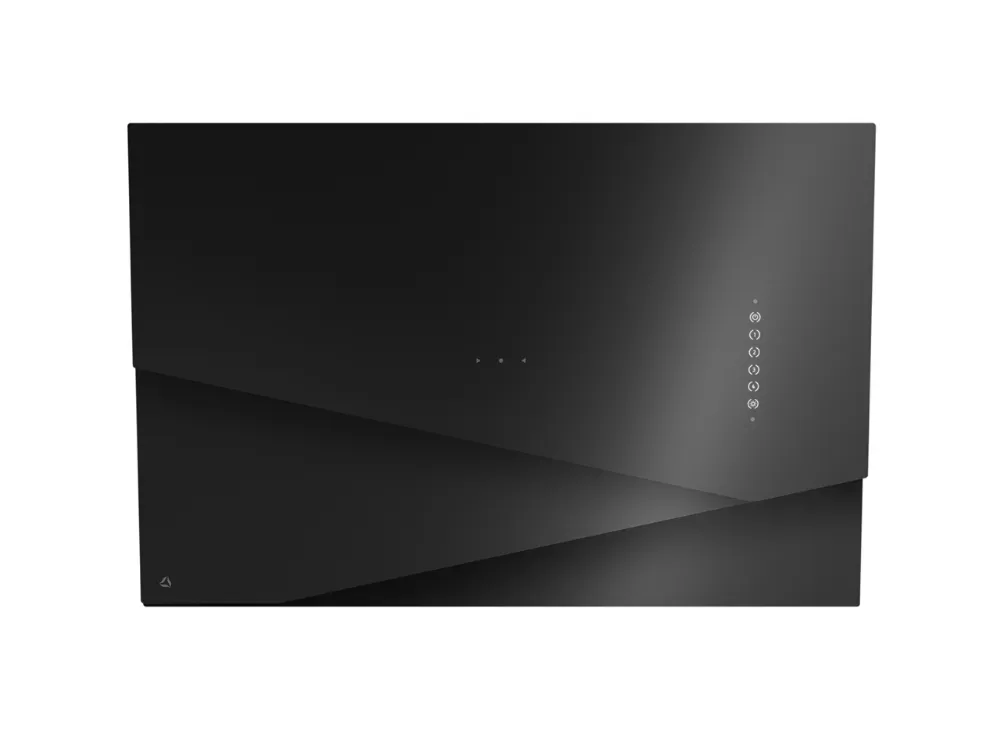

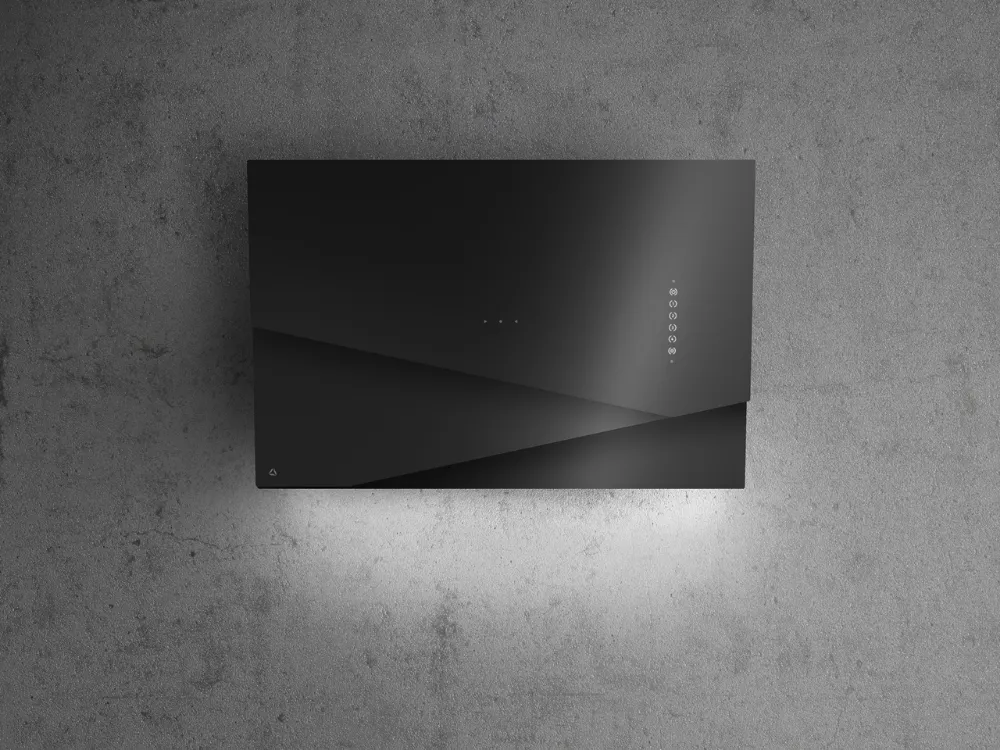

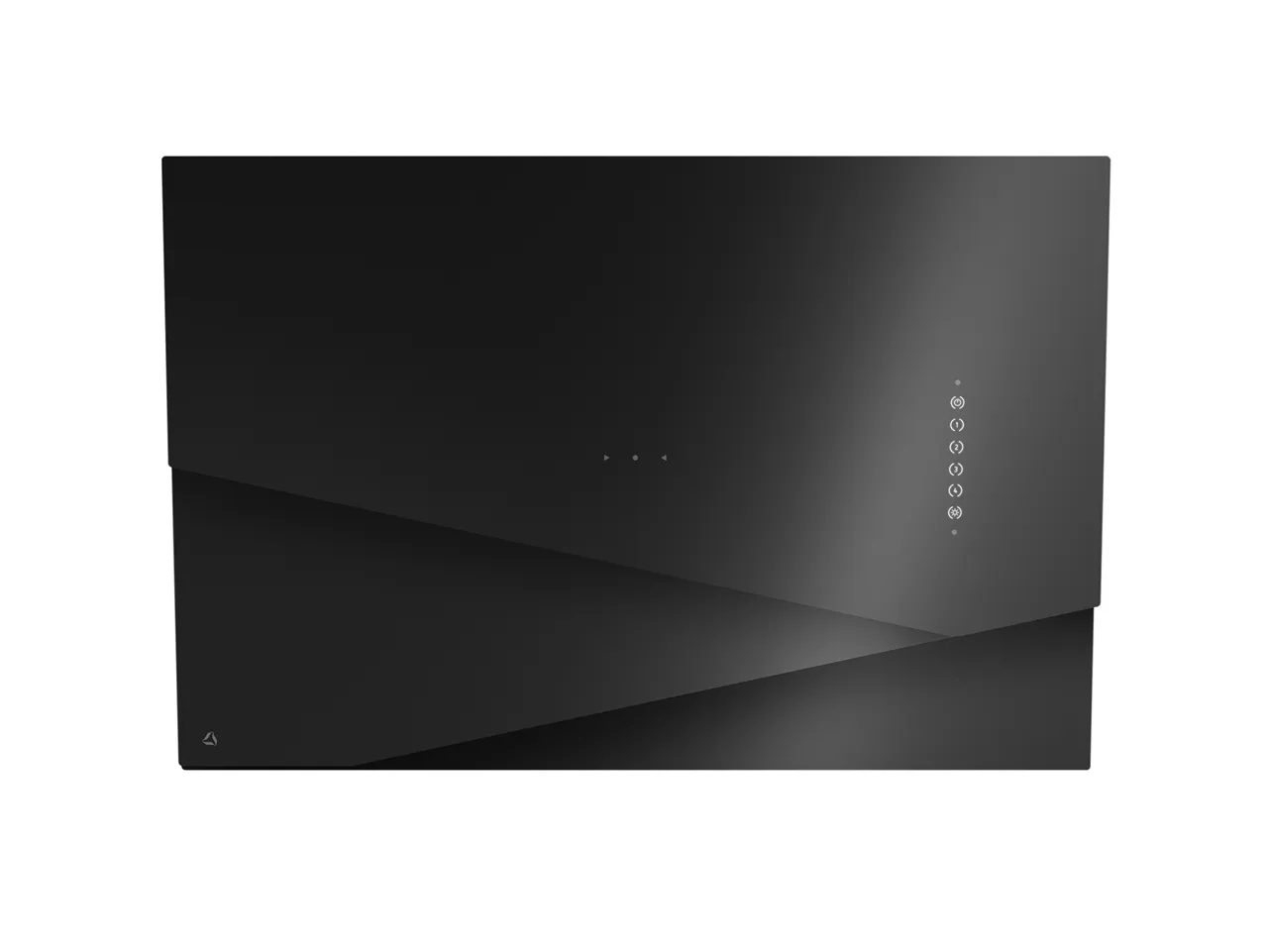

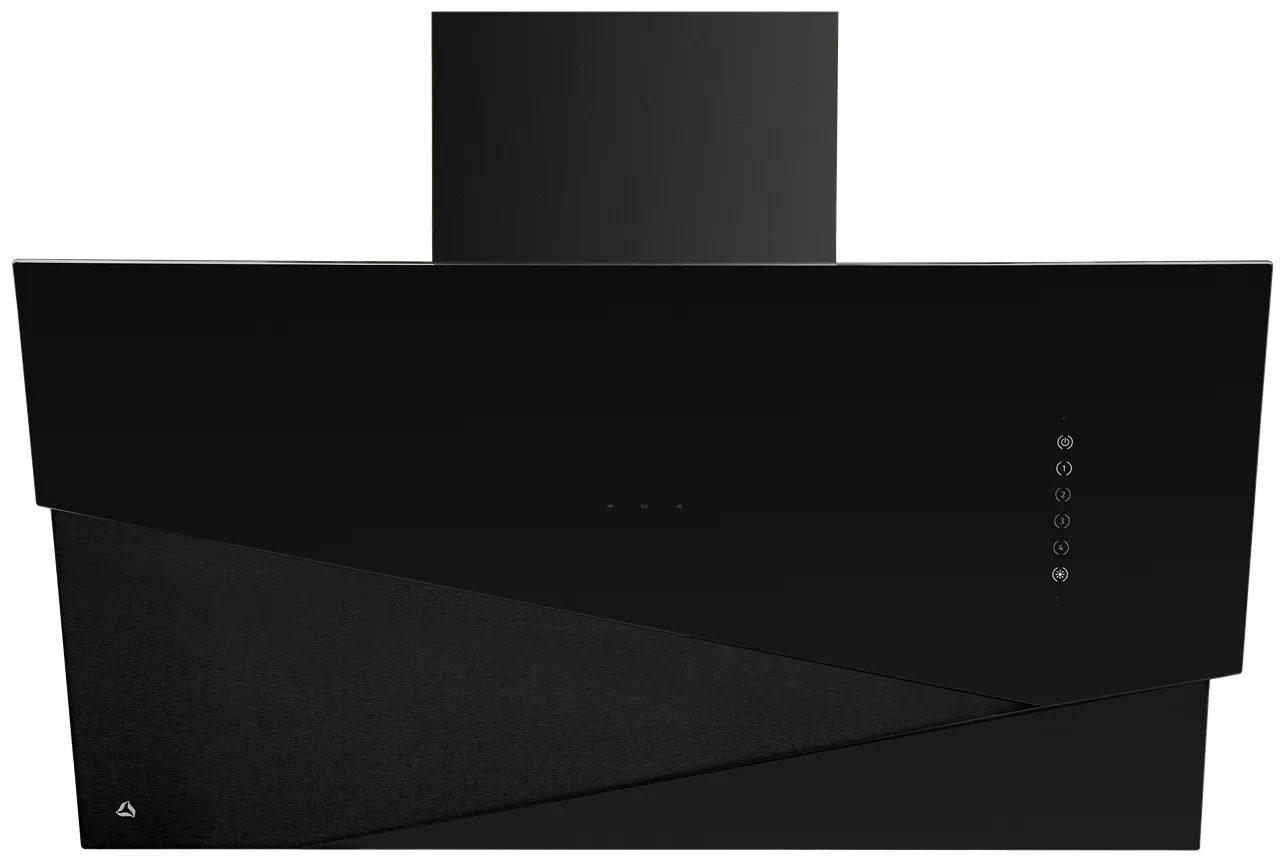

Chimney hood Trio Black (CDP9001CC)

Product code: CDP9001CC
Elmax code: 86391
Color: black glass + black matte metal
Width 90 cm
Optional rear outlet
Highly energy-efficient class A++
Quiet, powerful, and reliable inverter motor

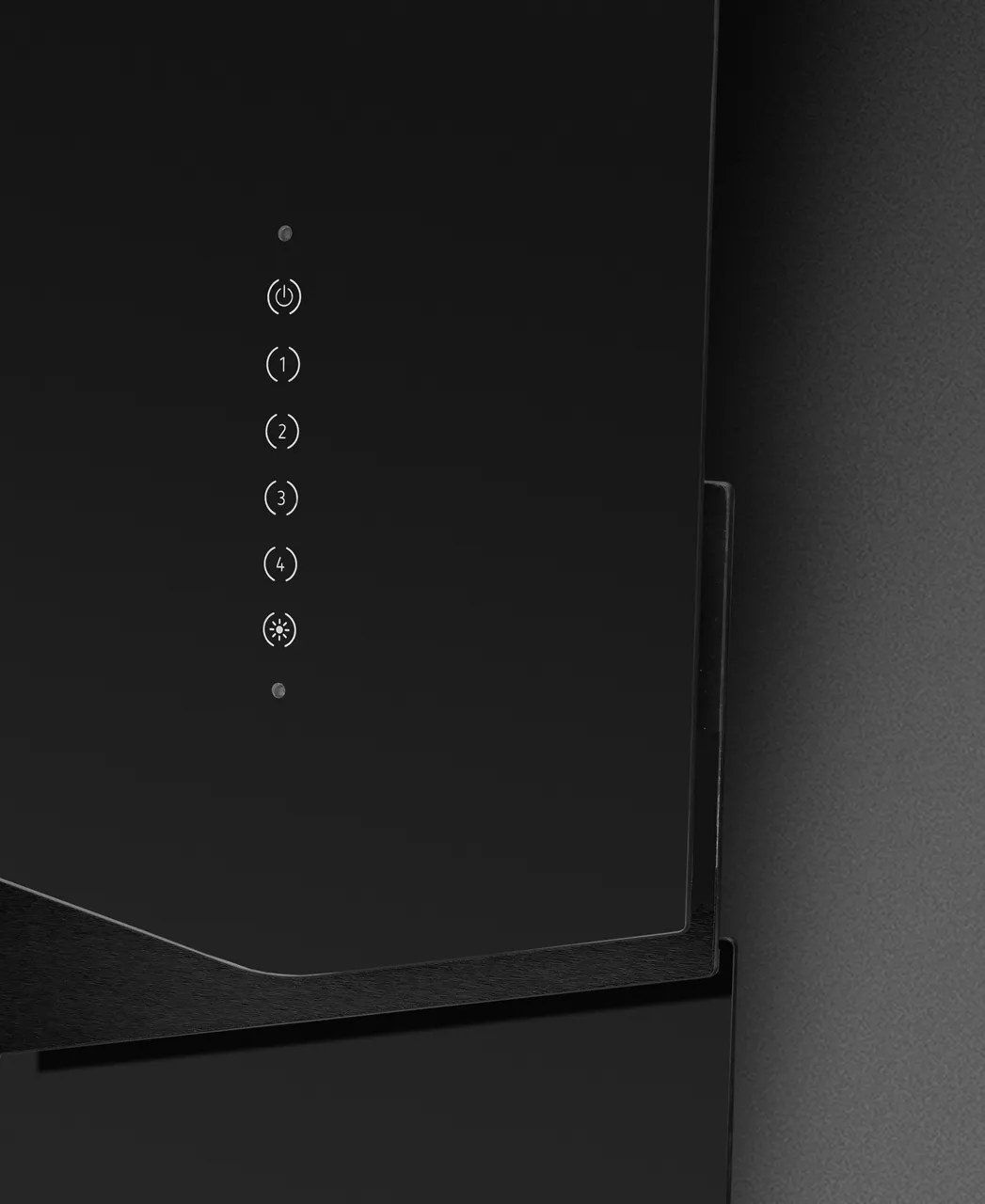

Touchless hand gesture control + remote control
4 extraction intensity levels including BOOST

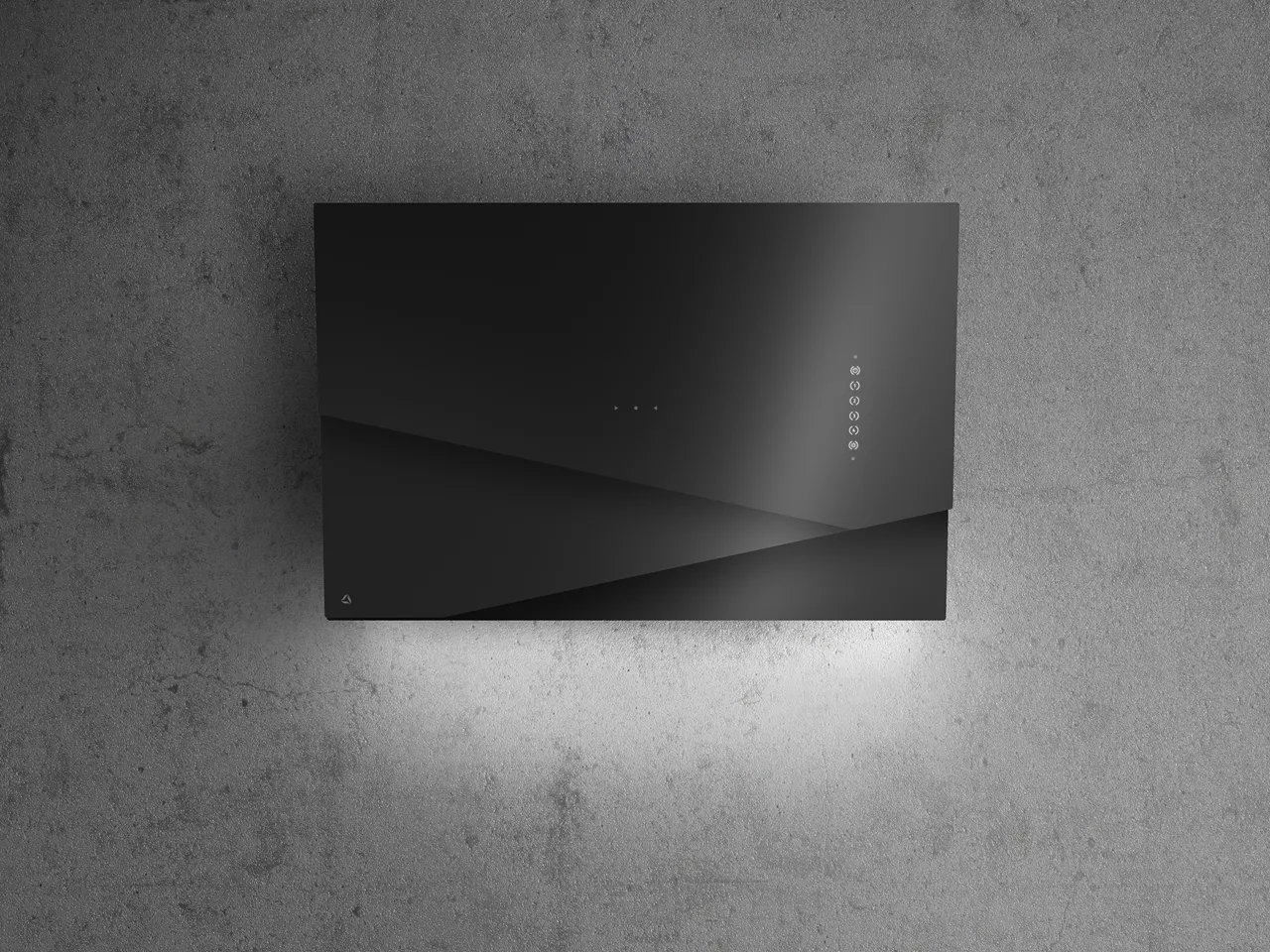

LED strip with adjustable light temperature and intensity, and motion sensor for light activation
Extraction performance in standard mode: 220 - 520 m3/h (730 m3/h in BOOST)
Noise level in standard mode: 45 - 62 dB(A)
Annual energy consumption 31 kWh/a

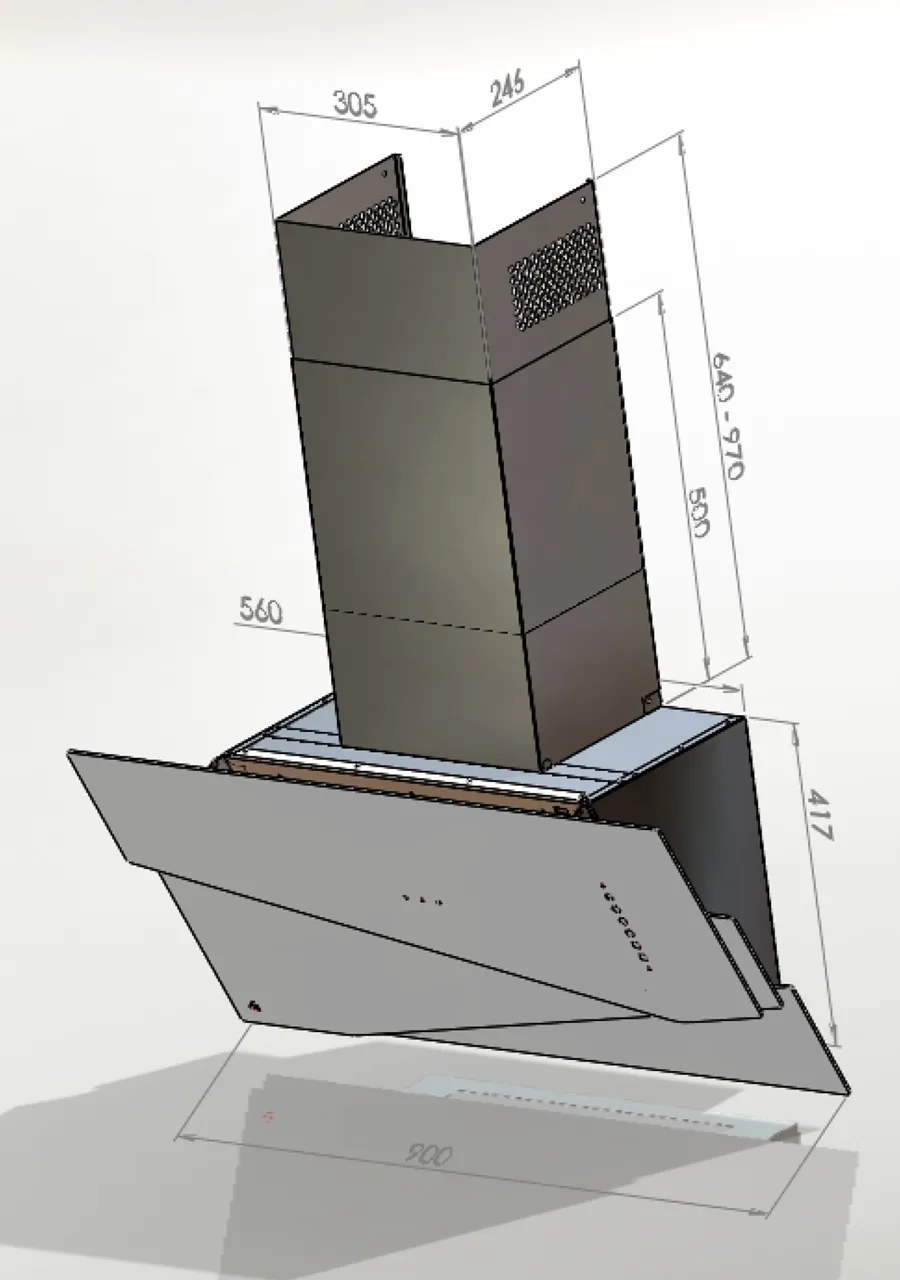

Dimensions (WxDxH): 900 x 403 x 417 mm, chimney height 640 - 970 mm

The Trio range of angled hoods was inspired by Constructivism in 20th-century art and the interplay of simple geometric forms. The appliance's design, enclosed in a body combining glass and metal structures, perfectly aligns with the latest design trends. The Trio cooker hood is equipped with energy-saving WarmLED lighting, which can be adjusted from cool to warm tones, thus better illuminating the workspace and adding another decorative element to the kitchen. Intuitive gesture control, automatic light on/off, timer, and quick ventilation function ensure convenient operation and easy time programming.

The angled hood Trio Black from the premium line of design hoods by Ciarko Design, black glass + black matte metal finish, 90 cm width, quiet, powerful and reliable inverter motor, touchless hand gesture control + remote control, motion sensor for light activation, colored LED diodes indicating the current power setting, 3 power levels + BOOST mode, extraction capacity in standard mode 220 - 520 m3/h, extraction capacity in BOOST mode 730 m3/h, noise level in standard mode 45-62 dB(A), noise level in BOOST mode 70 dB(A), annual energy consumption 31 kWh/a, energy class A++ (energy label A++,A,A,D), LED strip with adjustable light temperature and intensity (7 W output), activated carbon filter for recirculation mode: 2 x FR-6299 (replacement for FWK280), optional rear outlet, dimensions without chimney (H x W x D): 417 x 900 x 403 mm, chimney height 640-970 mm, weight: 22.7 kg

Use of cutting-edge technologies

At our store, you will find appliances with the latest technologies that are not only top-notch but also practical. We offer innovative solutions that combine advanced features with easy operation to make your culinary experiences more efficient and enjoyable.
Parameters
Basic parameters
Colour design
Černý matný kov s černým sklem
Marketing name
Trio Black
Number of power setting stages
4
Controls
Non-contact hand gesture control
Remote control
Yes
Display
No
Lighting type
LED strip (7 W)
The possibility of regulating the lighting temperature
Yes
Light intensity control
Yes
Light switch with motion sensor
Yes
Decorative lighting
No
Quiet inverter motor
Yes
Minimum extraction power in standard mode
220 m3/h
Maximum extraction power in standard mode
520 m3/h
Power in Boost mode
730 m3/h
Minimum noise level in standard mode
45 dB(A)
Maximum noise level in standard mode
64 dB(A)
Noise level in Boost mode
70 dB(A)
Number of motors
1
Number of fans
1
Total power consumption
167 W
Number of lighting elements
1 ks
Total lighting power
7 W
Annual energy consumption of the refrigerator
31 kWh
Standby power consumption
0,45 W
Power supply
220-240 V / 50 Hz / 10 A
Functions
Extraction mode
Yes
Recirculation mode
Yes
Default mode
Exhaust
Boost function
Yes
Delayed shutdown
Yes
Automatic switch-on with steam sensor
No
Air cleaning
No
Mobile phone control (with Android operating system)
No
Energy label
Energy efficiency class
A++
Fluid flow efficiency class
A
Fluid flow efficiency
37,8
Lighting efficiency class
A
Lighting efficiency
29 lux/W
Grease filtration efficiency class
D
Grease filtration efficiency
66 %
Accessories
Number of grease filters
1
Design of grease filters
Hliníkový
Dishwasher safe grease filter
Yes
Carbon filter designation
FR-6299 (replacement for FWK280)
Number of carbon filters
2
Carbon filters included
No
Check valve included
No
Deflector included
No
Outlet pipe reducer
No

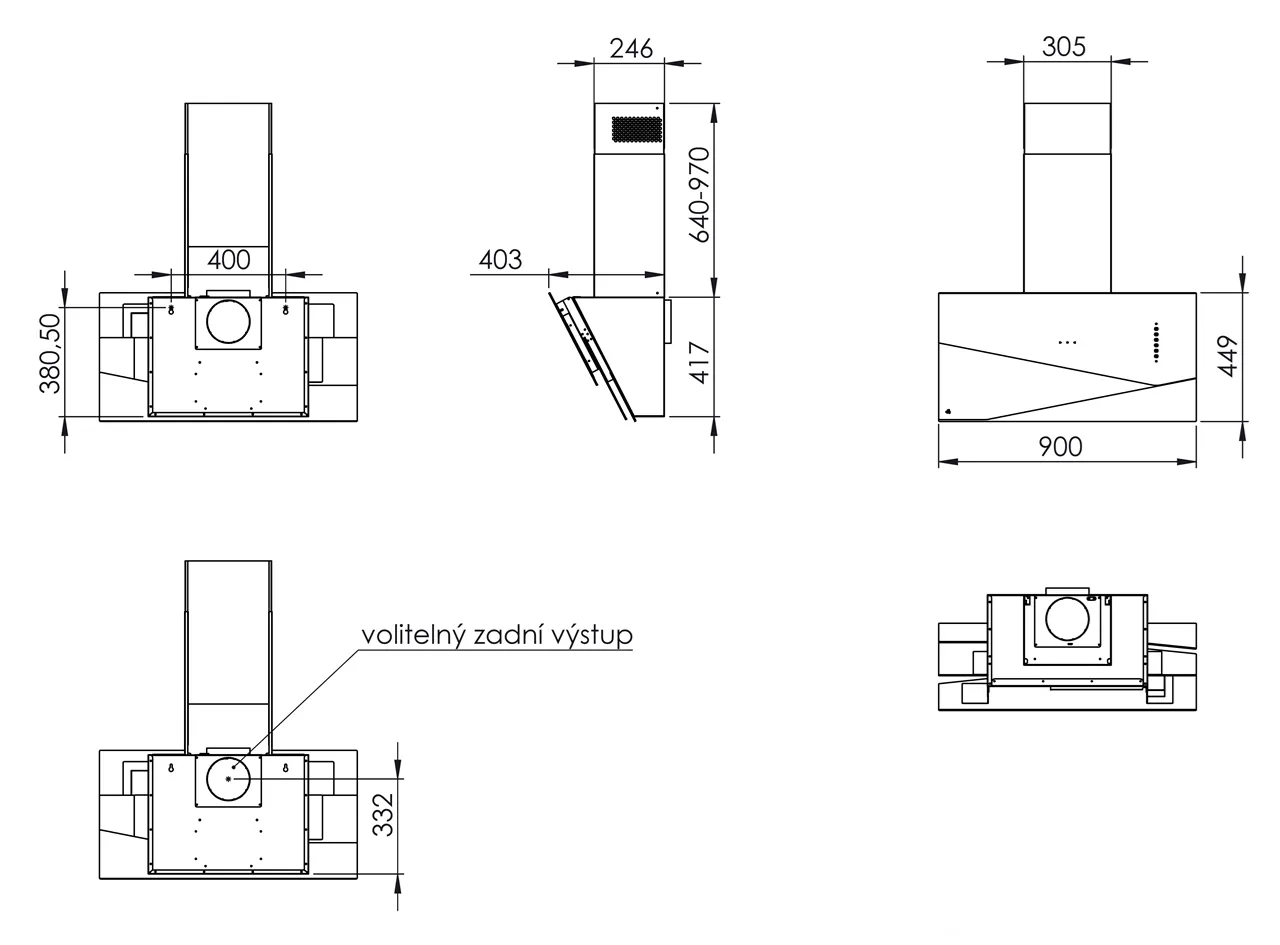

Appliance dimensions and weights
Minimum chimney height
62 cm
Maximum chimney height
97 cm
Min. distance between hood and electric hob
55 cm
Min. distance between hood and gas hob
65 cm
Motor outlet diameter
15 cm
Air outlet diameter
15 cm
Width
90 cm
Height
41,7 cm
Depth
40,3 cm
Weight
22,7 kg
Width in package
100 cm
Height in package
56 cm
Depth in package
50 cm
Weight in package
25 kg
