Ciarko Design

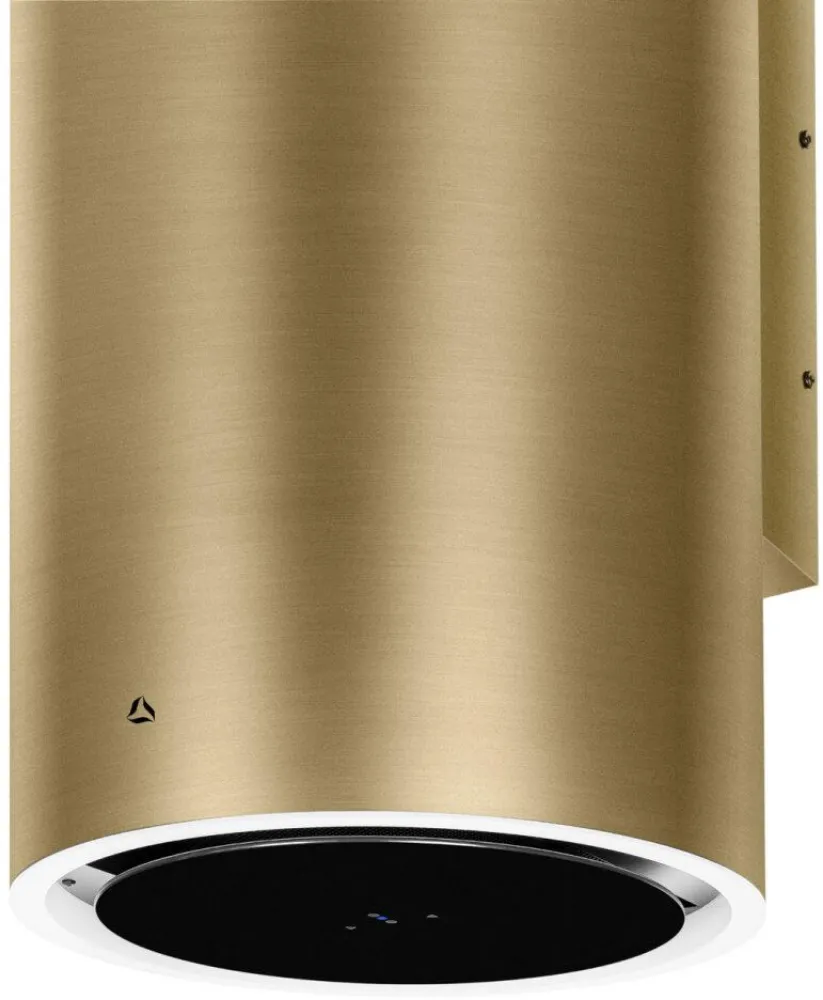

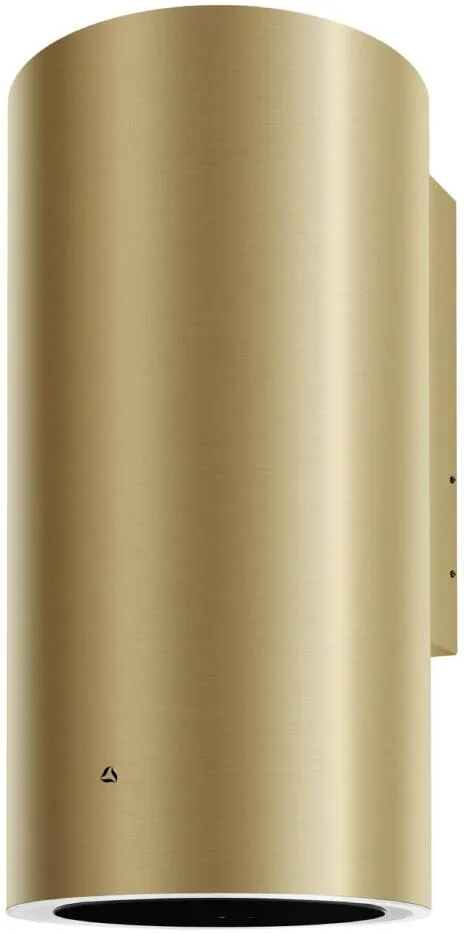

Chimney hood Tubus Gold Steel (CDP3801GS)

Product code: CDP3801GS
Elmax code: 104187
Color: matte gold metal
Diameter of the extractor tube: 38.2 cm
Energy-saving class A+
Quiet, powerful, and reliable inverter motor
Touchless hand gesture control + remote control
LED strip around with adjustable light intensity and temperature
4 extraction intensity levels including BOOST
Extraction performance in standard mode: 160 - 370 m3/h (670 m3/h in BOOST)
Noise level in standard mode: 39 - 56 dB(A)
Annual energy consumption 33.8 kWh

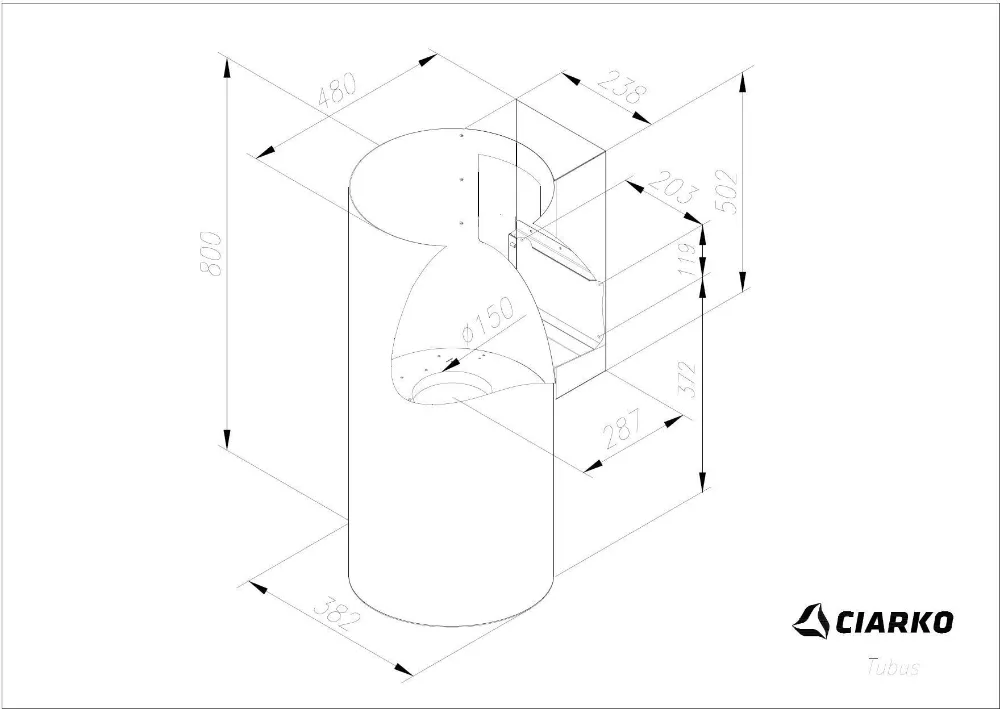

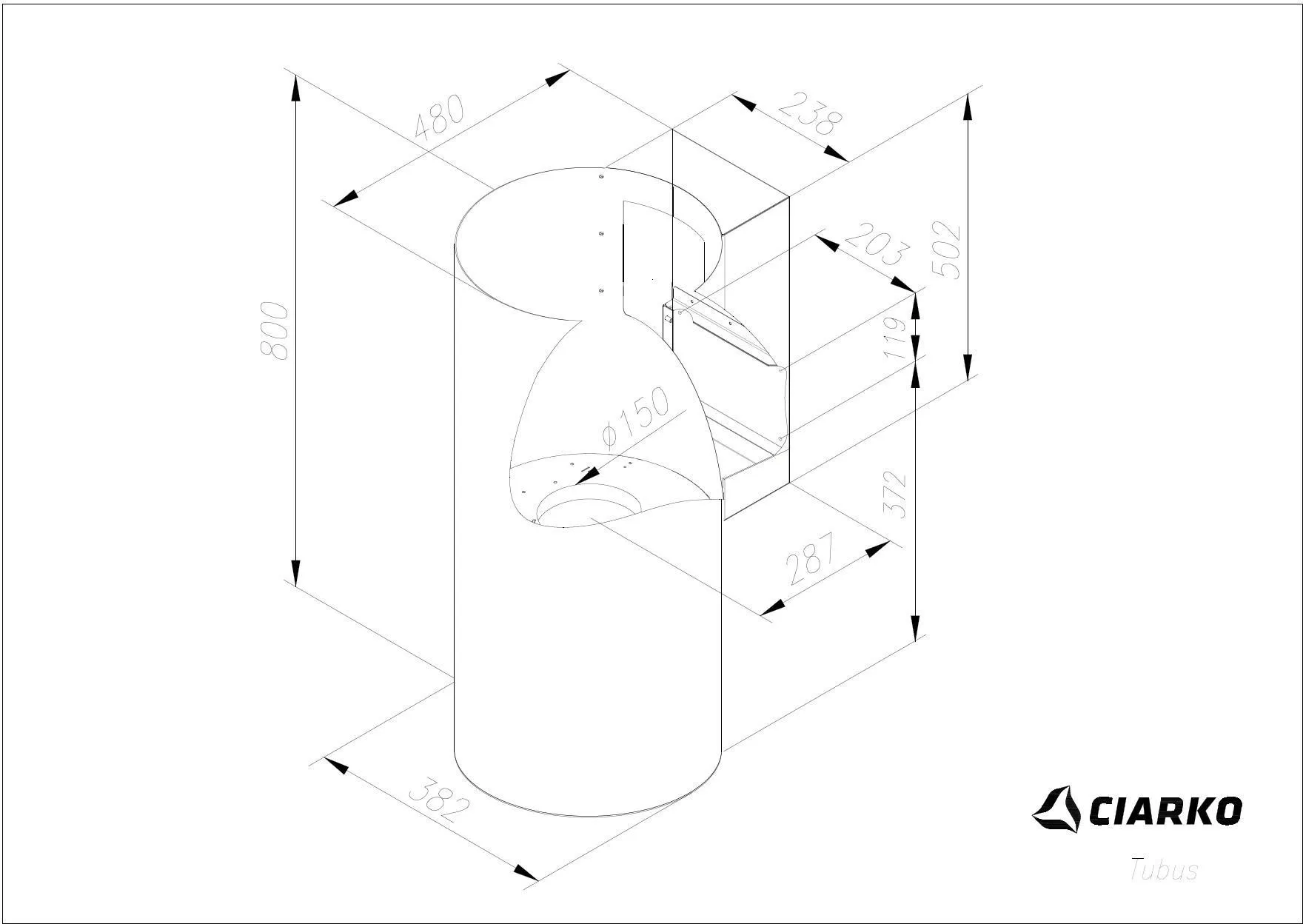

Dimensions (HxW): 80.0 x 38.2 cm, depth with chimney 48.0 cm
Colour design
€ 1 159,00

Chimney hood Tubus Gold Steel from the premium range of Ciarko Design designer hoods, made of matte gold-colored metal, diameter 38.2 cm, quiet, powerful, and reliable inverter motor, touchless hand gesture control + remote control, LED display, 3 performance levels + BOOST mode, extraction performance in standard mode 160-370 m3/h, extraction performance in BOOST mode 670 m3/h, noise level in standard mode 39-56 dB(A), noise level in BOOST mode 69 dB(A), annual energy consumption 33.8 kWh/a, energy class A+ (energy label A+,A,A,D), LED strip around the perimeter with adjustable intensity and light temperature, active carbon filter (not included) for recirculation mode FR-7258 (replacement for FWK228), dimensions (H x W): 80.0 x 38.2 cm, depth with chimney 48.0 cm

Use of cutting-edge technologies

At our store, you will find appliances with the latest technologies that are not only top-notch but also practical. We offer innovative solutions that combine advanced features with easy operation to make your culinary experiences more efficient and enjoyable.
Parameters
Basic parameters
Colour design
Matný kov v ocelově zlaté barvě
Marketing name
Tubus Gold Steel
Number of power setting stages
4
Controls
Non-contact hand gesture control
Remote control
Yes
Display
LED
Lighting type
LED strip around the perimeter (8 W)
The possibility of regulating the lighting temperature
Yes
Light intensity control
Yes
Quiet inverter motor
Yes
Minimum extraction power in standard mode
160 m3/h
Maximum extraction power in standard mode
370 m3/h
Power in Boost mode
670 m3/h
Minimum noise level in standard mode
39 dB(A)
Maximum noise level in standard mode
56 dB(A)
Noise level in Boost mode
69 dB(A)
Number of motors
1
Number of fans
1
Total power consumption
168 W
Motor power
160 W
Number of lighting elements
1 ks
Total lighting power
8 W
Annual energy consumption of the refrigerator
33,8 kWh
Standby power consumption
0,45 W
Power supply
220-240 V / 50 Hz / 10 A
Functions
Extraction mode
Yes
Recirculation mode
Yes
Default mode
Exhaust
Boost function
Yes
Delayed shutdown
Yes
Automatic switch-on with steam sensor
No
Air cleaning
No
Mobile phone control (with Android operating system)
No

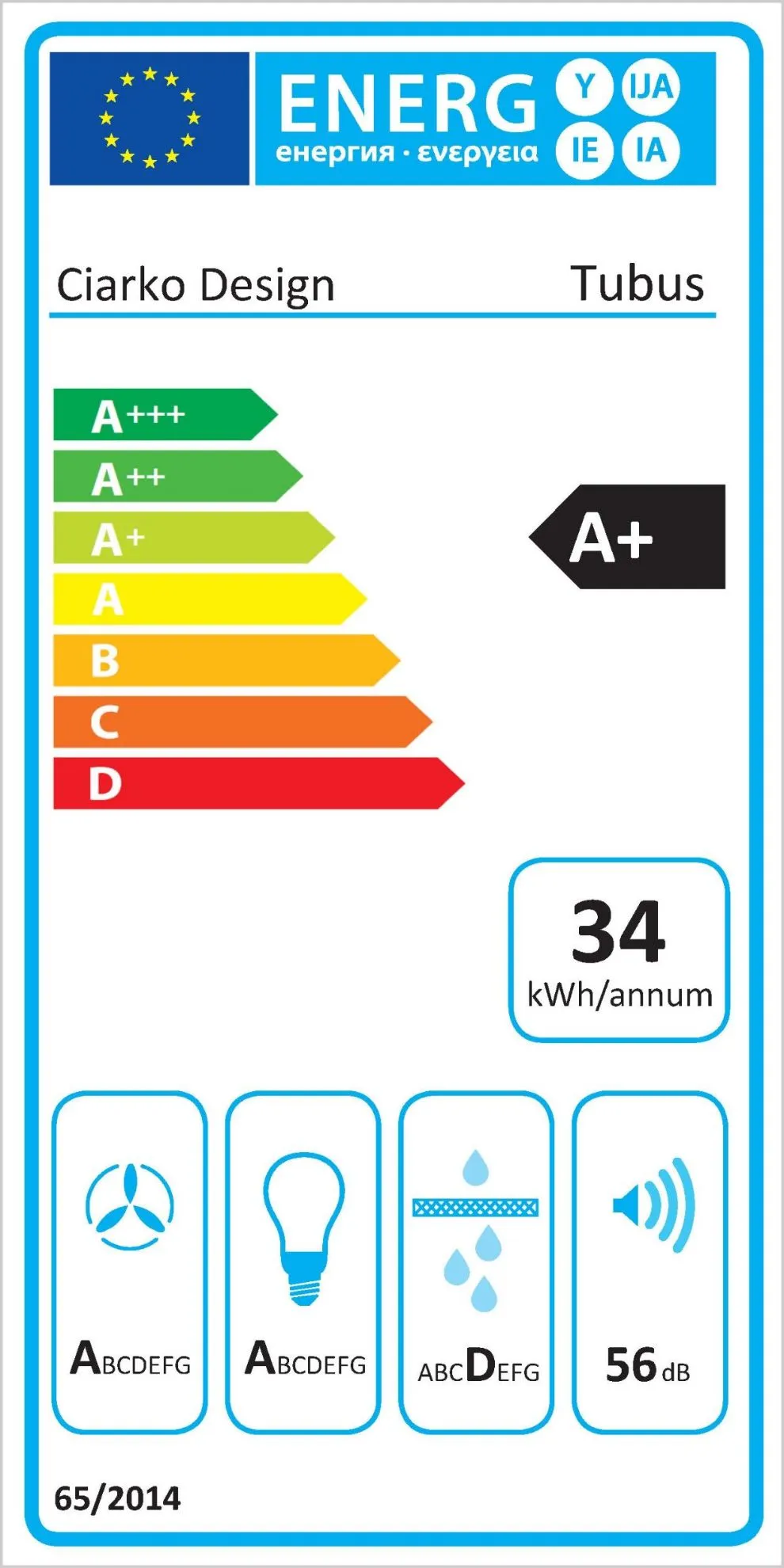

Energy label
Energy efficiency class
A+
Fluid flow efficiency class
A
Fluid flow efficiency
36,3
Lighting efficiency class
A
Lighting efficiency
30 lux/W
Grease filtration efficiency class
D
Grease filtration efficiency
66 %
Accessories
Number of grease filters
1
Design of grease filters
Hliníkový
Dishwasher safe grease filter
Yes
Carbon filter designation
FR-7258 (replacement for FWK228)
Number of carbon filters
1
Carbon filters included
No
Check valve included
No
Deflector included
No
Outlet pipe reducer
No

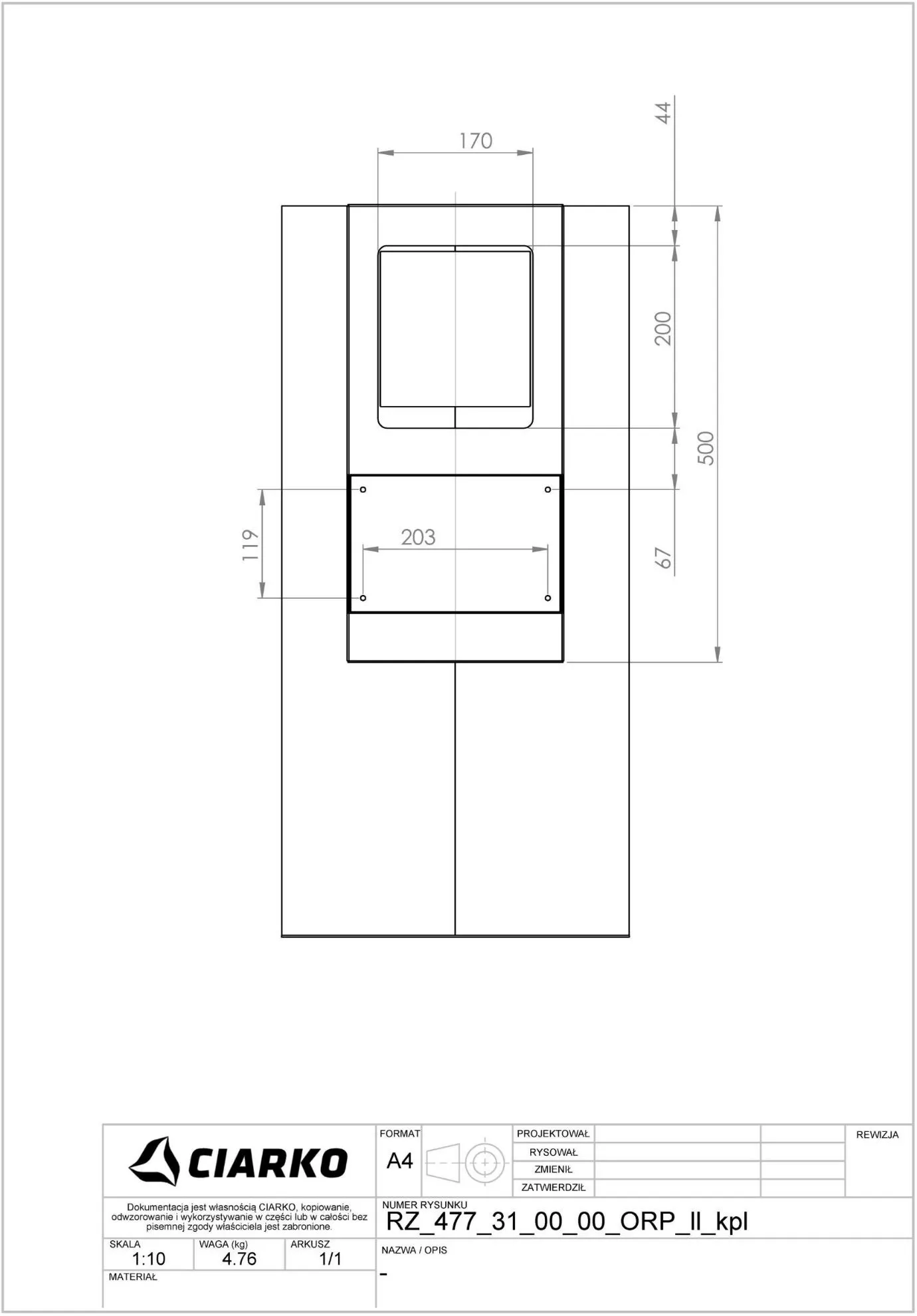

Appliance dimensions and weights

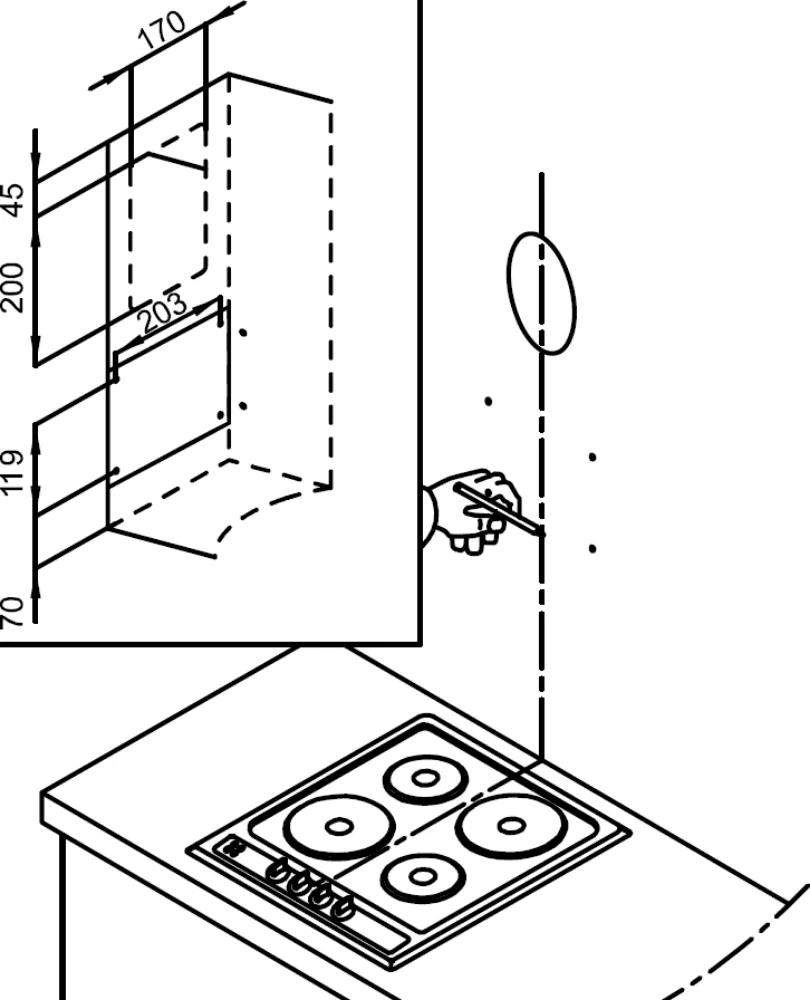

Min. distance between hood and electric hob
55 cm
Min. distance between hood and gas hob
65 cm
Motor outlet diameter
15 cm
Air outlet diameter
15 cm
Width
38,2 cm
Height
80 cm
Depth
48 cm
Weight
19 kg
Width in package
88 cm
Height in package
48 cm
Depth in package
53 cm
Weight in package
21,5 kg
