De Dietrich

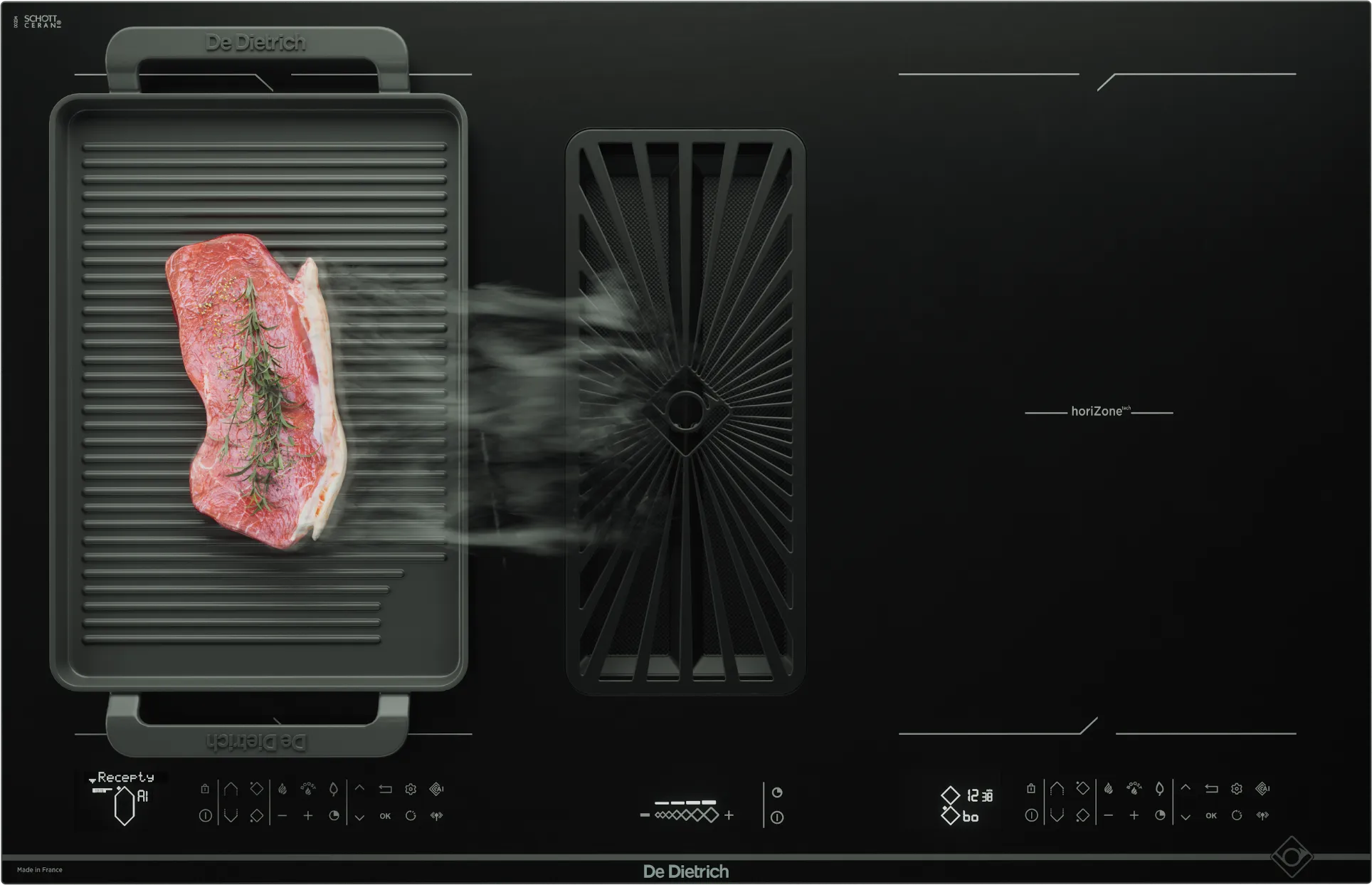

INDUCTION HOB DPH4840BT (set with extractor and probe)

Product code: DPH4840BT
Elmax code: 106164

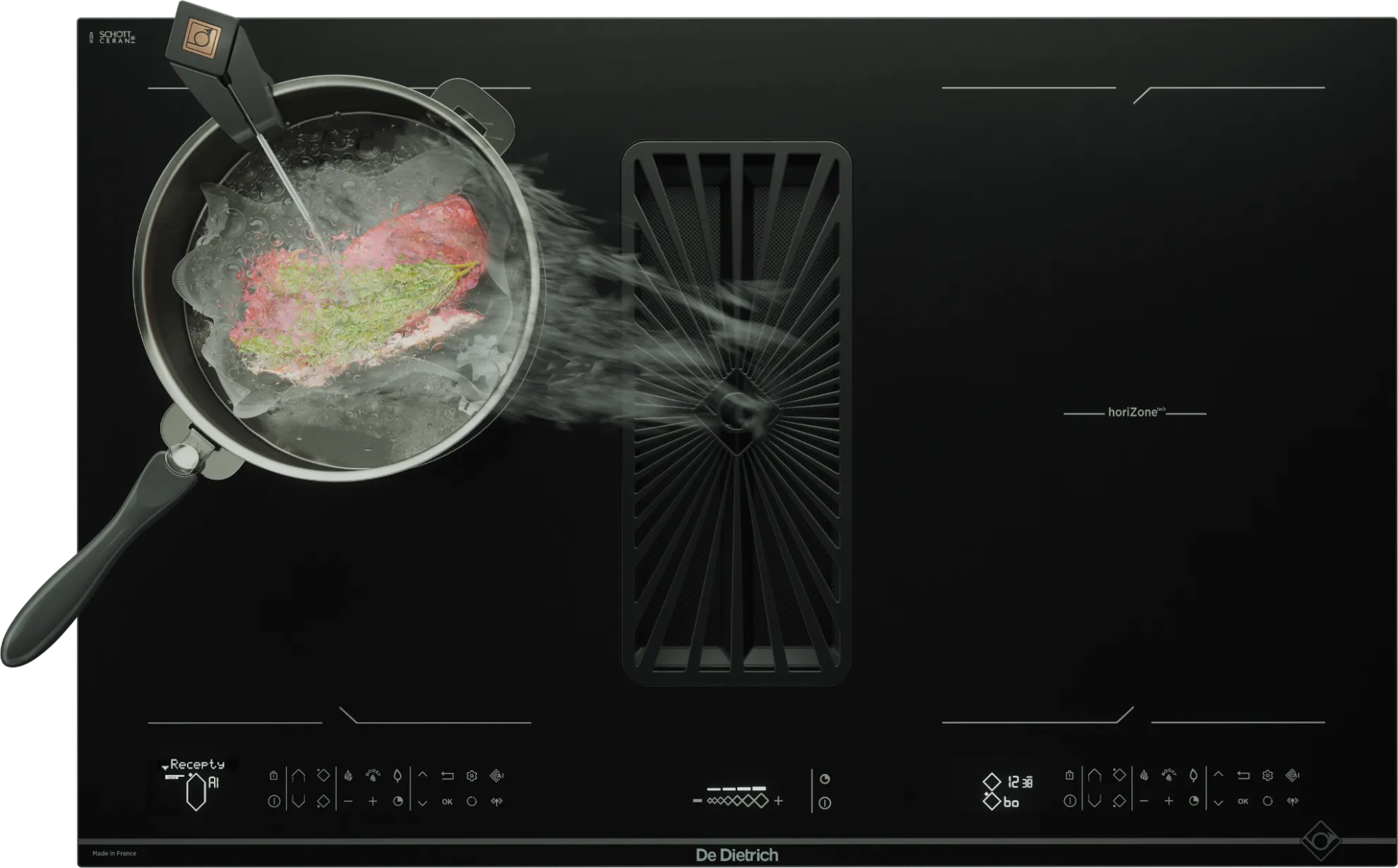

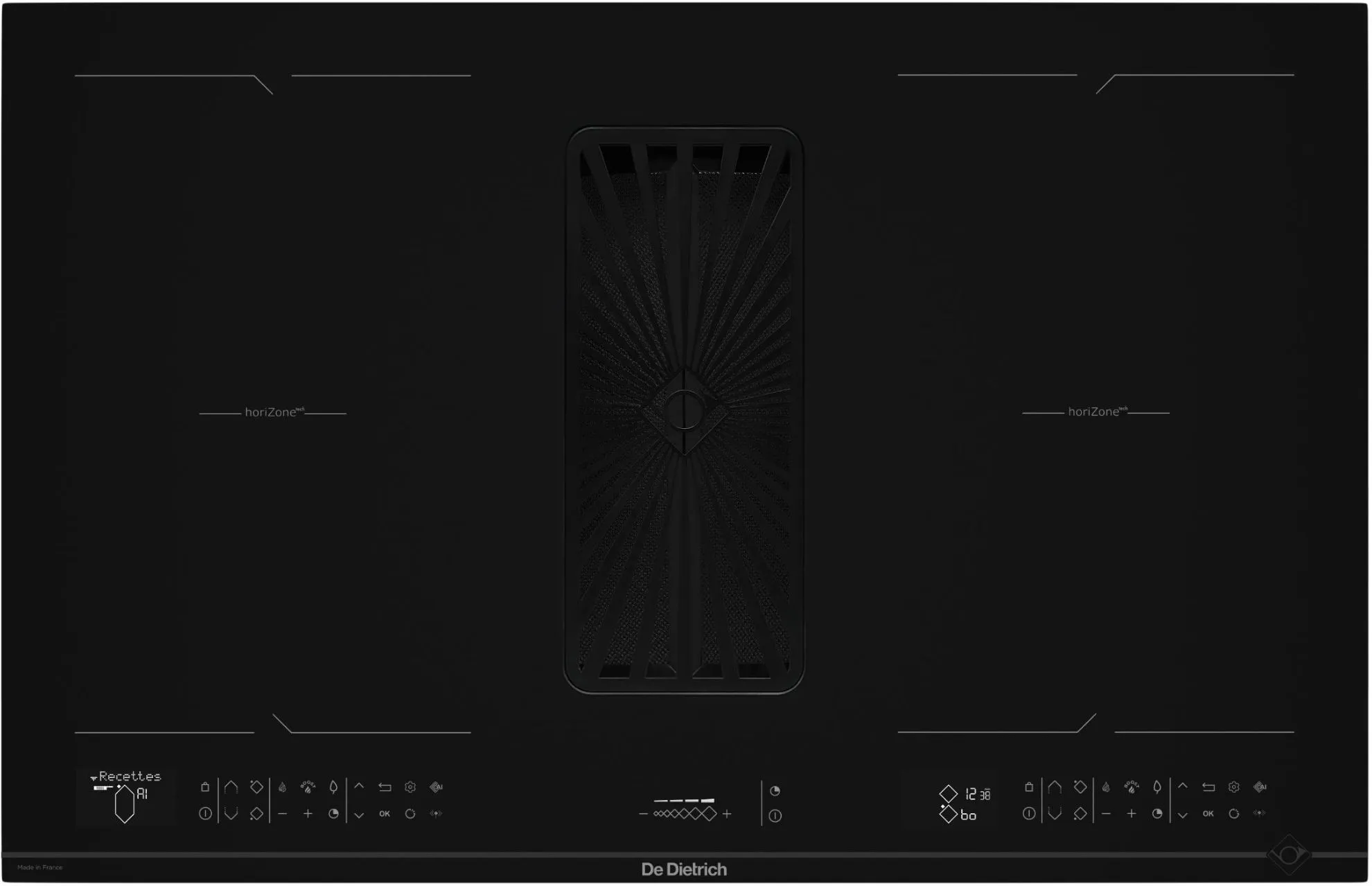

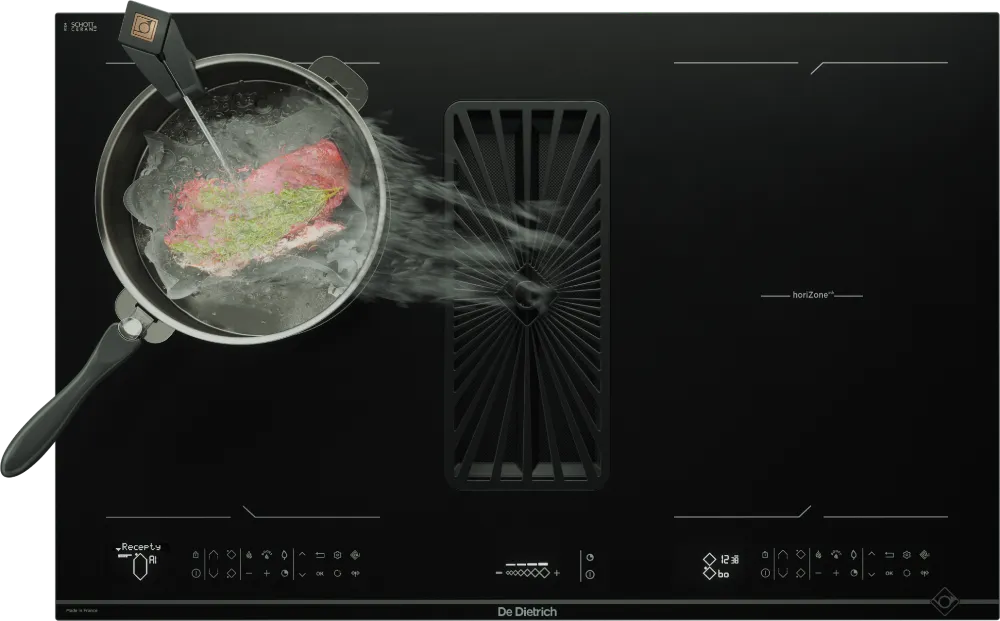

Induction hob with a variable horiZone area, integrated steam extractor, and AI Talent probe
Color finish: Infinite Black

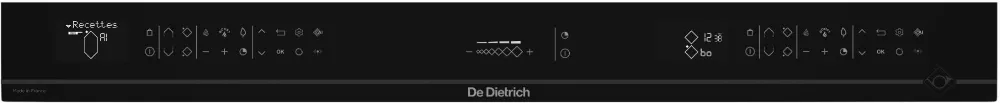

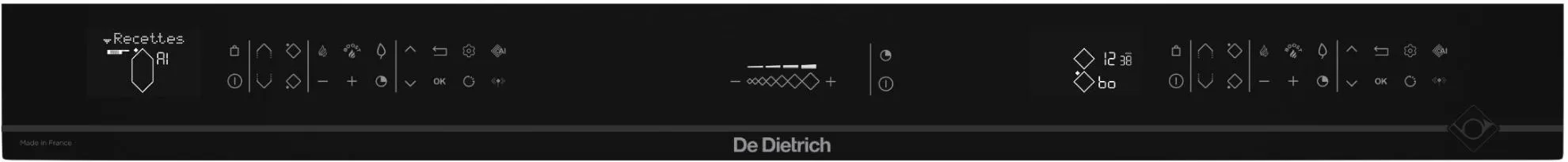

White LCD display
4 independent zones including 2 horiZone zones with a power of 3800 W
Smart automatic recipes (AI Smart navigation)
74 recipes
Functions: Automatic cookware detection, Blanching, Recall, Boost, Clean lock, Grill, ICS

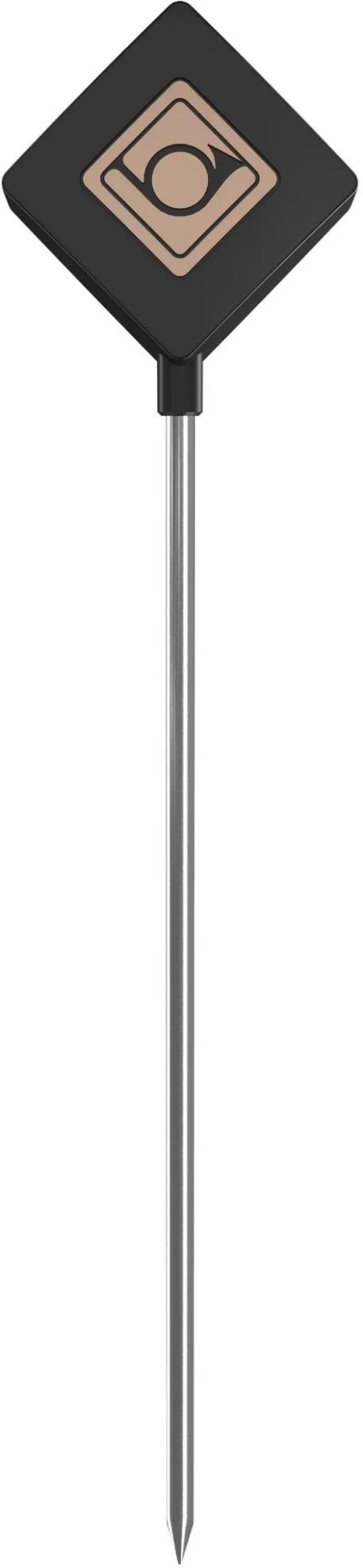

Probe functions: Manual, Melting, Sous Vide expert, Warming, Stewing, Boiling, Frying, Cooking
20 power adjustment levels
Package of 10 safety features
Integrated A++ steam extractor with touch control and slider for power adjustment (4 levels)
Grill of the integrated extractor made of black metal with a matte finish
Max. extraction power: 680 m³/h
Noise level 54-58 dB(A)
Total power input 7.4 kW

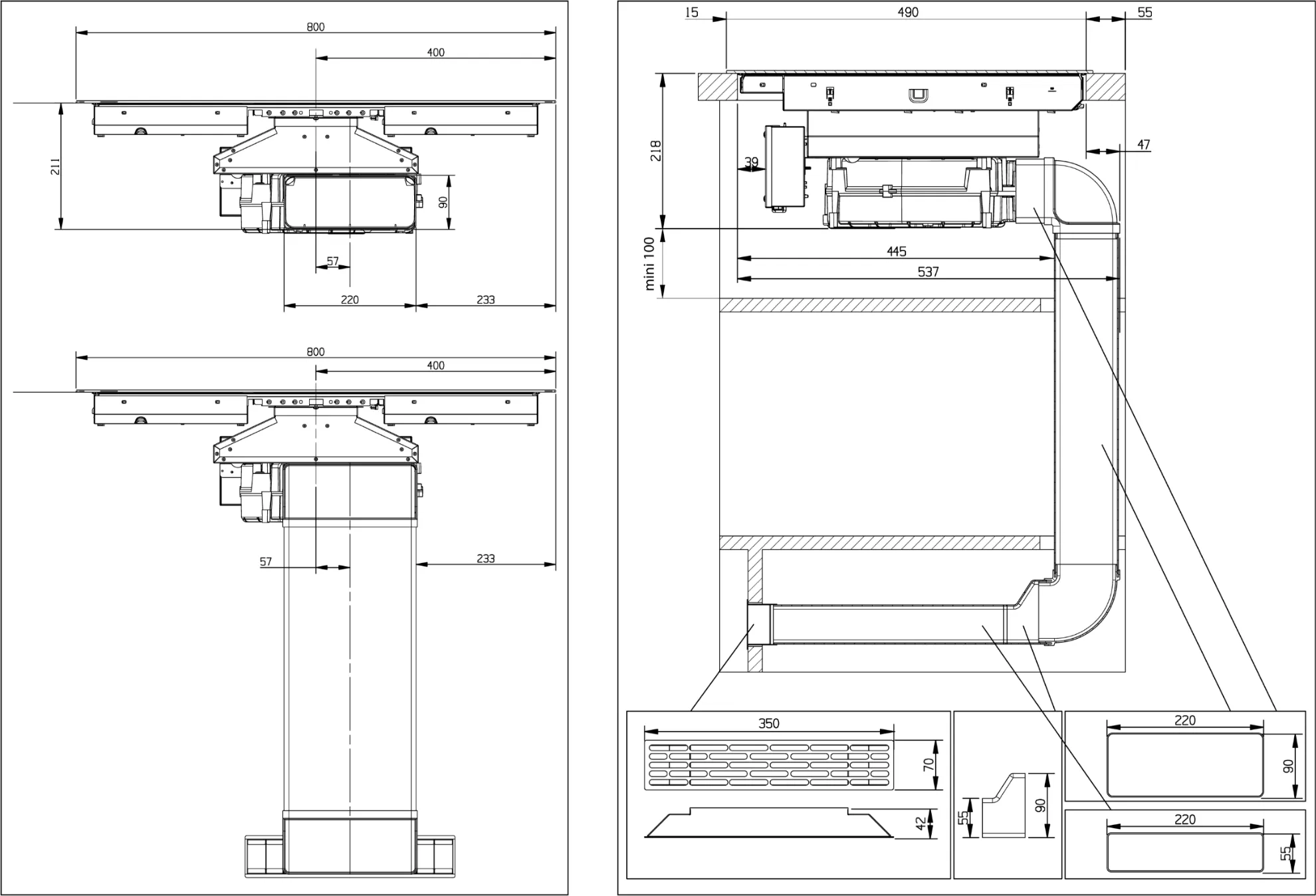

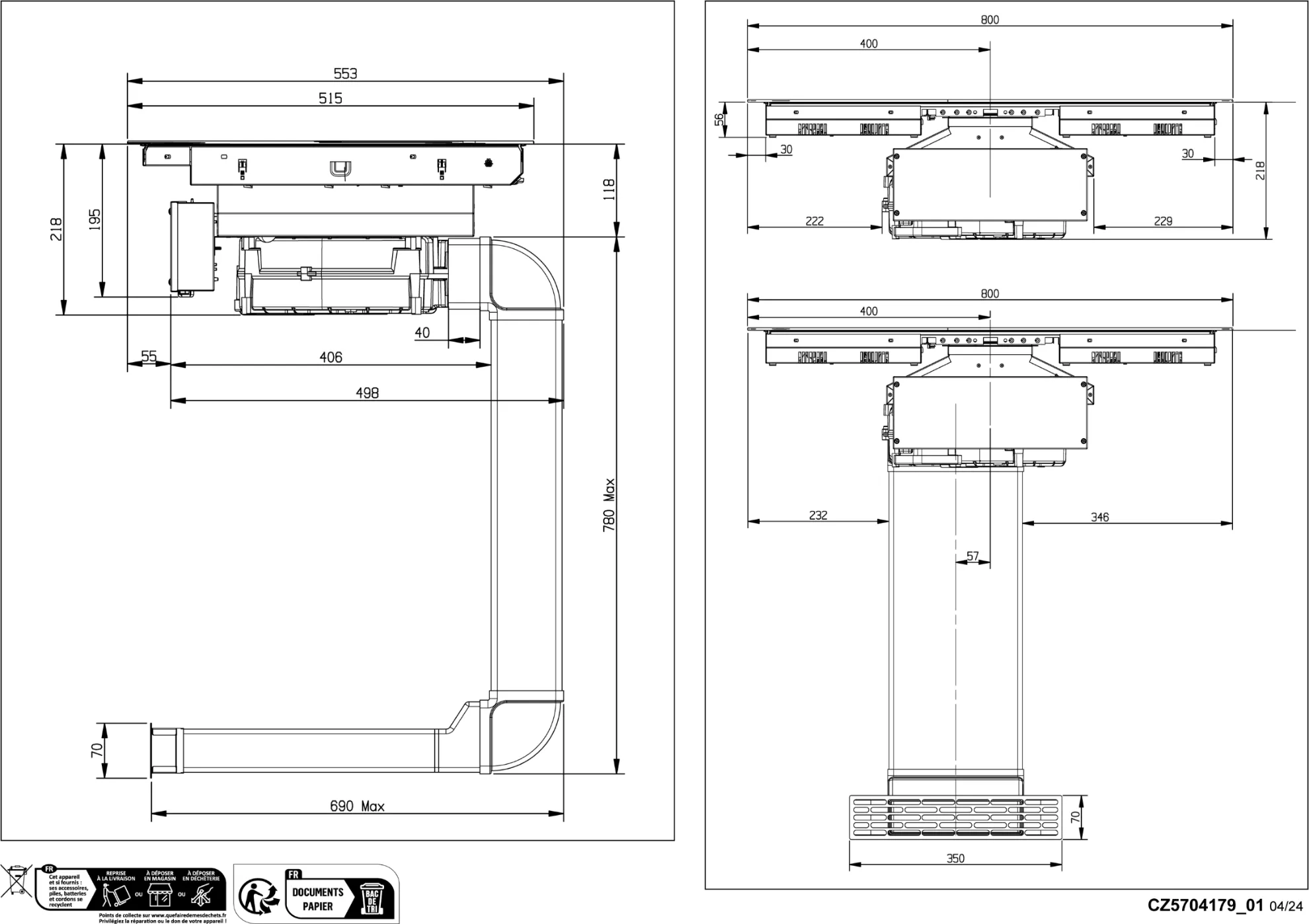

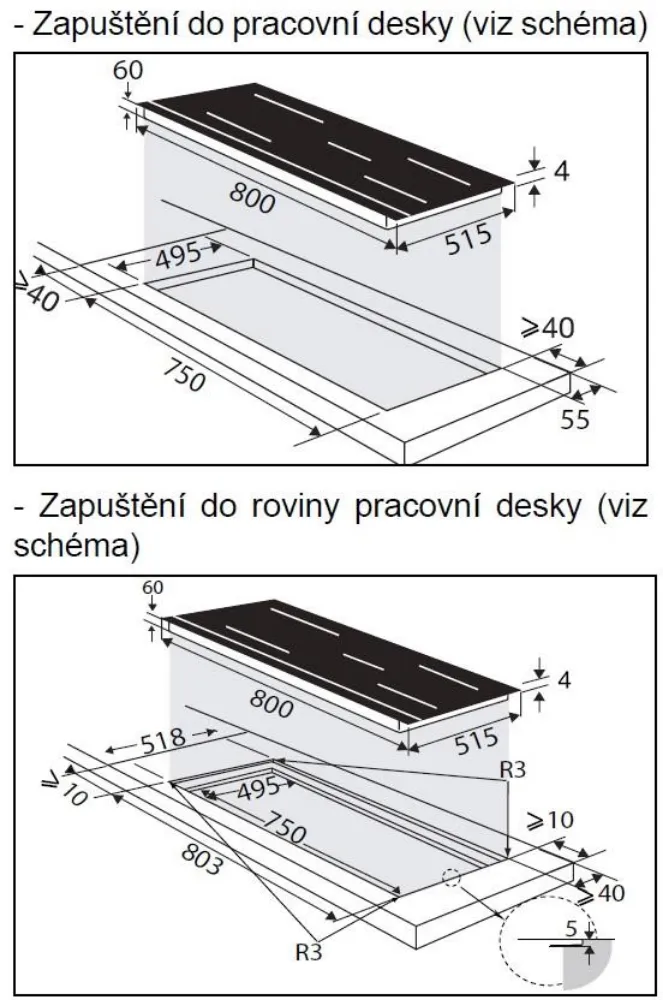

Dimensions (H x W x D): 6 x 80 x 51.5 cm
€ 3,529.00

Induction hob with two horiZone variable surfaces with integrated hood and Al Talent temperature probe with automatic pairing, 80 cm wide; Color design Infinite Black; White LCD display; Temperature probe with holder for placing on containers; The horiZone variable cooking surfaces can be used in their entirety or divided into 2 zones; Automatic detection of container size and position with memory of set power and time; 20 levels of power settings; Smart automatic recipes (AI Smart navigation) - there are up to 84 options to choose from for setting the ideal time for the selected dish; Boost function and Timer for each of the four cooking zones; Functions: Clean lock, Recall, Boost, Grill, Blanching, Automatic cookware detection, Control panel lock, ICS; Thanks to the Grill function, you will be a real chef in the kitchen for grilled meat or vegetables. In combination with an enameled cast iron pot, this function allows you to fry food in a very short time; Probe functions: Manual, Melting, Sous Vide expert, Warming, Stewing, Boiling, Frying, Cooking; 10 safety features; The power cable is supplied without a terminal, length 130 cm; Total power consumption max. 7400 W; Dimensions (HxWxD): 6 x 80 x 51.5 cm.

Integrated steam extractor with touch control with a slider for convenient power adjustment; 4 levels of suction performance including Boost; Maximum suction power: 680 m3/hour; Noise level 54-58 dB(A); BOOST: 64 dB(A); Energy efficiency class A++; Filter saturation indication; 2 pcs of dishwasher-safe aluminum filters; Activated carbon filter for recirculation mode: 2 x AKF55 included; Annual energy consumption: 29 kWh; Extraction or recirculation operating mode (default recirculation).

Package contents: induction hob, AI Talent temperature probe, hood motor, decorative cast-iron grille of the hood, complete set of exhaust pipes, cover grille for the air outlet in the kitchen unit in recirculation mode, 2 pcs of carbon filters AKF55, 2 stainless steel grease filters, seals, plastic flat pipe 90x220 mm 1m, plastic flat pipe 55x220 mm approx. 0.5m, 2x90° flat elbow 90x220 mm, reduction 55x220 mm.

Smart automatic recipes (AI Smart navigation): The hob automatically sets the power and cooking time according to the selected dish (choice of 84 options). It will recommend the most suitable cooking zone and container to achieve the best possible result.

Video - presentation of the horiZone induction hob with two variable surfaces with an integrated hood:



Video instruction - connection of De Dietrich induction plates:



Use of cutting-edge technologies

At our store, you will find appliances with the latest technologies that are not only top-notch but also practical. We offer innovative solutions that combine advanced features with easy operation to make your culinary experiences more efficient and enjoyable.
Parameters
Basic parameters
Cooktop type
Inductive
Surface
Glass
Plate colour
Black
Plate edges
Straight edges
Cooking zones/burners
Total power consumption
7,400 W
Cooking zones
HoriZone 40 x 23 cm (divided into 2 zones)
Number of cooking zones / burners
4
HoriZone 40 x 23 cm
2 divided into 2 zones (4 zones in total)
Left
40 x 23/3800
Right
40 x 23/3800
Controls and functions
Type of plate control
Touch
Control panel location
Front
Display
Matrics White on Black
PerfectSensor function with temperature barrel
Yes
Cooking modes with PerfectSensor temperature probe
Cooking
Autolink
Ne
Hob to Hood
Ne
Number of power setting stages
20
Cooking zone timer
Independent for each zone
Booster
Yes
TIMED function
Yes
Functions horiZone Play
Yes
Number of direct inputs
4
Keeping warm
Yes
BOIL function
Yes
Recall function
Yes
Grill/Plancha function
Yes
Clean Lock function
Yes
Safety
Number of safety features
10
Indication of residual heat of cooking zones
Yes, independent for each cooking zone

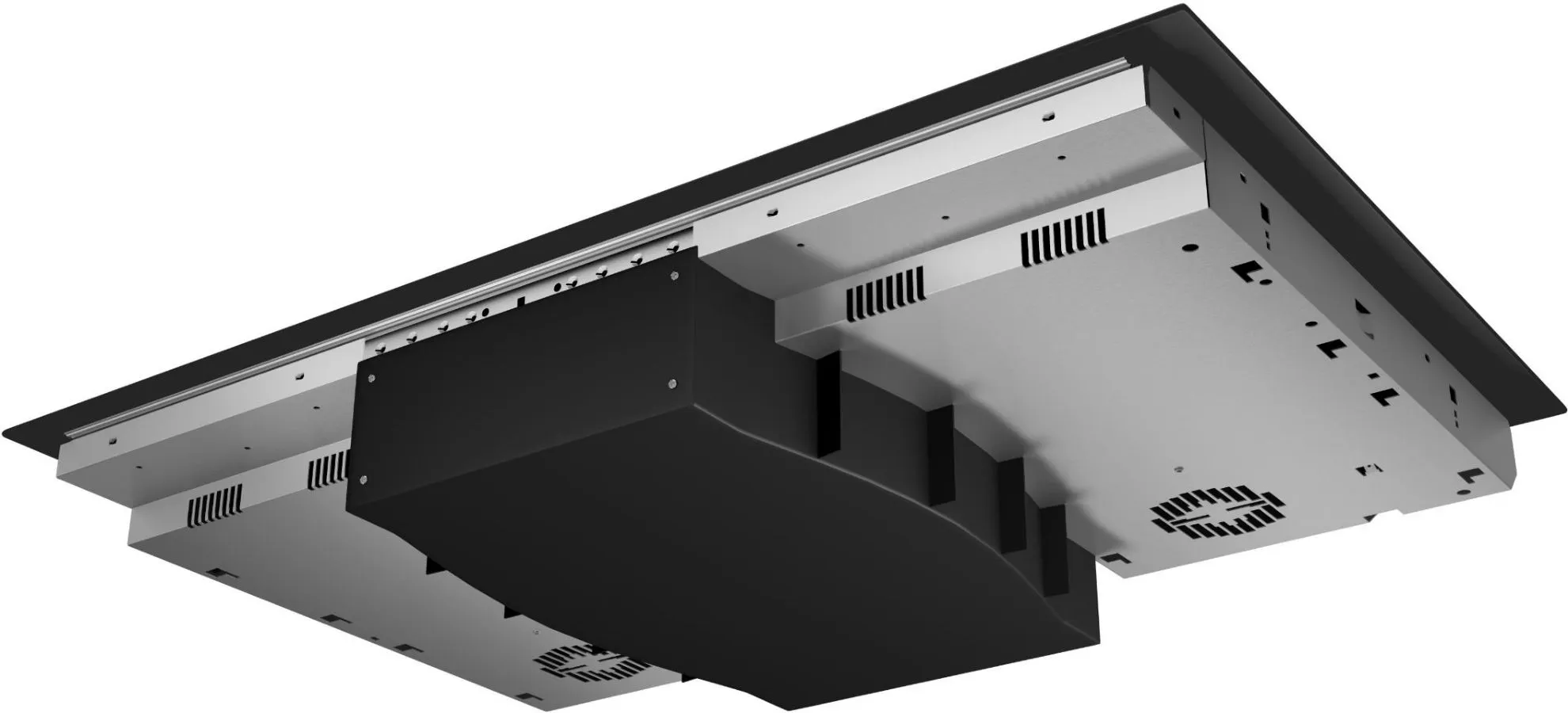

Integrated extractor hood
The hob is equipped with an integrated hood
Yes
Type of hood control
Touch electronic control
Integrated hood lighting
No
Number of hood power settings
4
Intensive extraction mode (BOOST)
Yes
Minimum extraction power in standard mode
350 m³/h
Maximum extraction power in standard mode
500 m³/h
Extraction performance in intensive mode (BOOST)
680 m³/h
Minimum noise level in standard mode
54 dB(A)
Maximum noise level in standard mode
58 dB(A)
Noise level in intensive mode (BOOST)
64 dB(A)
Annual electricity consumption
29 kWh
Operation in extraction mode
Yes
Operation in recirculation mode
Yes
Delayed shut-off function
Yes
Energy efficiency class of the hood
A++
Fluid flow efficiency class
A
Grease filtration efficiency class
C
Grease filter type
Stainless steel
Number of grease filters
2 ks
Activated carbon filters
Yes
Carbon filter type
AKF55
Number of carbon filters
2
Installation
Supplied with power cord
Yes

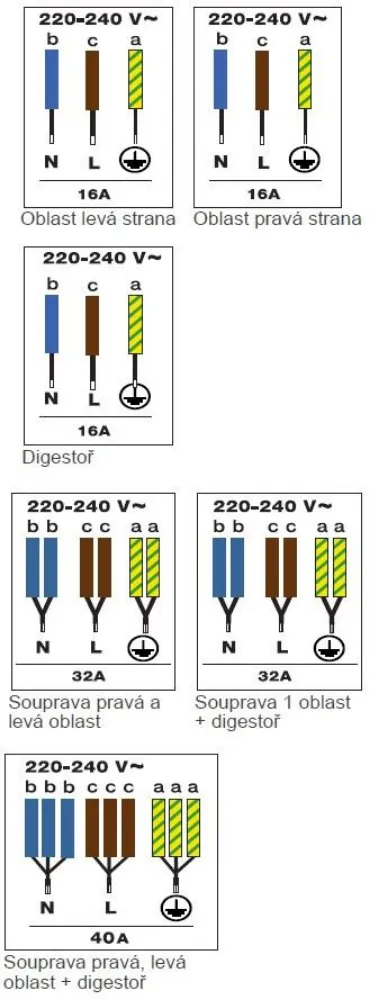

Electrical connection
400 V / 50 Hz / 3 x 16 A
Connection
Three-phase
Appliance dimensions and weights
Width
80 cm
Height
6 cm
Depth
51.5 cm
Weight
14.2 kg
Width in package
94.2 cm
Height in package
46 cm
Depth in package
60 cm
Weight in package
15.1 kg
