Ciarko Design

INDUCTION HOB WITH INTEGRATED EXTRACTOR WIZARD 2.0 CDB8302C

Product code: CDB8302C
Elmax code: 107885
Induction hob with integrated extractor Wizard 2.0
Width 83 cm
Black glass surface
Total power 7.56 kW
4 induction cooking zones
Timer for each cooking zone
Power Boost, Bridge, Stop Go, Lock, Keep Warm functions
10 power levels including Boost
5 sliders for easy power adjustment of the hob and extractor
Automatic extractor operation: adjusts motor speed to the hob’s power level
Extractor power: 180-510 (730) m³/h
Energy class A+
Extractor noise level: 33-61 (68) dB(A)
Option for ducted or recirculating installation
Compatible with Space Max Wizard

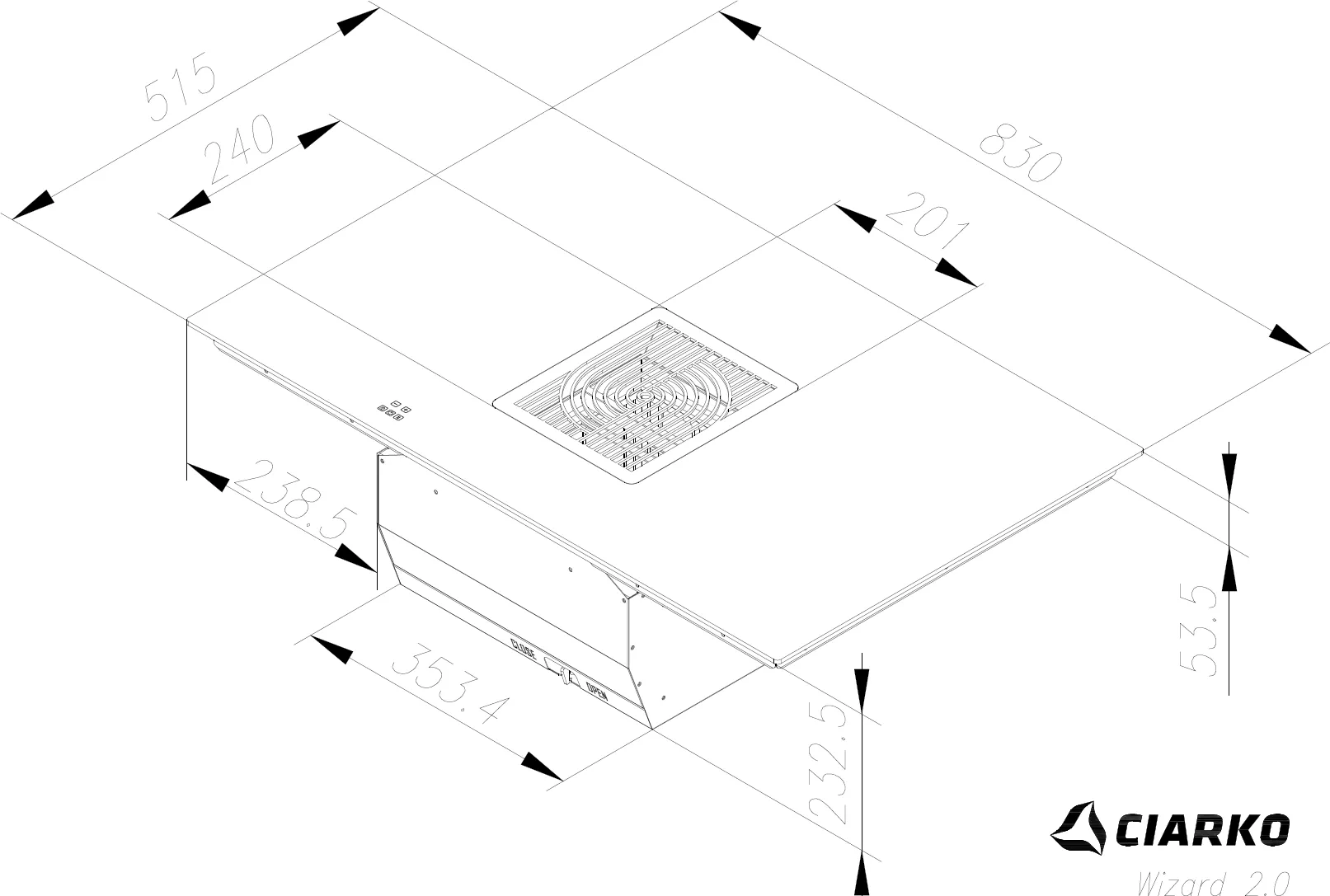

Dimensions (HxWxD): 23.25 x 83.0 x 51.5 cm
€ 2 899,00

Induction Hob with Integrated Extractor Ciarko Design CDB8302C WIZARD 2.0

Make your daily cooking easier with an induction hob with an integrated extractor. It offers more than just a modern look – smart features ensure maximum comfort, and touch control with 5 sliders guarantees intuitive operation. With Bridge, you can connect the left or right cooking zones into one larger zone, easily heating even larger cookware and grills. Try all the special functions and treat your kitchen to a unique elegant design with advanced technologies.

Useful 2-in-1 Appliance Combination

The combination of an induction hob with an integrated extractor represents the ideal solution for modern kitchens. It saves space, combines a powerful hob with efficient steam extraction, and also allows for more flexible placement. The minimalist design with clean lines adds an elegant look to every kitchen. Treat yourself to a fresh environment where steam is extracted directly at the source!

Induction hob with integrated extractor Ciarko Design CDB8302C WIZARD 2.0
Induction hob with integrated extractor Ciarko Design CDB8302C WIZARD 2.0

Unique Features of the CDB8302C Induction Hob:

  • 83 cm width
  • With 4 induction cooking zones
  • 10 power setting levels
  • Timer for each cooking zone
  • Residual heat indication

Four Cooking Zones for Ideal Performance

The cooking zones of the Ciarko Design CDB8302C induction hob offer enough space for comfortable cooking while providing ideal performance. Both left zones have a power of 2100 W, which you will use for usual cooking and heating of already prepared meals. The right zones have a higher power of 3700 W, so they can easily handle fast water heating or intensive searing. Thanks to the Bridge function, it is possible to connect both left or both right zones into one large cooking area, thereby gaining enough space for larger cookware or a grill.

Induction hob with integrated extractor Ciarko Design CDB8302C WIZARD 2.0

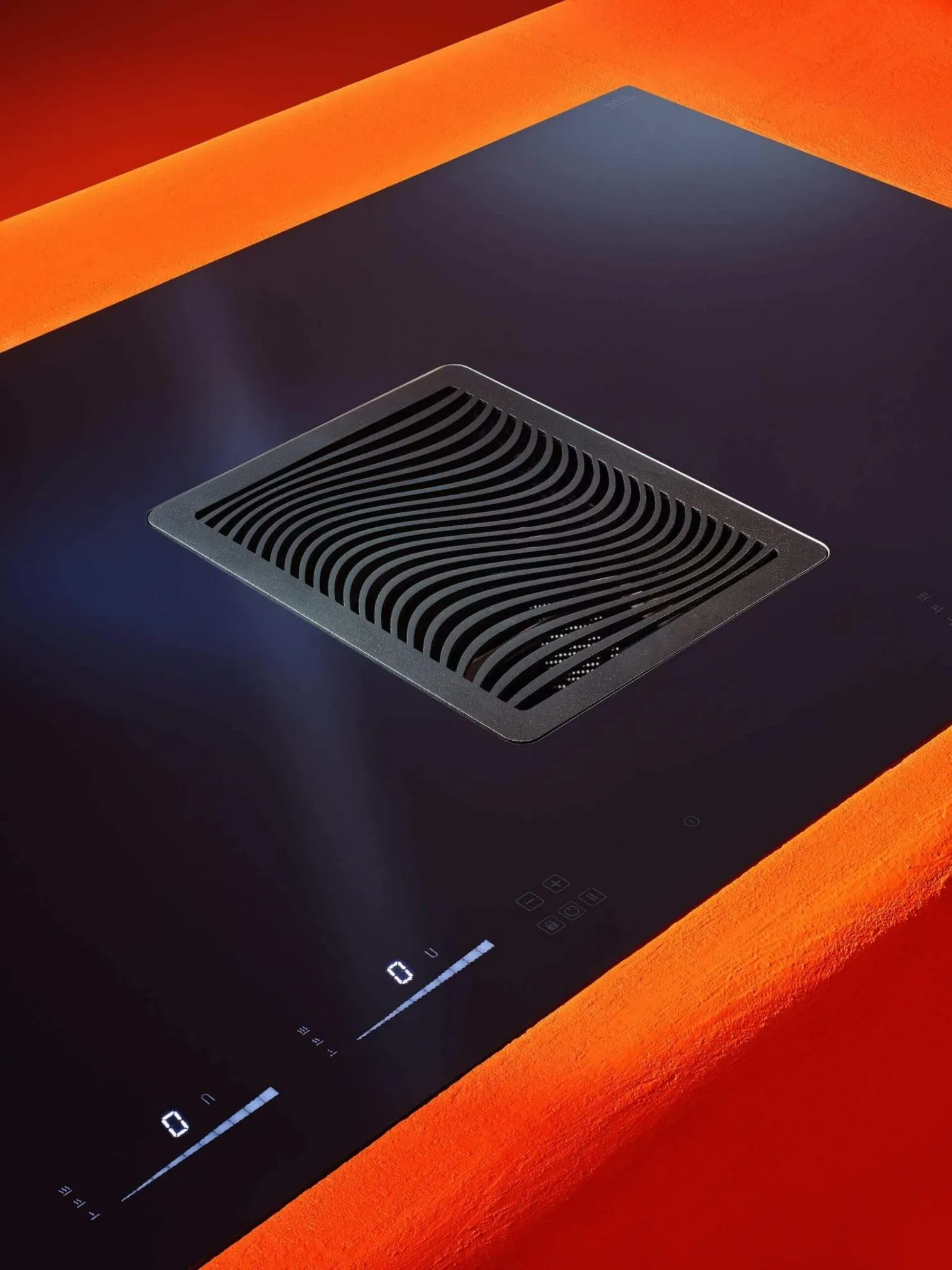

Ciarko Design CDB8302C WIZARD 2.0 induction hob with intuitive touch control

Intuitive Touch Control with Sliders

With touch control, you can easily set the necessary functions and the power of the hob and extractor. Five separate sliders for smooth adjustment will make the entire operation easier for you. You don't have to complicatedly switch between functions or cooking zones. The control panel will therefore be not only useful but also contributes to the elegant appearance of the entire hob.

Smart Features for Easier Cooking

The Ciarko Design CDB8302C induction hob with practical functions will facilitate daily cooking as well as the preparation of a true multi-course feast. With Power Boost, you can quickly and briefly increase the power to the maximum, which you will use especially when heating water or searing. With Stop Go, you can pause cooking for a while – with a single touch, you ensure safety and can step away without worry. Then you simply start where you left off. With Lock, you can temporarily lock the control panel against unwanted setting changes, for example, if you need to wipe the panel or have small children.

Induction hob with integrated extractor Ciarko Design CDB8302C WIZARD 2.0

The Long Life Wizard 2.0 carbon filter is included in the package. The filter is standardly placed on the grease filter; when operating the hood in extraction mode (ducted), the carbon filter must be removed. The Long Life Wizard 2.0 carbon filter is regenerable in the standard way, extending its lifespan. The filter is made of non-woven fabric with activated carbon, which effectively absorbs odors. A replacement carbon filter can be purchased separately in the form of non-woven fabric with activated carbon, which can be cut to the required size and adapted to the specific type of grease filter.


Use of cutting-edge technologies

At our store, you will find appliances with the latest technologies that are not only top-notch but also practical. We offer innovative solutions that combine advanced features with easy operation to make your culinary experiences more efficient and enjoyable.
Parameters
Basic parameters
Cooktop type
Inductive
Surface
Glass
Plate colour
Black
Cooking zones/burners
Total power consumption
7 560 W
Cooking zones
Induction
Number of cooking zones / burners
4
Bridge (possibility of connecting 2 cooking zones)
Yes (2 x )
Left front zone
- / 2100
Left rear zone
- / 2100
Right front zone
- / 3700
Right rear zone
- / 3700
Controls and functions
Type of plate control
Touch with slider for power adjustment
Control panel location
Front
Display
Yes
Number of power setting stages
10
Cooking zone timer
Independent for each zone
Booster
Yes
Number of direct inputs
5
Keeping warm
Yes
Safety
Indication of residual heat of cooking zones
Yes, independent for each cooking zone
Integrated extractor hood
The hob is equipped with an integrated hood
Yes
Type of hood control
Touch electronic control
Inverter motor
Yes
Intensive extraction mode (BOOST)
Yes
Minimum extraction power in standard mode
180 m³/h
Maximum extraction power in standard mode
510 m³/h
Extraction performance in intensive mode (BOOST)
730 m³/h
Minimum noise level in standard mode
33 dB(A)
Maximum noise level in standard mode
61 dB(A)
Noise level in intensive mode (BOOST)
68 dB(A)
Annual electricity consumption
33 kWh
Power consumption in standby mode
0.45
Operation in extraction mode
Yes
Operation in recirculation mode
Yes
Delayed shut-off function
Yes

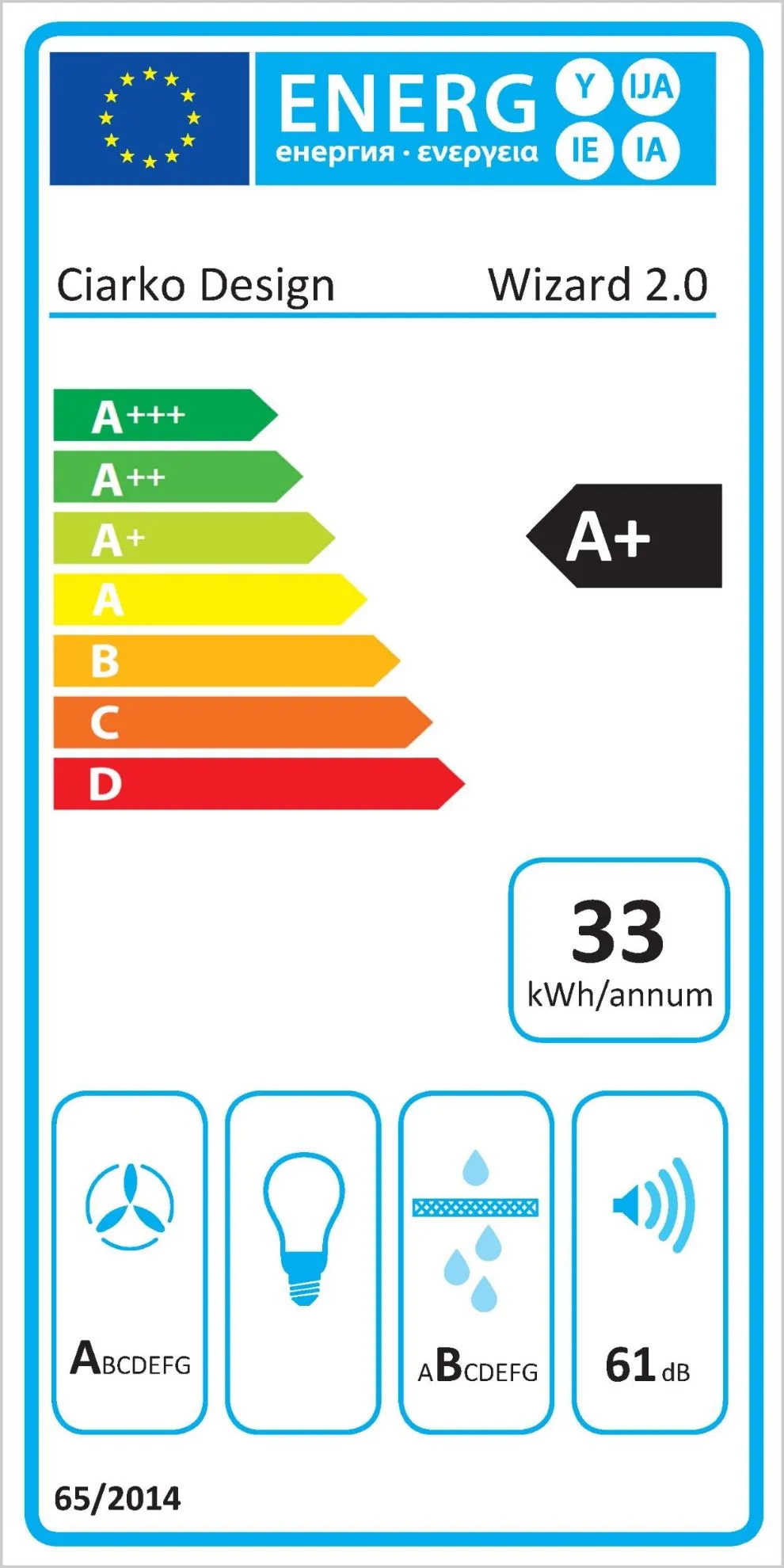

Energy efficiency class of the hood
A+
Fluid flow efficiency class
A
Fluid flow efficiency
33,2
Grease filtration efficiency class
B
Grease filtration efficiency
87 %
Activated carbon filters
Yes
Carbon filter type
Long Life Wizard 2.0
Number of carbon filters
4
Air outlet diameter
22 cm x 9 cm
Installation
Hob can be recessed into the worktop
Yes
Supplied with power cord
Yes

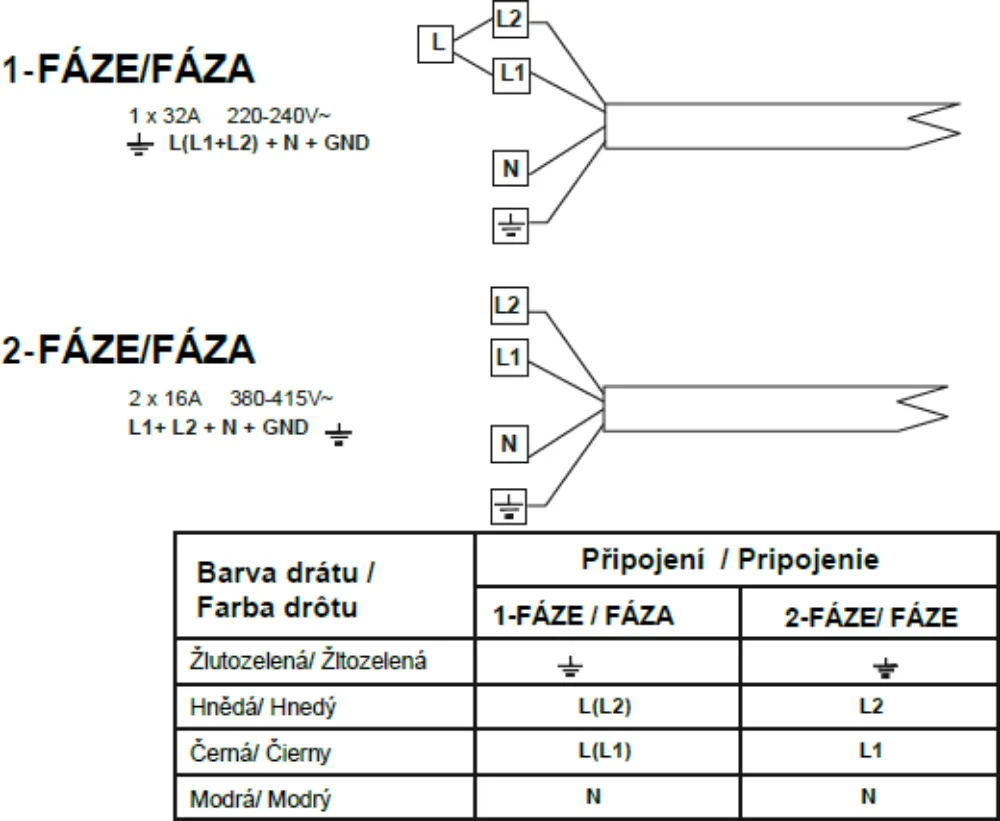

Electrical connection
400 v / 50 Hz / 2 x 16 A
Connection
Two-phase
Appliance dimensions and weights
Width
83 cm
Height
23,25 cm
Depth
51,5 cm
Weight
21,2 kg
Width in package
93 cm
Height in package
31 cm
Depth in package
64 cm
Weight in package
26,05 kg
Dimensions of built-in opening (H x W x D)
79,5 x 49
Accessories
