Ciarko Design

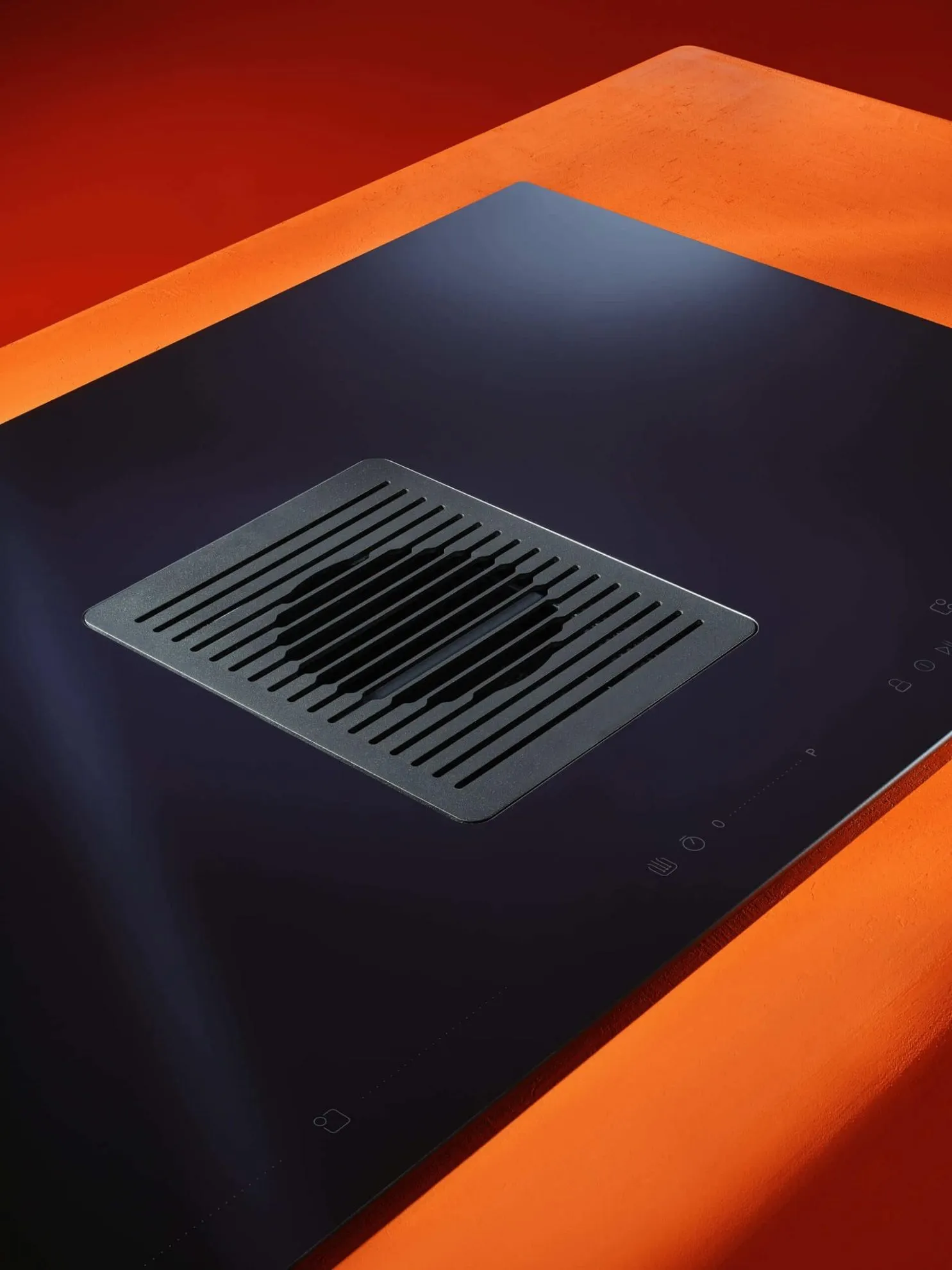

INDUCTION HOB WITH INTEGRATED EXTRACTOR WIZARD ONE CDB8301C

Product code: CDB8301C
Elmax code: 106184
Induction hob with integrated extractor Wizard One
Width 83 cm
Black glass surface
Total power 7.56 kW
4 induction cooking zones
Timer for each cooking zone
Power Boost, Bridge, Stop Go, Lock functions
Automatic extractor operation: adjusts motor speed to the hob's power level
4 separate sliders for easy power adjustment
Separate slider for adjusting extractor power
Extractor power: 170-410 (655) m3/h
Energy class A+
Extractor noise level: 38-58 (68) dB(A)
Option for ducted or recirculation installation

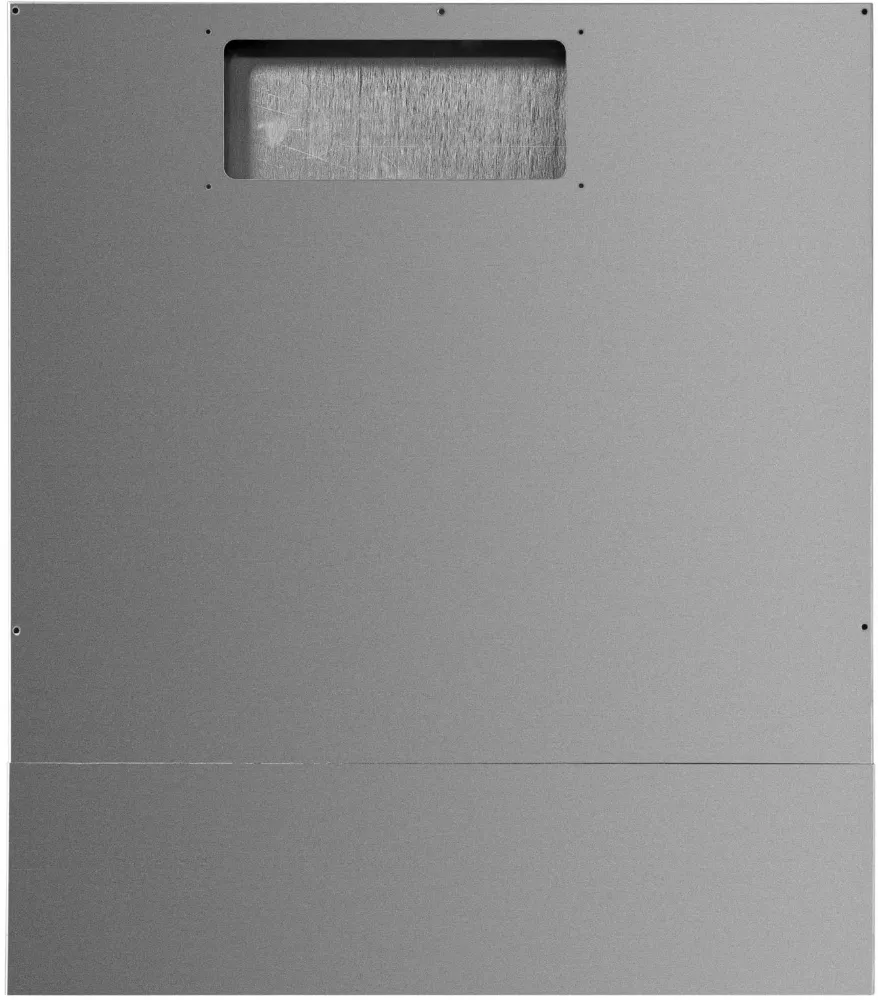

Compatible with Space Max Wizard

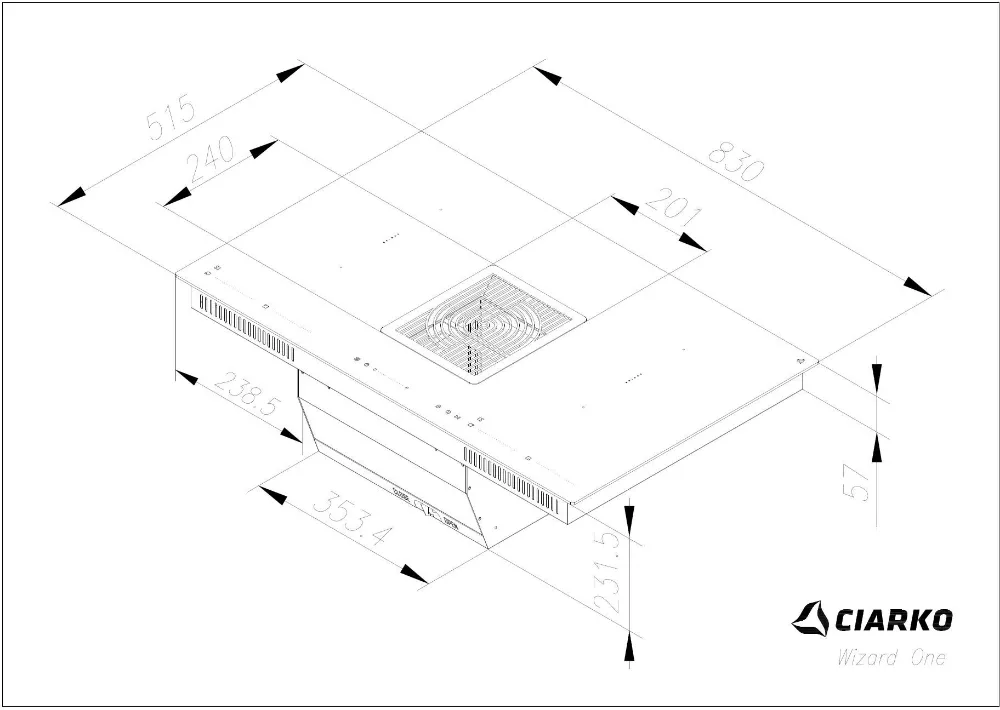

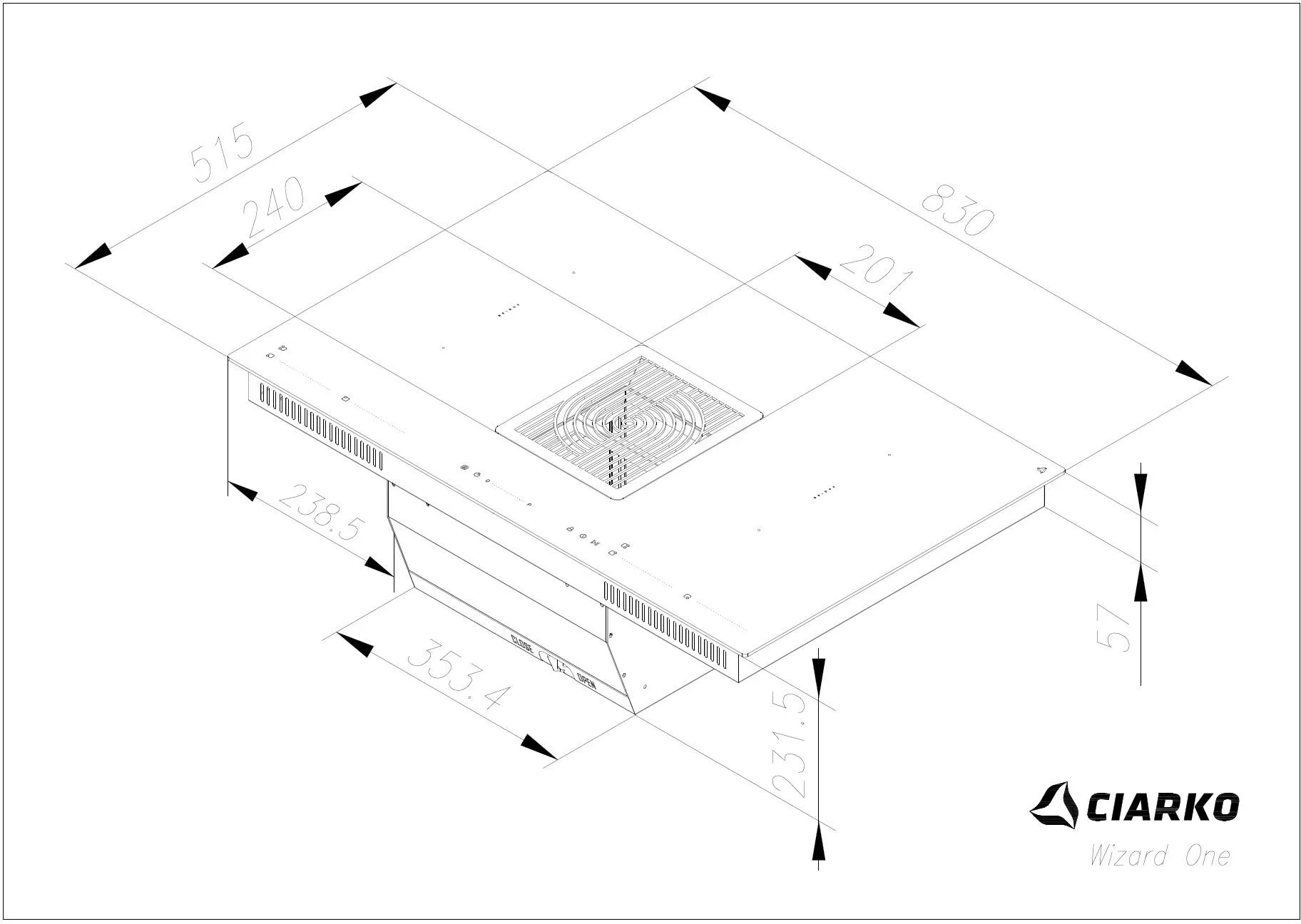

Dimensions (HxWxD): 23.2 x 83.0 x 51.5 cm
€ 1,949.00

CDB8301C Induction Hob with Integrated WIZARD ONE Extractor

Discover the sophisticated solution combining the Ciarko Design CBD8301C induction hob with the built-in Wizard One extractor hood. Maximum functionality, space-saving design, and a modern look suit every kitchen. You can connect four induction cooking zones using the Bridge function to create a larger cooking surface. Automatic pot detection guarantees energy savings and also emphasizes your safety – if you remove the pot from the cooking surface, the hob automatically stops heating.

Four Induction Zones for Fast Cooking

Fully utilize the potential of the CDB8301C induction hob and tailor your cooking exactly to your current needs. Whether you are preparing a quick lunch or a more complex dish, the powerful right side with 2400 W will speed up all preparation. On the left, you will find two zones with an output of 2000 W. You can easily connect the right side with the Bridge function to create a larger area that perfectly heats grills and roasting pans.

Four induction zones of the Ciarko Design CBD8301C hob

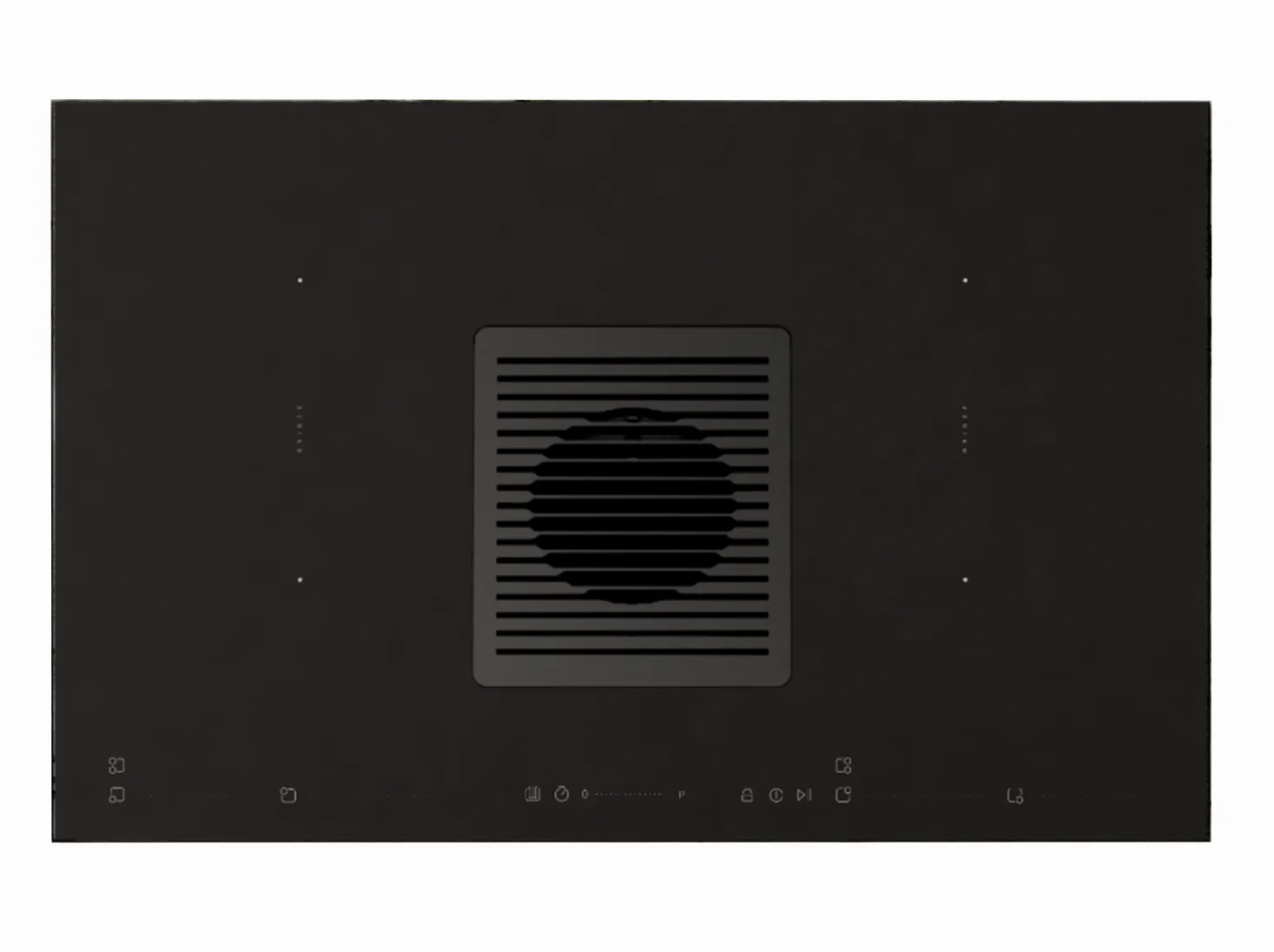

Ciarko Design CBD8301C induction hob

Unique Features of the Ciarko Design CBD8301C Induction Hob:

  • 83 cm wide
  • With integrated Wizard One extractor
  • 4 induction cooking zones with bridging capability
  • 10 power setting levels
  • Total power input 7.56 kW

Combination of Two Appliances for Maximum Results

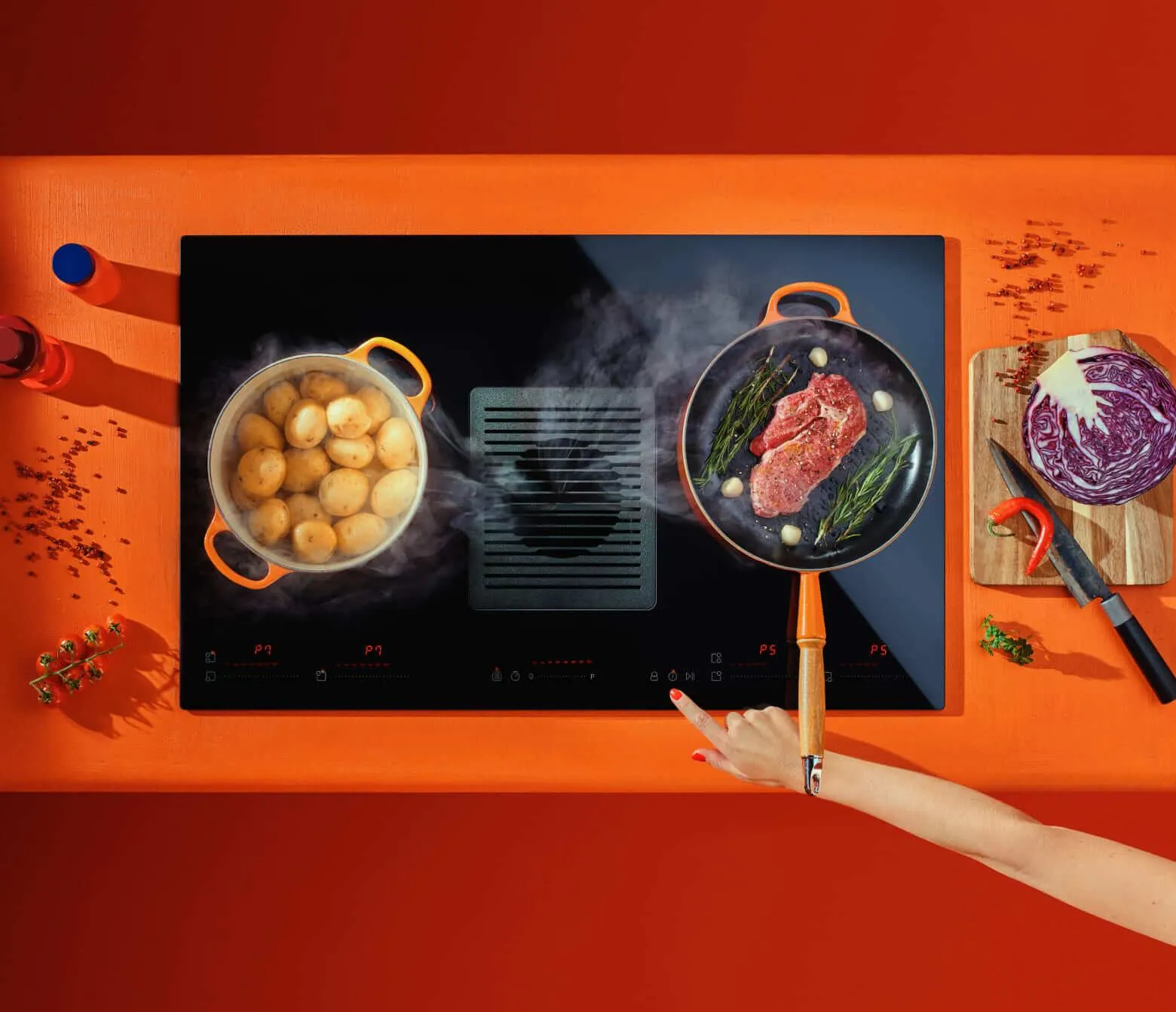

The integrated extractor placed in the center of the hob does not disturb its elegant appearance, yet effectively extracts all steam and unwanted odors from cooking with an airflow of 170 to 410 m3/h, reaching up to 655 m3/h in intensive mode. With eight power levels, you can easily manually adjust the strength to your current needs, but thanks to the connection, you can also use the automatic mode – and the extractor will adapt to the hob's power.

Combination of Wizard One extractor and Ciarko Design CBD8301C induction hob
Automatic pot detection of Ciarko Design CBD8301C induction hob

Automatic Pot Detection

Achieve maximum efficiency with automatic cookware recognition. The hob detects when suitable cookware is placed on the cooking zone and starts heating only if the material is compatible with induction. Similarly, it will not start heating if the cookware is completely missing. This prevents not only damage to other materials but also unnecessary overheating and the risk of injury. Savings will also be reflected in your energy bill.

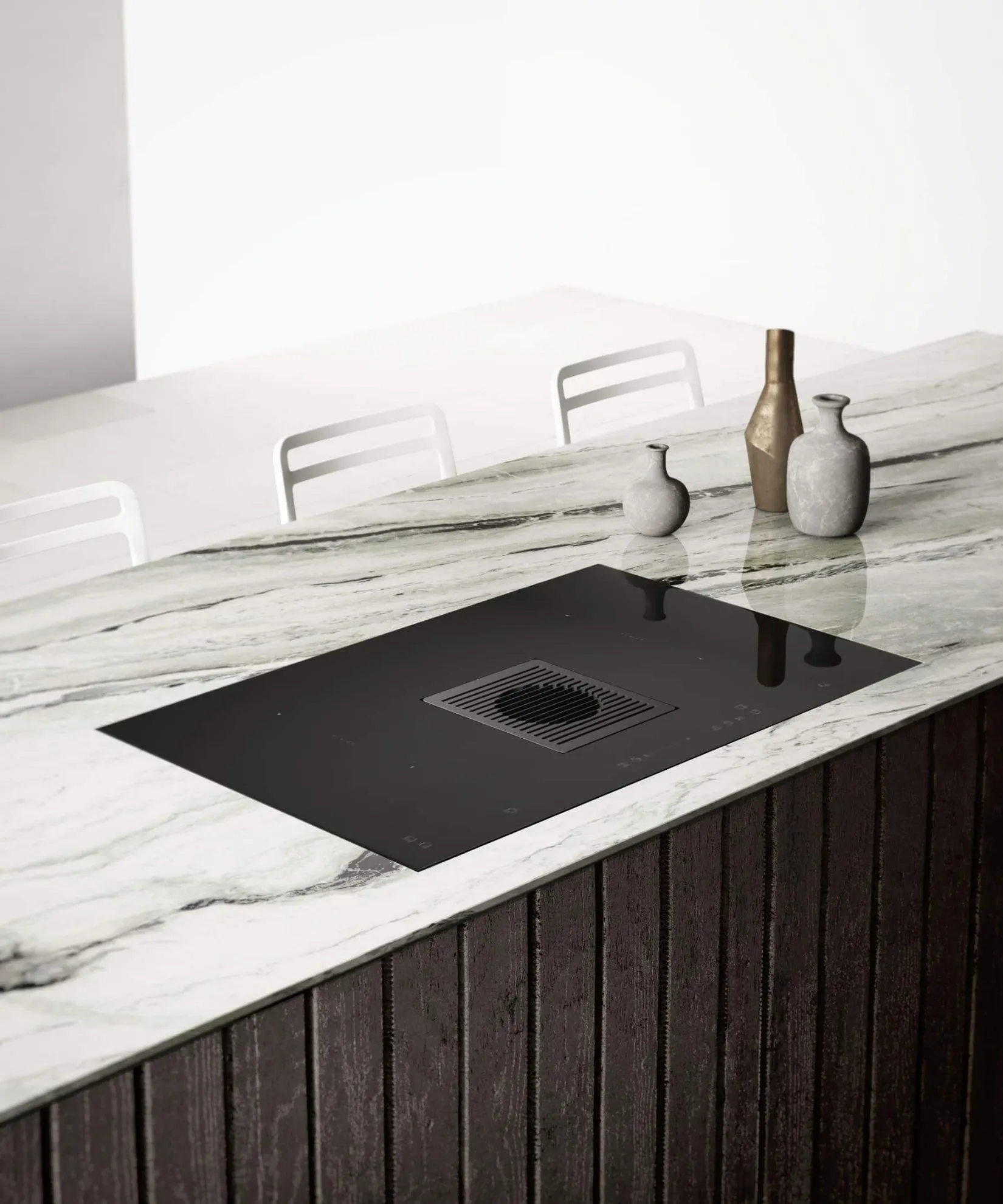

Elegant Black Glass with Easy Maintenance

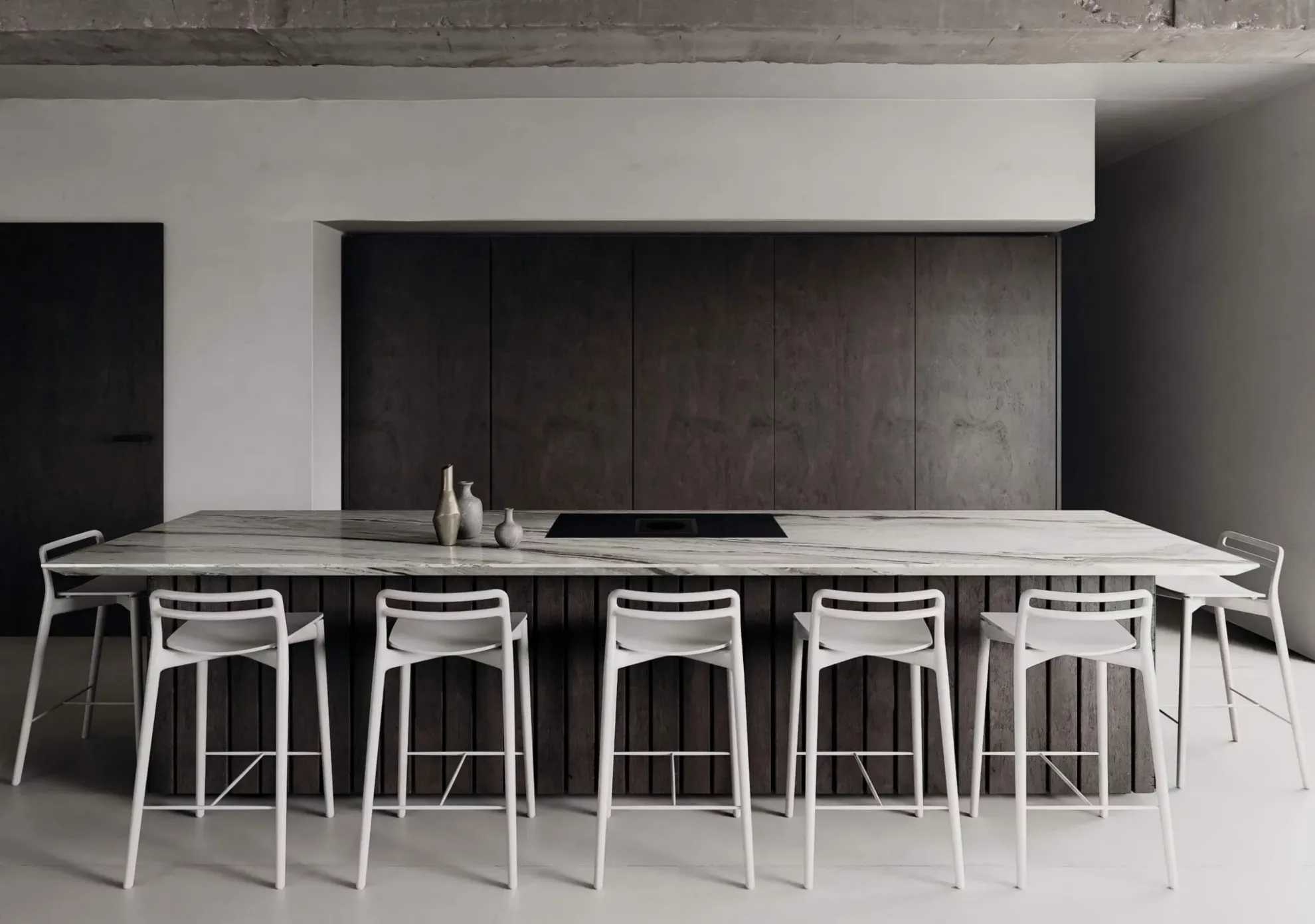

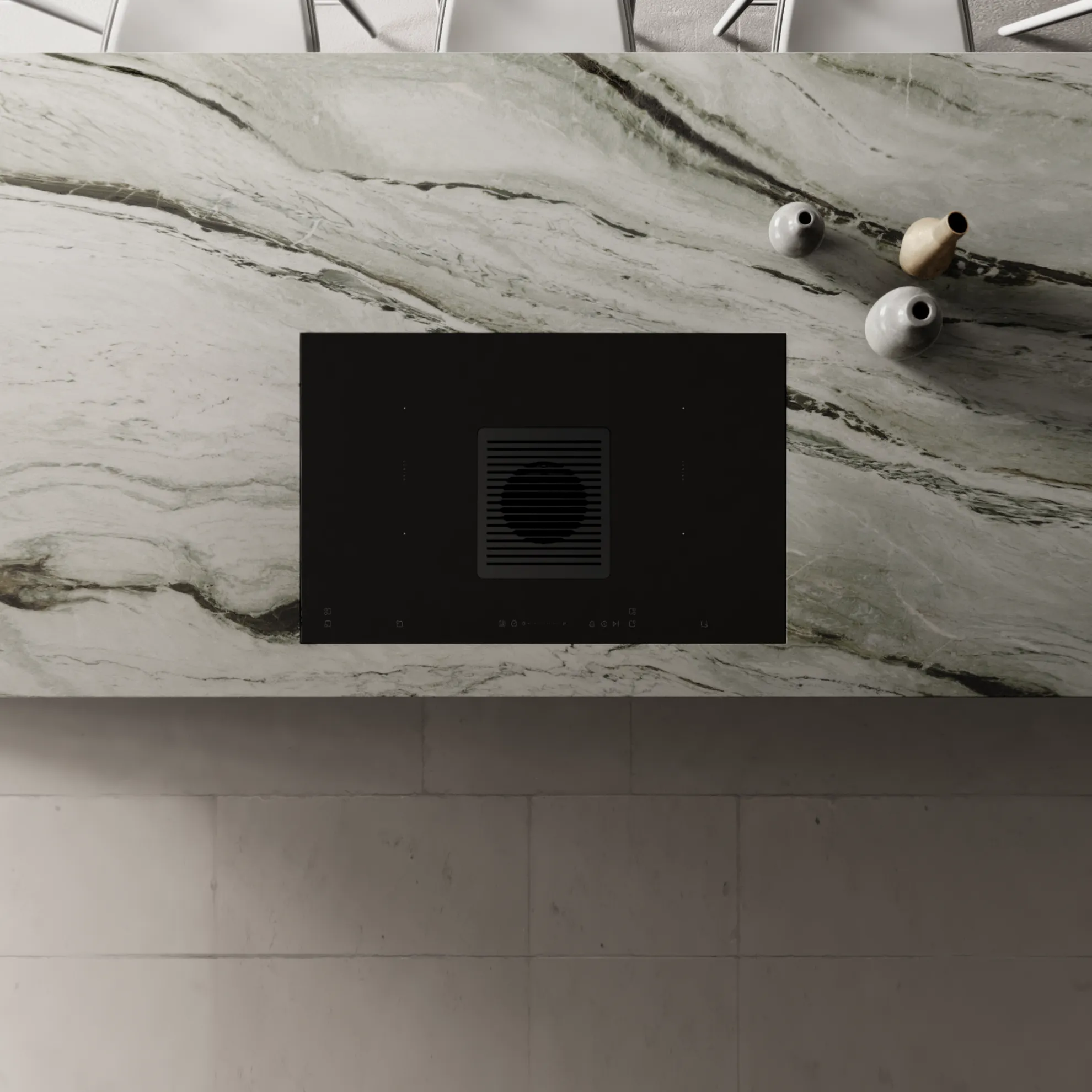

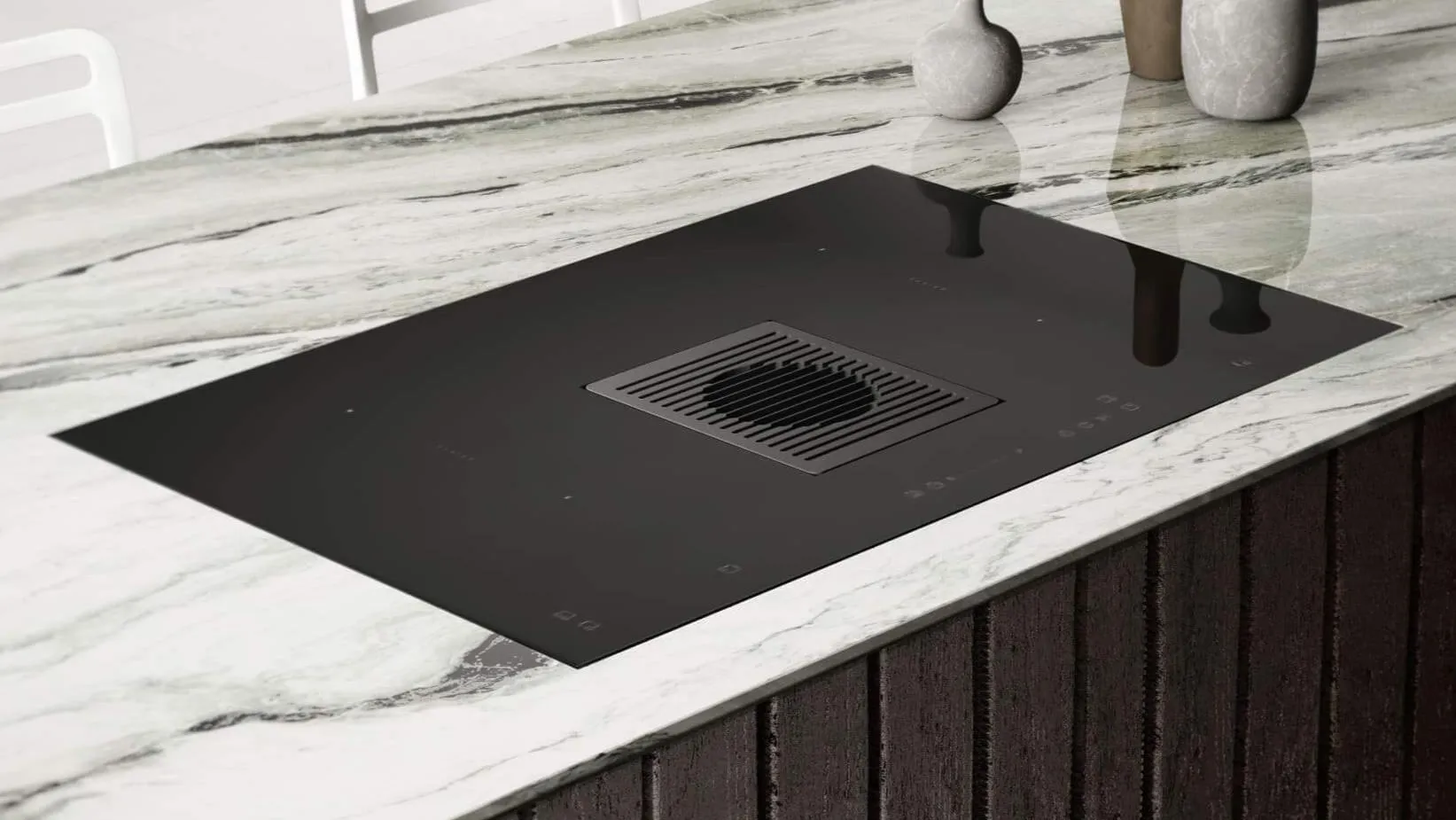

The black glass surface not only looks great, but you also won't have unnecessary worries about its maintenance. The minimalist look underscores the appearance of a modern interior, and clean, unobtrusive lines add unexpected depth. Moreover, you can flush-mount the hob into the kitchen worktop – emphasizing a perfectly smooth, compact, and undisturbed look.

Black glass surface of Ciarko Design CBD8301C hob fits into every kitchen

The Long Life Wizard One carbon filter is included in the package. The filter is standardly placed on the grease filter; when operating the hood in extraction mode (ducted), the carbon filter must be removed. The Long Life Wizard One carbon filter is regenerable in the standard way, extending its lifespan. The filter is made of non-woven fabric with activated carbon, which effectively absorbs odors. A replacement carbon filter can be purchased separately in the form of non-woven fabric with activated carbon, which can be cut to the required size and adapted to the specific type of grease filter.


Use of cutting-edge technologies

At our store, you will find appliances with the latest technologies that are not only top-notch but also practical. We offer innovative solutions that combine advanced features with easy operation to make your culinary experiences more efficient and enjoyable.
Parameters
Basic parameters
Cooktop type
Inductive
Surface
Glass
Plate colour
Black
Cooking zones/burners
Total power consumption
7,560 W
Cooking zones
Induction
Number of cooking zones / burners
4
Bridge (possibility of connecting 2 cooking zones)
Yes (2 x )
Left front zone
- / 2000
Left rear zone
- / 2000
Right front zone
- / 2400
Right rear zone
- / 2400
Controls and functions
Type of plate control
Touch with slider for power adjustment
Control panel location
Front
Display
Yes
Number of power setting stages
10
Cooking zone timer
Independent for each zone
Booster
Yes
Number of direct inputs
4
Safety
Indication of residual heat of cooking zones
Yes, independent for each cooking zone
Integrated extractor hood
The hob is equipped with an integrated hood
Yes
Type of hood control
Touch electronic control
Inverter motor
Yes
Number of hood power settings
8
Intensive extraction mode (BOOST)
Yes
Minimum extraction power in standard mode
170 m³/h
Maximum extraction power in standard mode
410 m³/h
Extraction performance in intensive mode (BOOST)
655 m³/h
Minimum noise level in standard mode
38 dB(A)
Maximum noise level in standard mode
58 dB(A)
Noise level in intensive mode (BOOST)
68 dB(A)
Annual electricity consumption
29.7 kWh
Power consumption in standby mode
0.45
Operation in extraction mode
Yes
Operation in recirculation mode
Yes
Delayed shut-off function
Yes
Energy efficiency class of the hood
A+
Fluid flow efficiency class
A
Fluid flow efficiency
32.4
Grease filtration efficiency class
B
Grease filtration efficiency
85.2 %
Number of grease filters
2 ks
Activated carbon filters
Yes
Carbon filter type
Long Life Wizard One
Number of carbon filters
2
Air outlet diameter
22 cm x 9 cm
Installation
Hob can be recessed into the worktop
Yes
Supplied with power cord
Yes
Electrical connection
400 v / 50 Hz / 2 x 16 A
Connection
Two-phase
Appliance dimensions and weights
Width
83 cm
Height
23.2 cm
Depth
51.5 cm
Weight
20.4 kg
Width in package
93 cm
Height in package
31 cm
Depth in package
64 cm
Weight in package
25.5 kg
Dimensions of built-in opening (H x W x D)
79.5 x 49.5
Accessories
