Ciarko Design

INDUCTION HOB WITH INTEGRATED EXTRACTOR WIZARD SLIM 72 CDB7201C

Product code: CDB7201C
Elmax code: 106183
Induction hob with integrated extractor Wizard Slim
Width 72 cm
Black glass surface
Total power 7.36 kW
4 induction cooking zones
Timer for each cooking zone
Power Boost, Bridge, Stop Go, Lock, Keep Warm functions
10 power levels including Boost
Slider for easy power adjustment of the hob
Automatic extractor operation: adjusts motor speed to the cooktop power level
Extractor power: 145-345 (550) m³/h
Energy class A
Extractor noise level: 36-59 (69) dB(A)
Option for ducted or recirculating installation
Compatible with Space Max Wizard

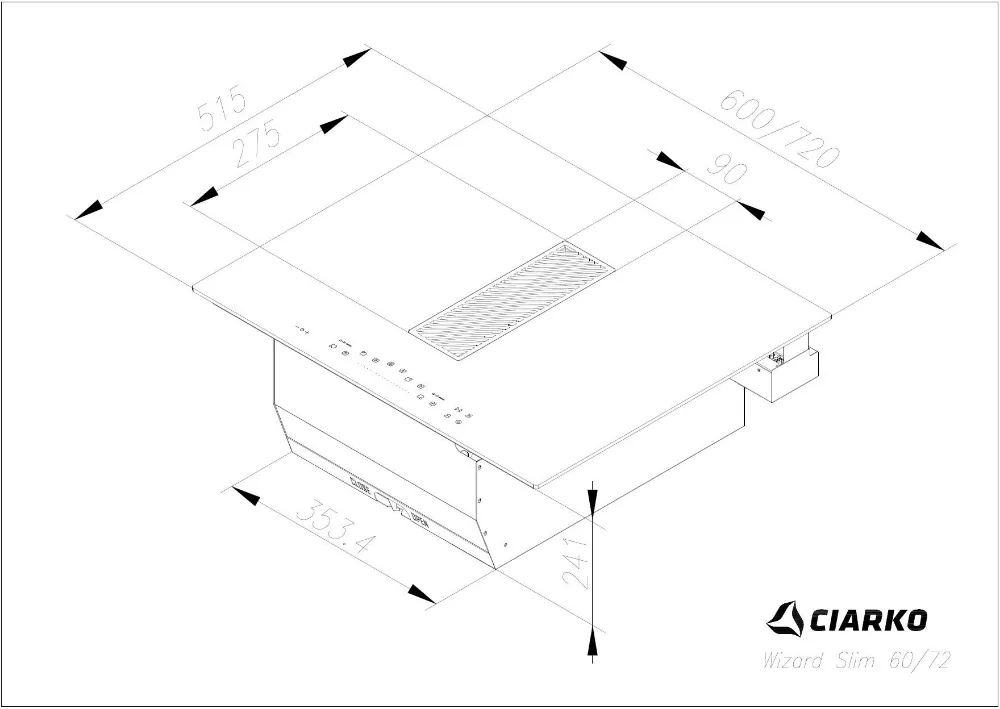

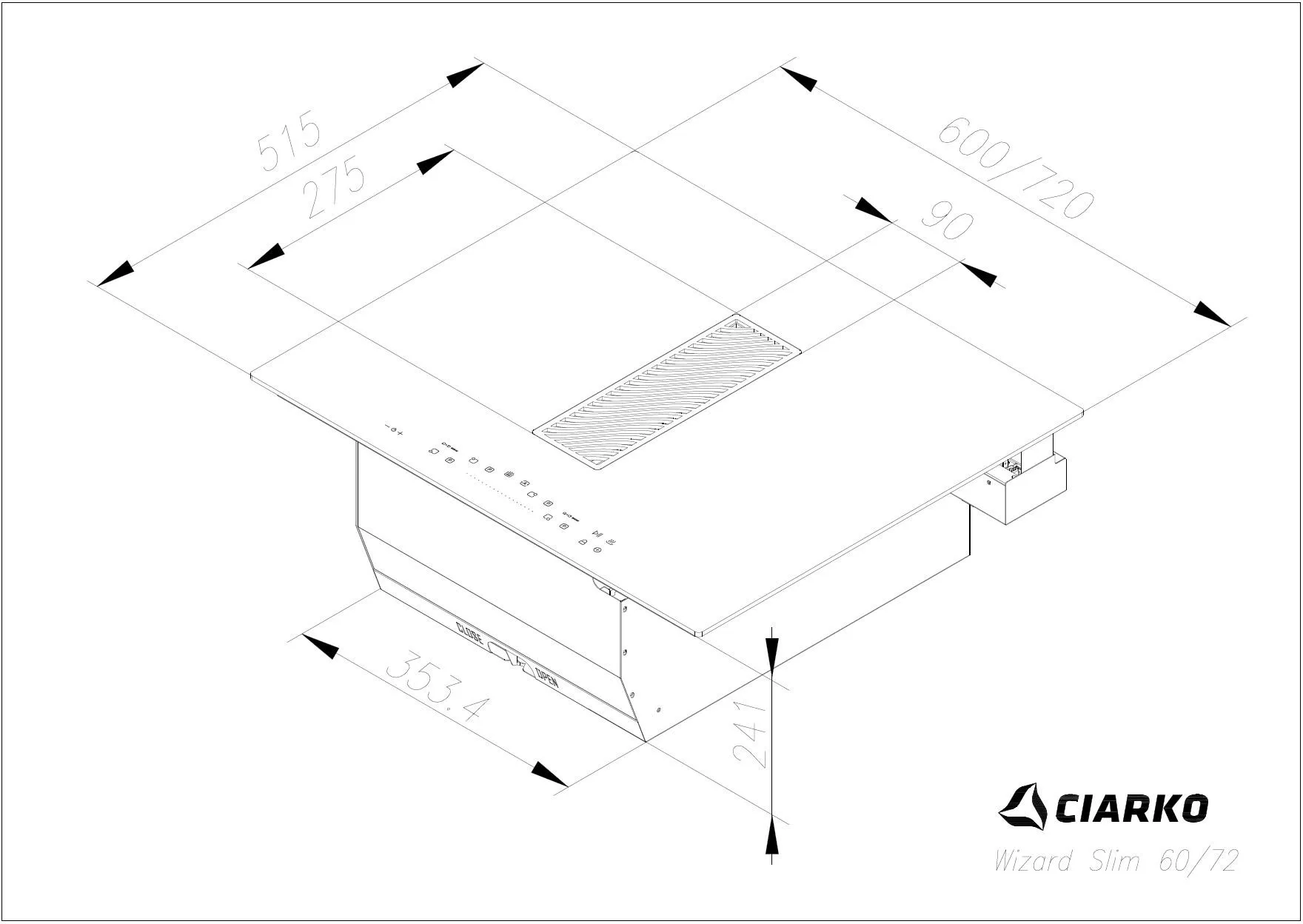

Dimensions (HxWxD): 24.1 x 72.0 x 51.5 cm
€ 2,399.00

Induction Hob with Integrated WIZARD SLIM 72 Extractor CDB7201C

Discover the clever solution combining two appliances – the Ciarko CDB7201C induction hob and the WIZARD Slim extractor. Designed with an emphasis on maximum functionality and space-saving, but also a modern design that fits every kitchen. Four cooking zones, each with 2000 W power, ensure fast and efficient heating of all types of dishes. Automatic pot detection guarantees energy savings and safety – if you remove the pot, heating stops. It also automatically recognizes unsuitable cookware!

Efficient and Compatible Combination

With an integrated extractor hood, this combination offers a practical and elegant solution for every home. With a compact width of 72 cm, it saves space while providing enough room for comfortable cooking of everyday meals as well as the most exquisite specialties.

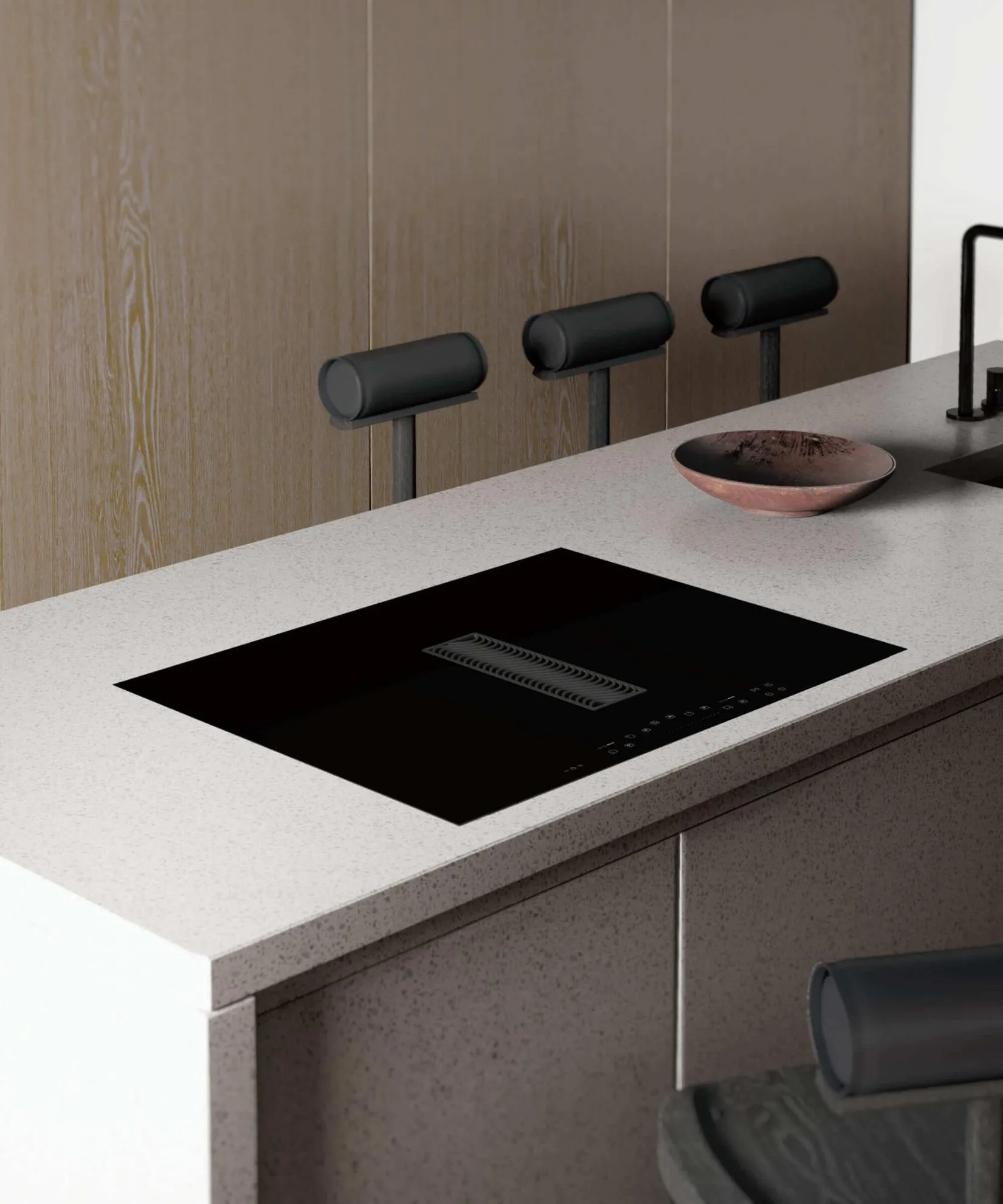

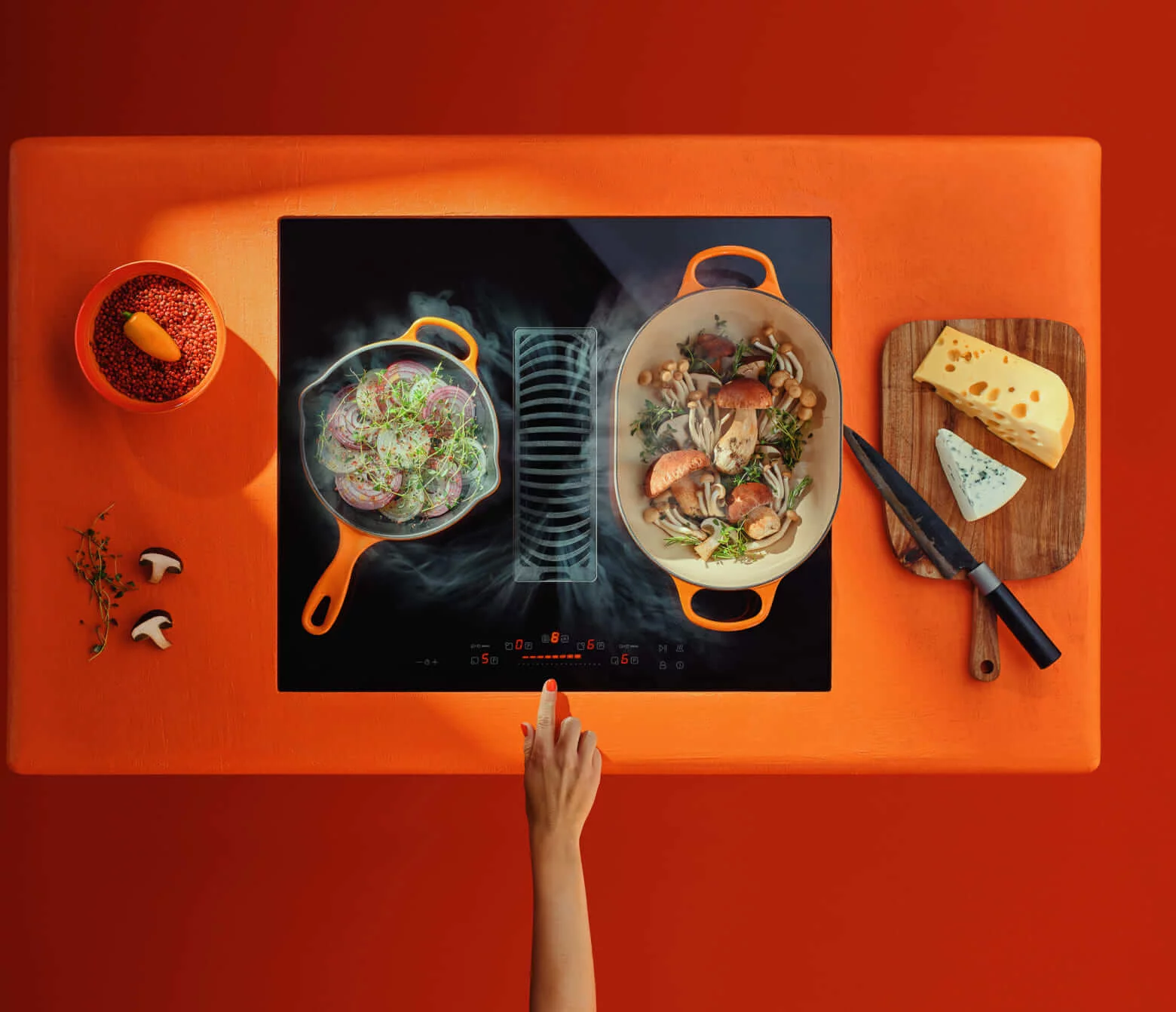

Ideal combination of WIZARD Slim extractor with CDB7201C induction hob

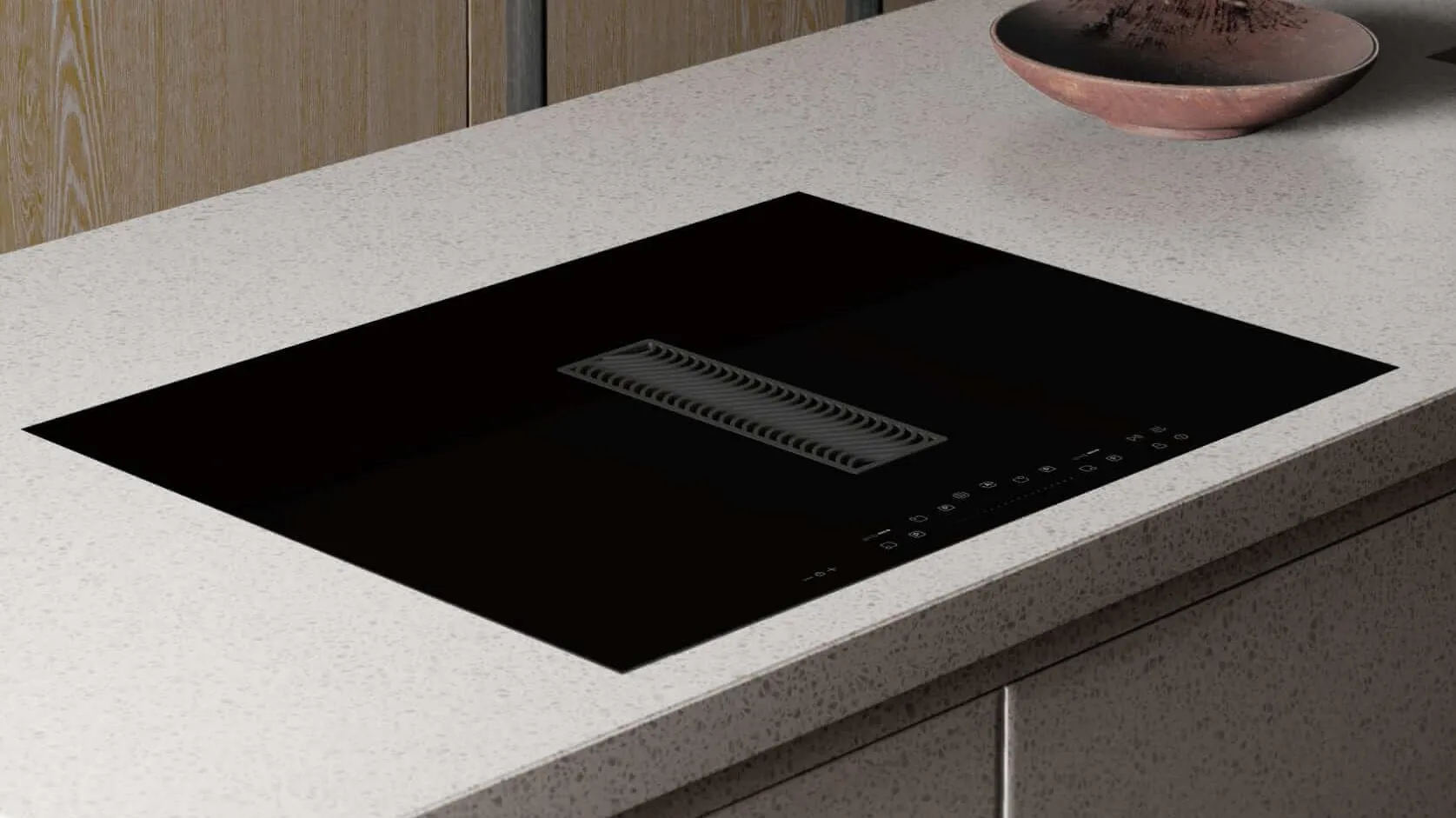

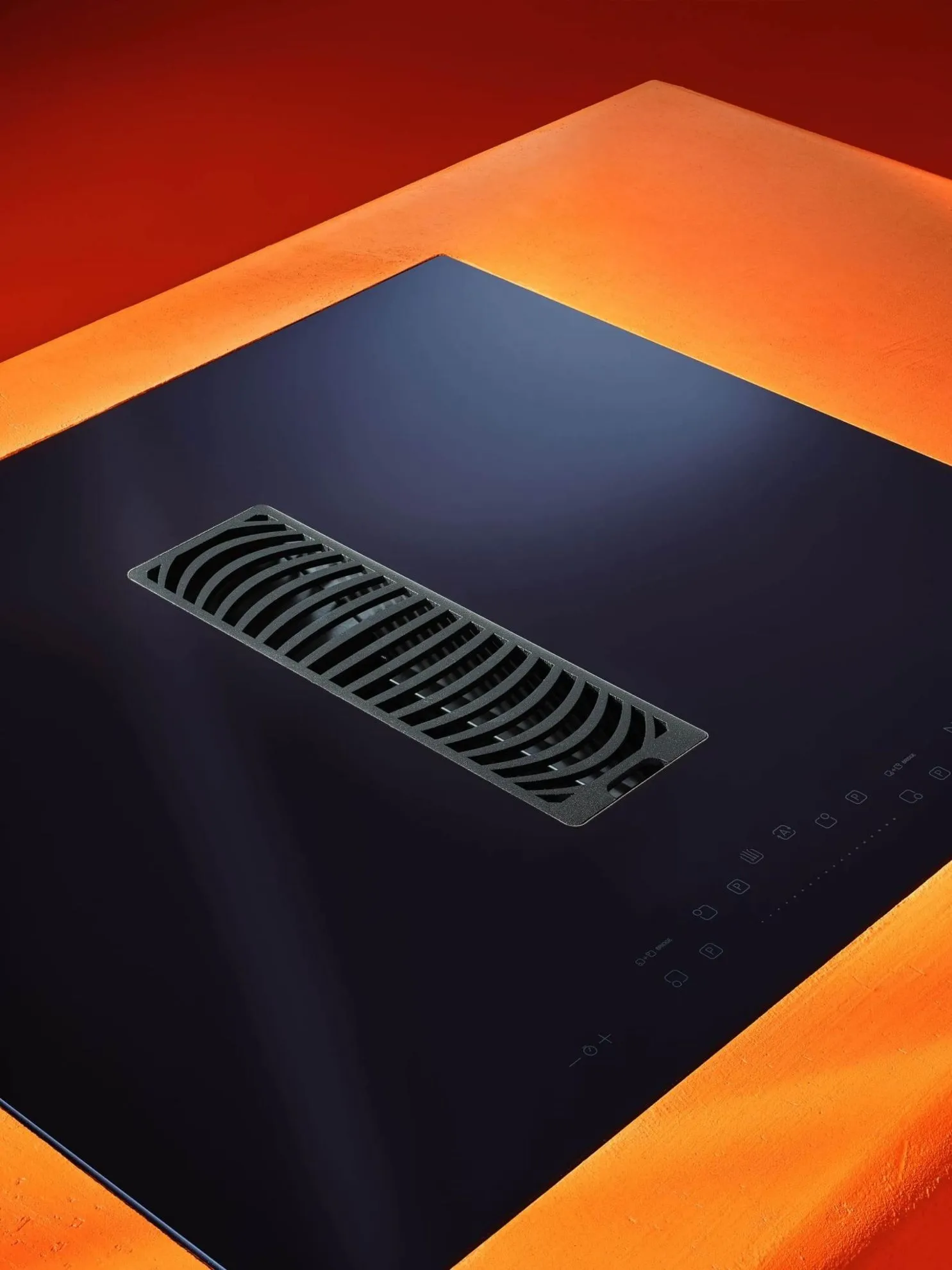

Detail of the integrated WIZARD Slim extractor of the CDB7201C induction hob

Unique Features of the CDB7201C Induction Hob:

  • 72 cm width
  • 4 induction cooking zones with Bridge function
  • 10 power setting levels
  • Can be flush-mounted into the worktop

Smart Extractor with Automatic Operation

The extractor easily adapts its power to the hob to make cooking even easier for you. Efficient extraction saves energy, reduces noise, and saves you work – you don't have to think about switching the extractor power, as it automatically and flexibly adapts to the hob's power. With an airflow of 145–345 m³/h, and a maximum in Boost mode of up to 550 m³/h, it ensures clean air even during intensive frying.

Boost function of WIZARD Slim Ciarko extractor

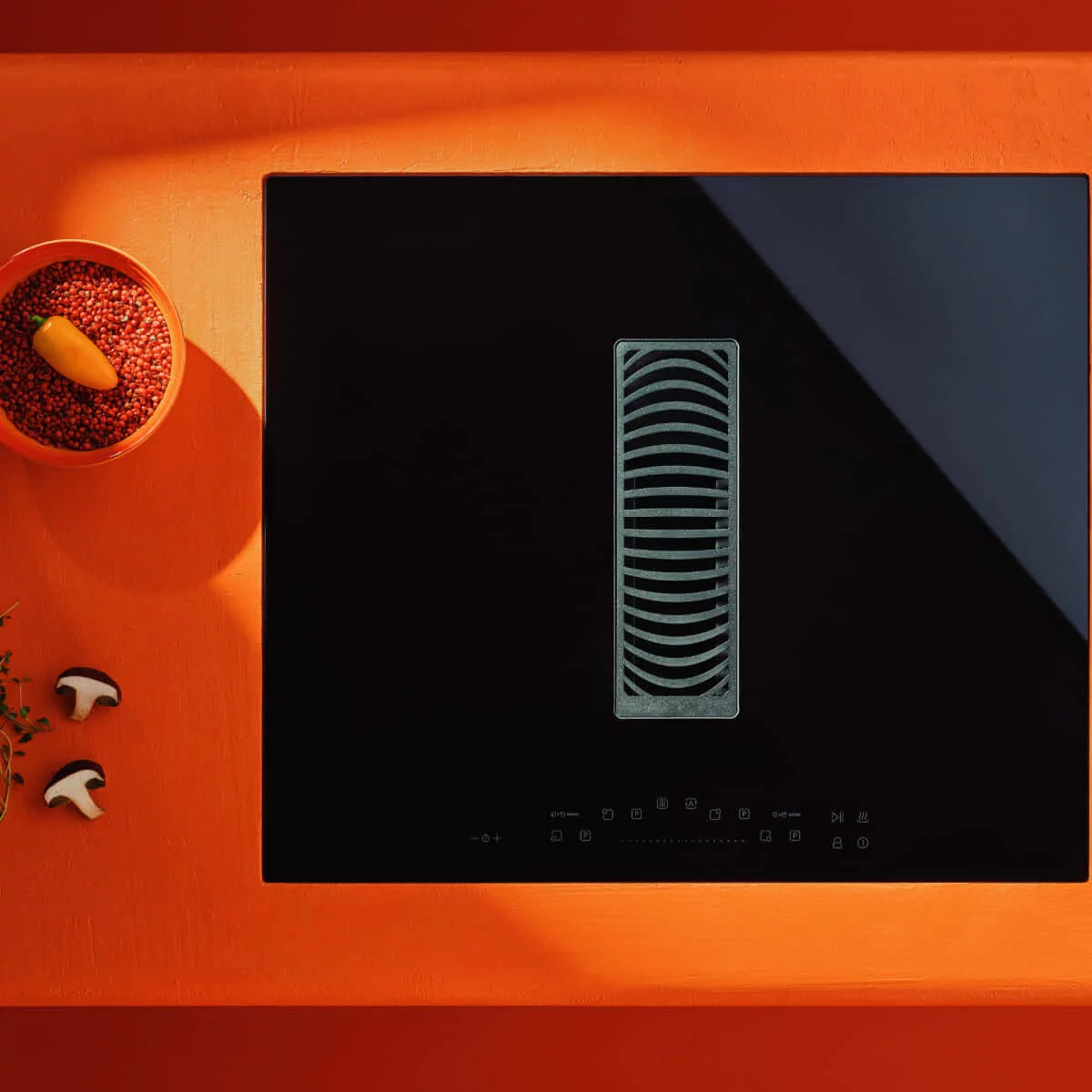

CDB7201C induction hob with integrated WIZARD Ciarko extractor

Even Power Across All Cooking Zones

All 4 cooking zones of the CDB7201C induction hob offer 2000 W of power. This ensures perfectly even and stable heating of pots on all zones. Prepare a quick lunch on multiple zones at once and heat truly efficiently with an emphasis on saving time!

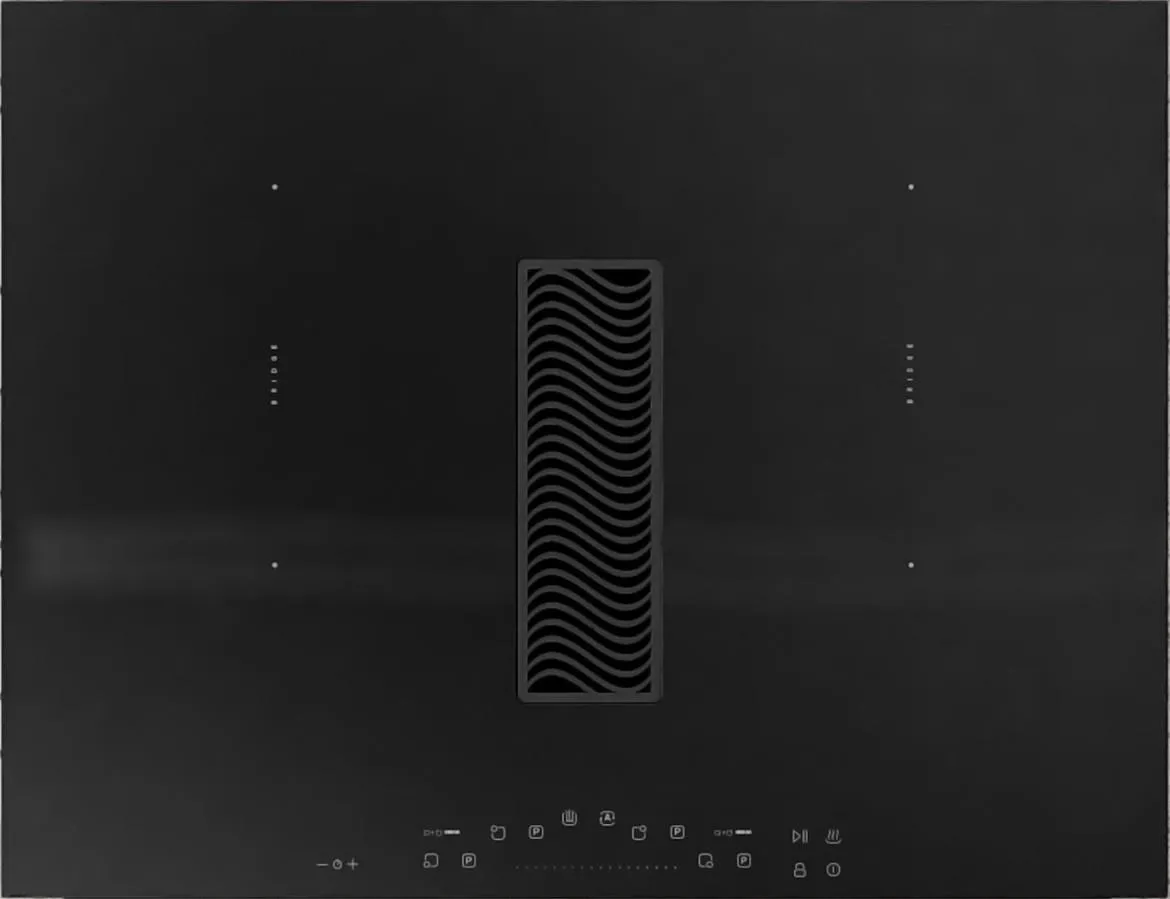

Intuitive Touch Control

The CDB7201C induction hob is equipped with touch control with a slider, allowing you to easily and quickly set the desired power of the cooking zones and special functions. The clear interface always gives you perfect control over the entire cooking process. No complicated button pressing, just one touch of a finger!

Boost function of WIZARD Slim Ciarko extractor
Automatic pot detection of CDB7201C induction hob

Automatic Pot Detection

The hob itself recognizes the position of the pot or pan. If cookware is missing, or if you remove it while cooking, it stops heating and switches to standby mode. This saves energy and prevents burns. If you place cookware on the hob that is not designed for induction, the hob will not switch on heating.



The Long Life Wizard Slim carbon filter is included in the package. The filter is standardly placed on the grease filter; when operating the hood in extraction mode (ducted), the carbon filter must be removed. The Long Life Wizard Slim carbon filter is regenerable in the standard way, extending its lifespan. The filter is made of non-woven fabric with activated carbon, which effectively absorbs odors. A replacement carbon filter can be purchased separately in the form of non-woven fabric with activated carbon, which can be cut to the required size and adapted to the specific type of grease filter.

Use of cutting-edge technologies

At our store, you will find appliances with the latest technologies that are not only top-notch but also practical. We offer innovative solutions that combine advanced features with easy operation to make your culinary experiences more efficient and enjoyable.
Parameters
Basic parameters
Cooktop type
Inductive
Surface
Glass
Plate colour
Black
Cooking zones/burners
Total power consumption
7,360 W
Cooking zones
Induction
Number of cooking zones / burners
4
Bridge (possibility of connecting 2 cooking zones)
Yes (2 x )
Left front zone
2000
Left rear zone
2000
Right front zone
2000
Right rear zone
2000
Controls and functions
Type of plate control
Touch with slider for power adjustment
Control panel location
Front
Display
Yes
PerfectSensor function with temperature barrel
No
Autolink
Ne
Hob to Hood
Ne
Number of power setting stages
10
Cooking zone timer
Independent for each zone
Booster
Yes
Number of direct inputs
1
Keeping warm
Yes
Safety
Indication of residual heat of cooking zones
Yes, independent for each cooking zone
Integrated extractor hood
The hob is equipped with an integrated hood
Yes
Type of hood control
Touch electronic control
Inverter motor
Yes
Intensive extraction mode (BOOST)
Yes
Minimum extraction power in standard mode
145 m³/h
Maximum extraction power in standard mode
345 m³/h
Extraction performance in intensive mode (BOOST)
550 m³/h
Minimum noise level in standard mode
36 dB(A)
Maximum noise level in standard mode
59 dB(A)
Noise level in intensive mode (BOOST)
69 dB(A)
Annual electricity consumption
36.3 kWh
Power consumption in standby mode
0.45
Operation in extraction mode
Yes
Operation in recirculation mode
Yes
Delayed shut-off function
Yes

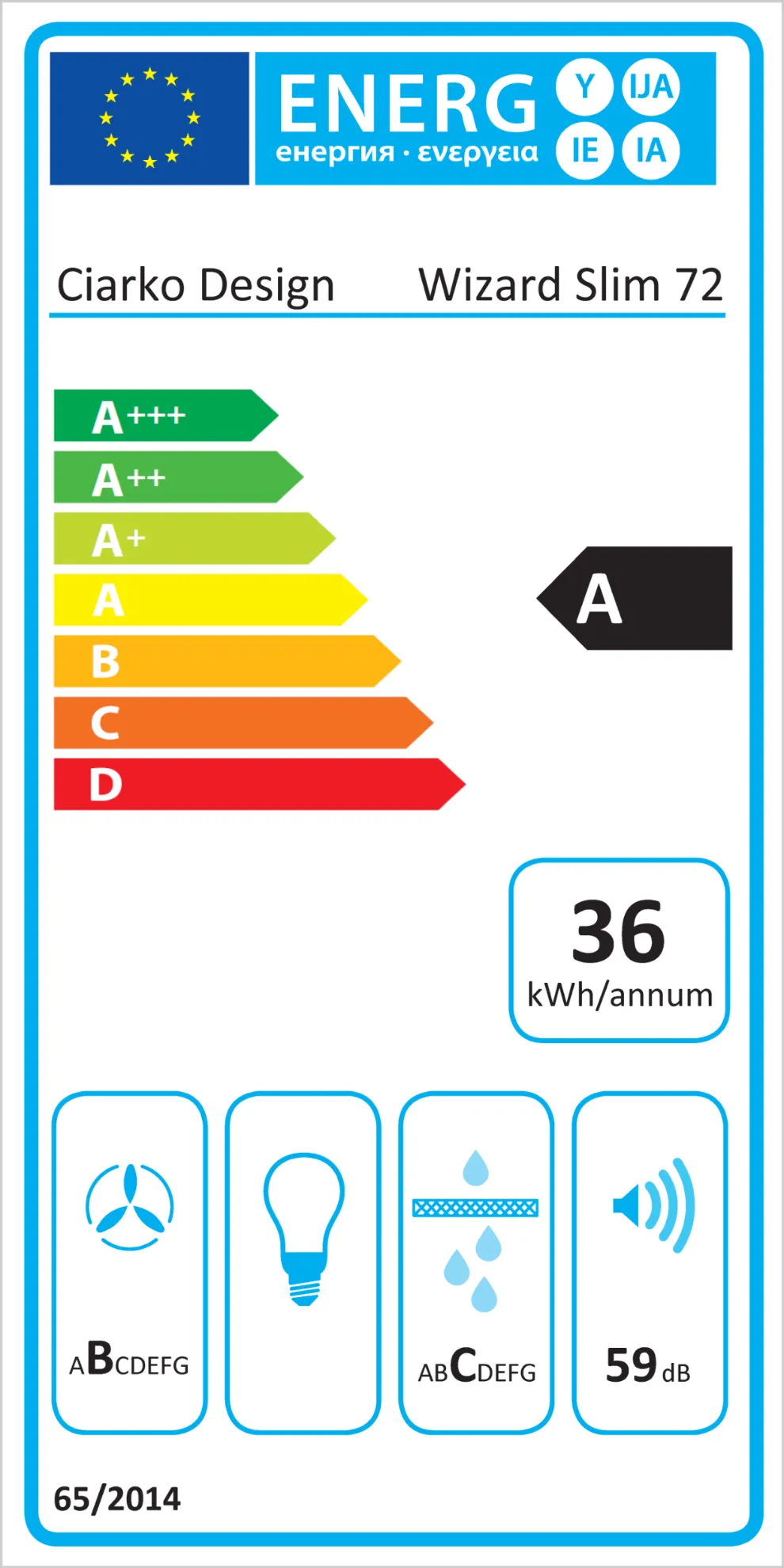

Energy efficiency class of the hood
A
Fluid flow efficiency class
B
Fluid flow efficiency
26.7
Grease filtration efficiency class
C
Grease filtration efficiency
76 %
Number of grease filters
2 ks
Activated carbon filters
Yes
Carbon filter type
Long Life Wizard Slim
Number of carbon filters
2
Air outlet diameter
22 cm x 9 cm
Installation
Hob can be recessed into the worktop
Yes
Supplied with power cord
Yes

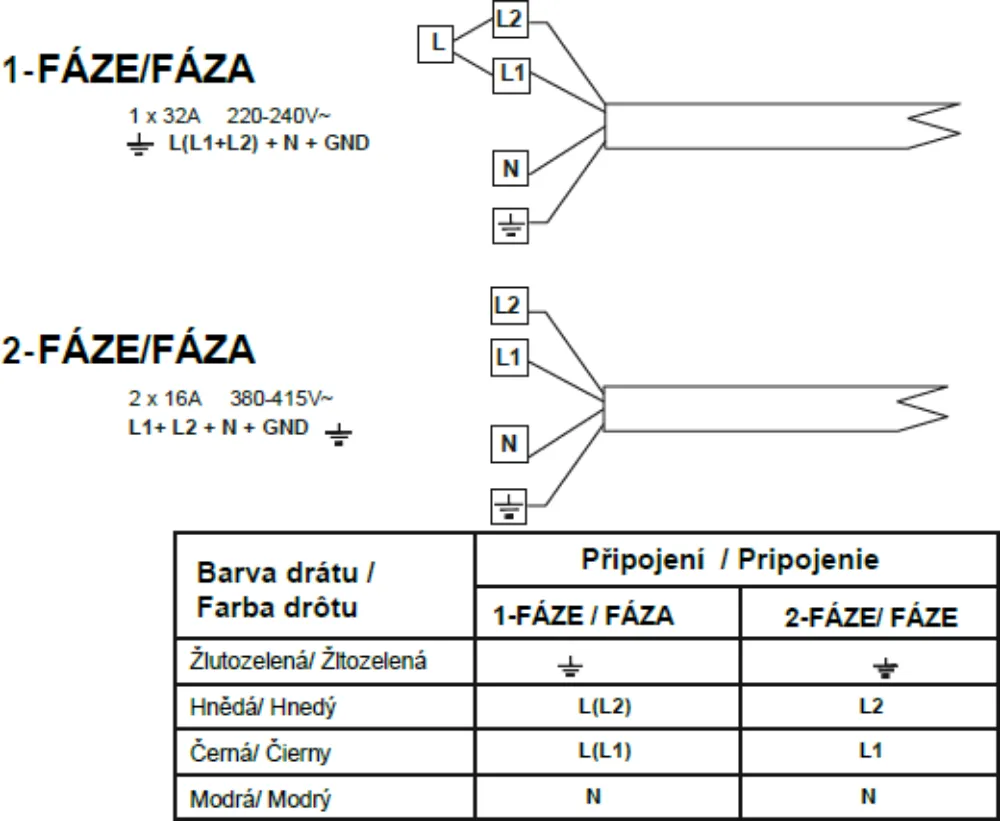

Electrical connection
400 v / 50 Hz / 2 x 16 A
Connection
Two-phase
Appliance dimensions and weights
Width
72 cm
Height
24.1 cm
Depth
51.5 cm
Weight
16.2 kg
Width in package
82 cm
Height in package
33 cm
Depth in package
62.5 cm
Weight in package
20.65 kg
Dimensions of built-in opening (H x W x D)
56 x 49
Accessories
