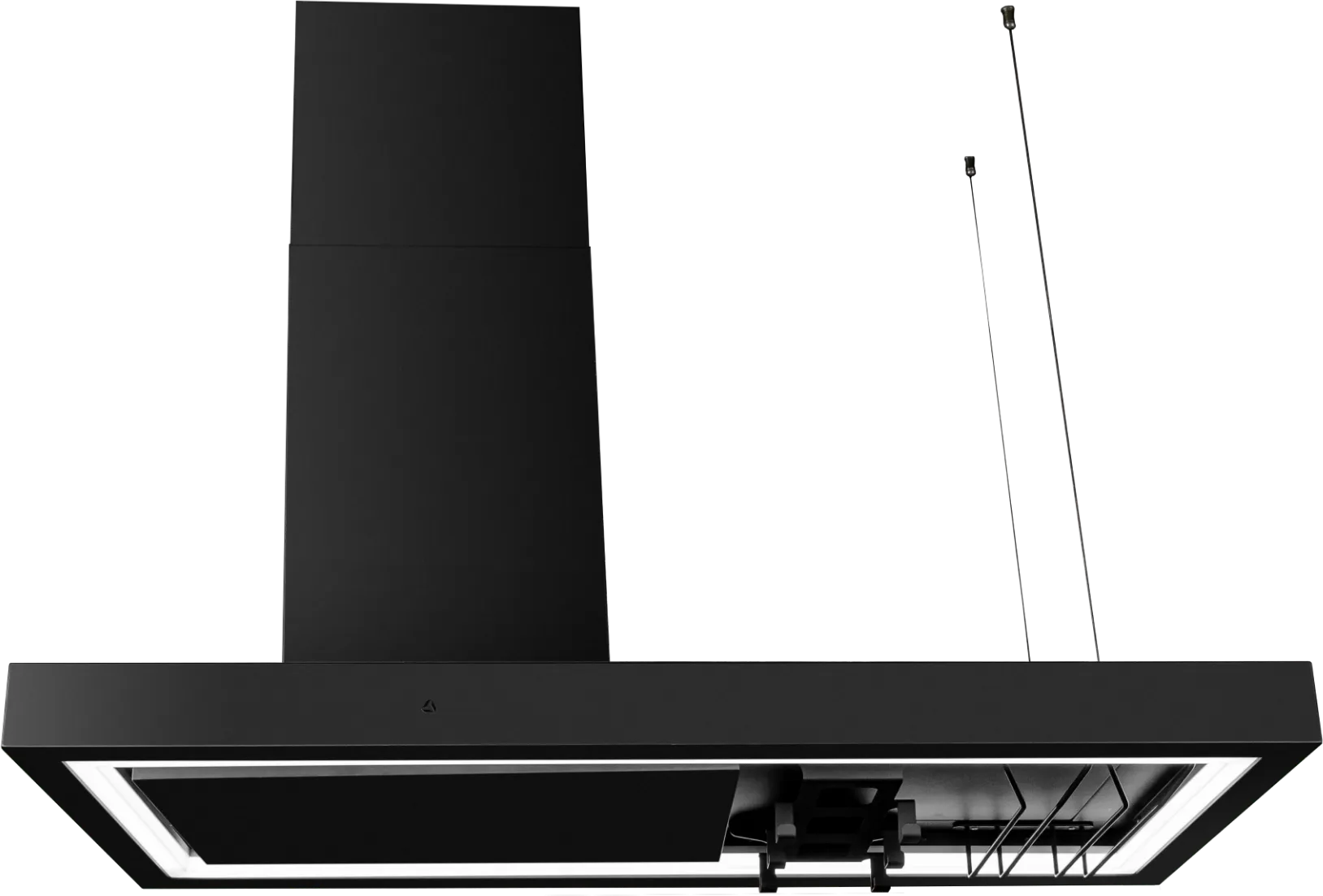

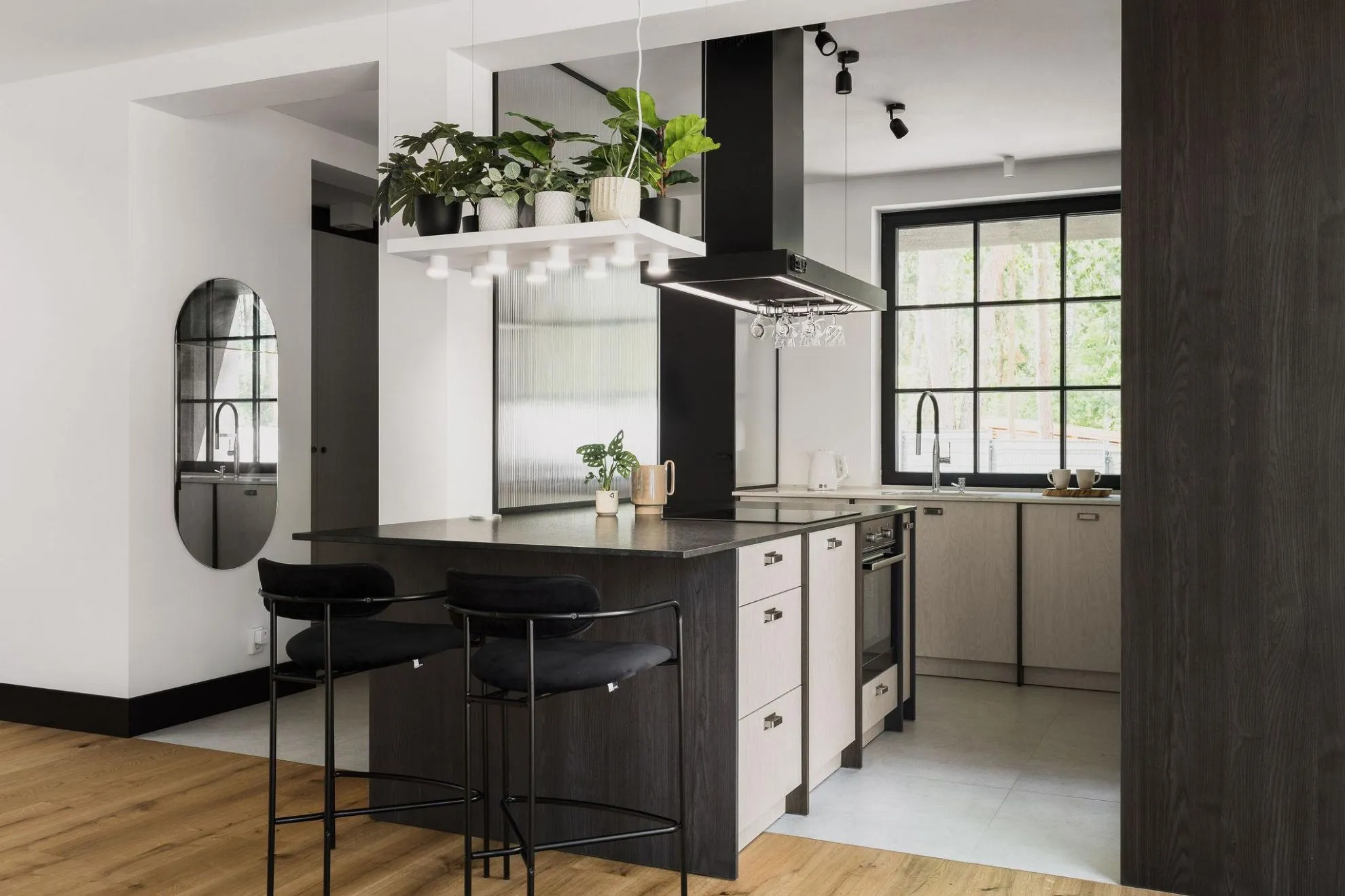

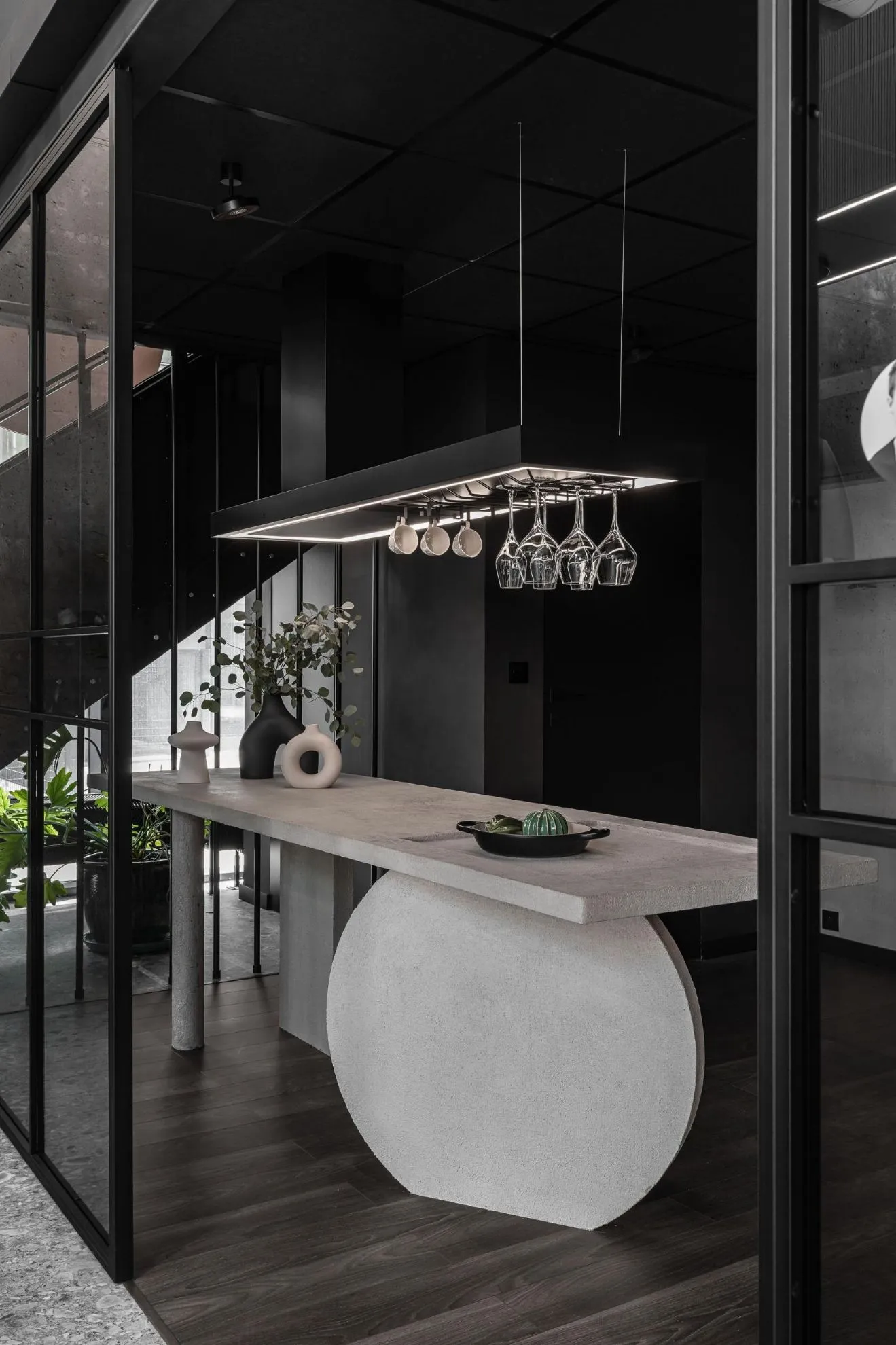

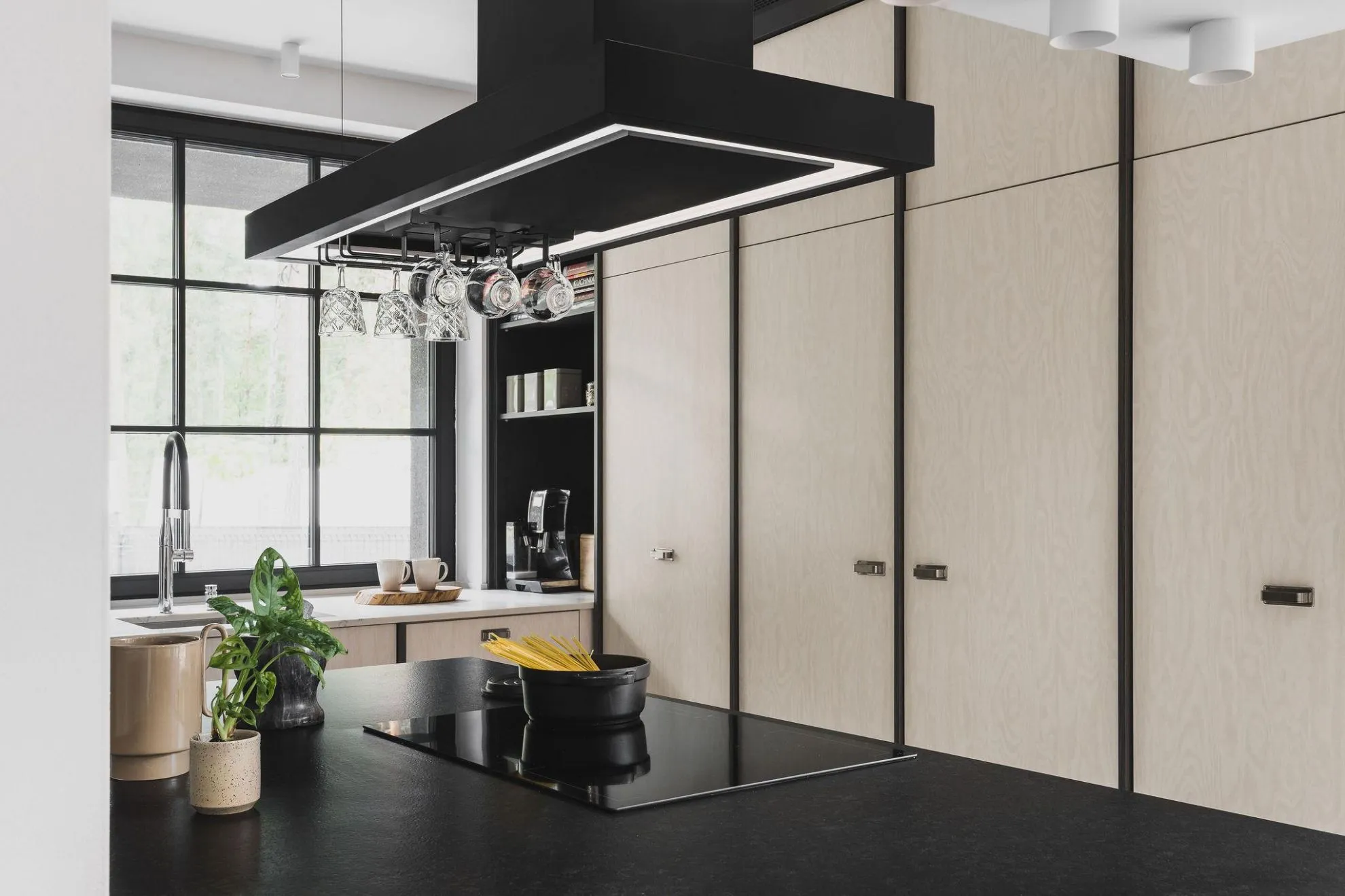

Island hood MINIMAL 2.120 Black CDW1202C+U
Product code: CDW1202C+U
Elmax code: 100421
Color: matte black metal
Energy class A+

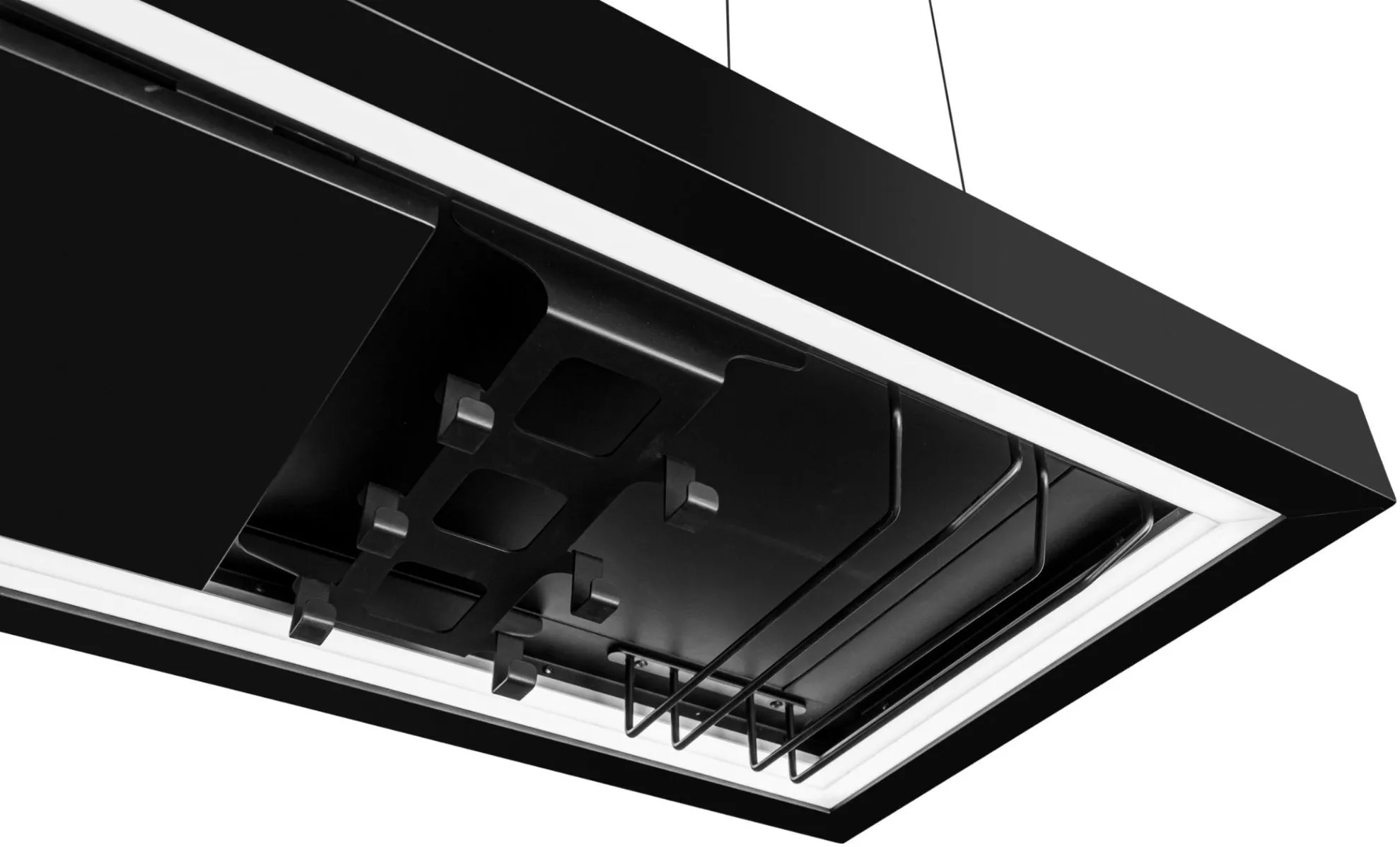

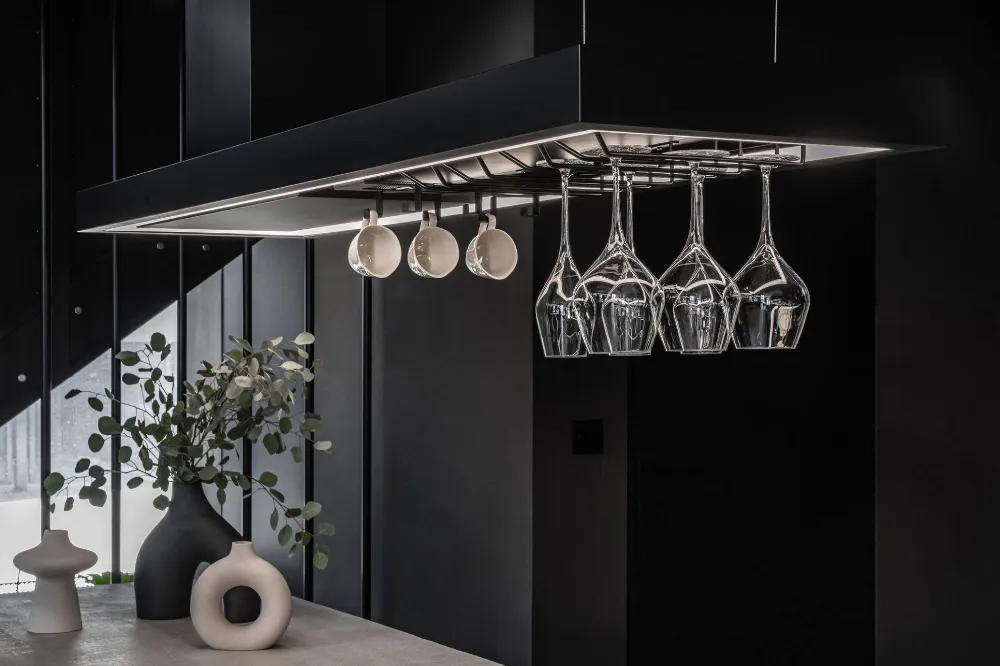

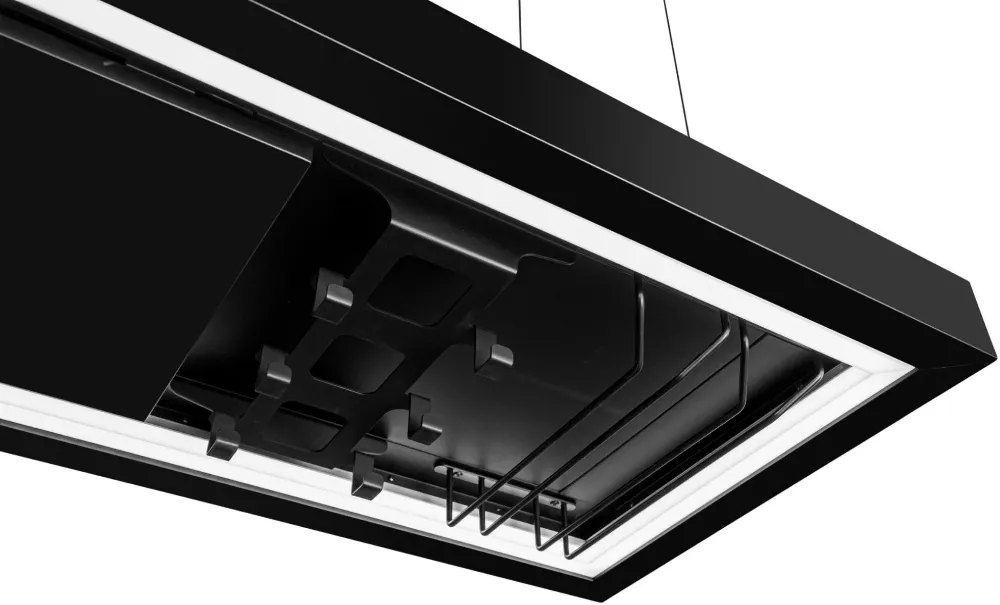

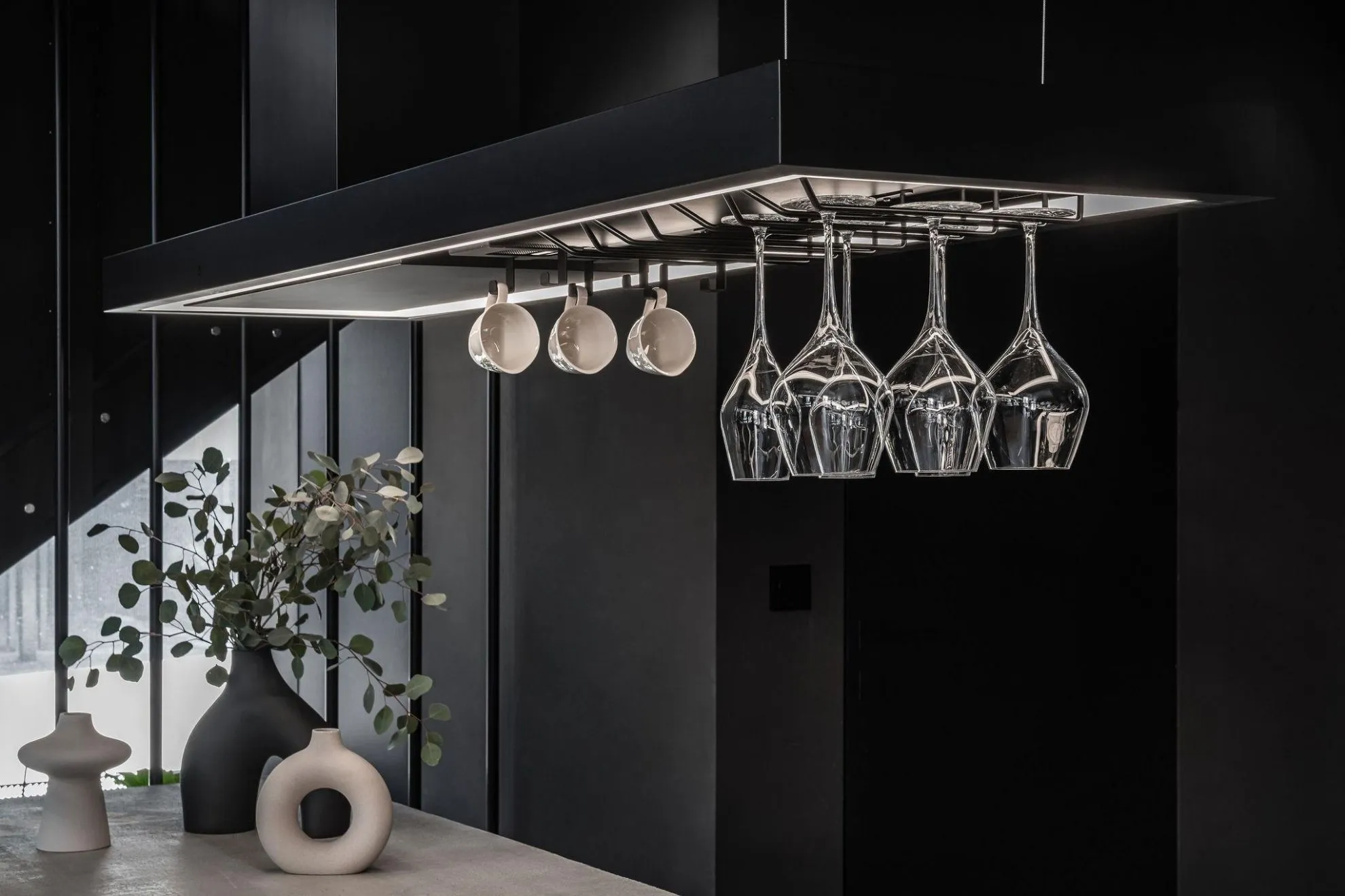

Integrated glass and accessory holders
Quiet, powerful, and reliable inverter motor
Touchless hand gesture control + remote control

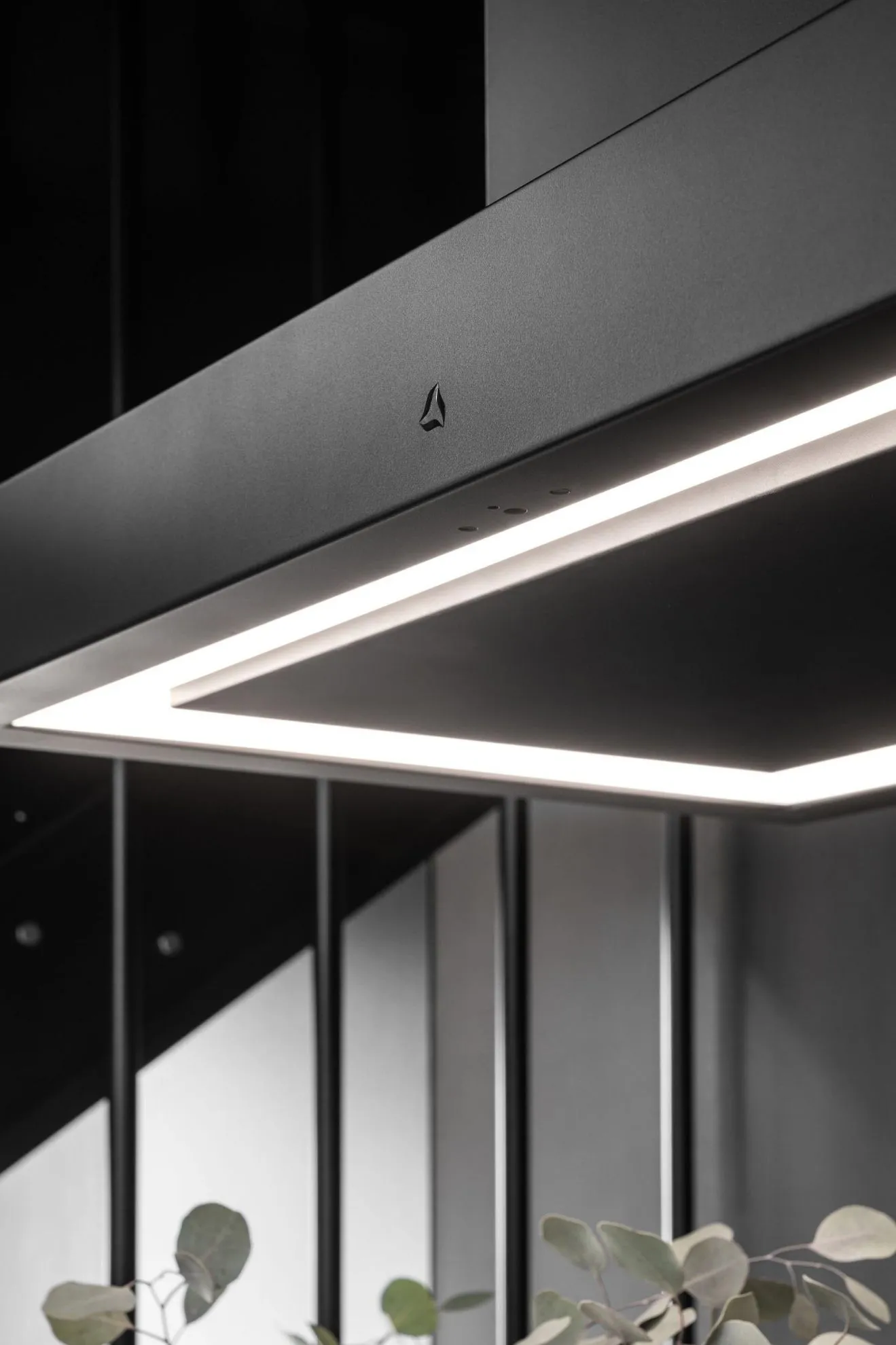

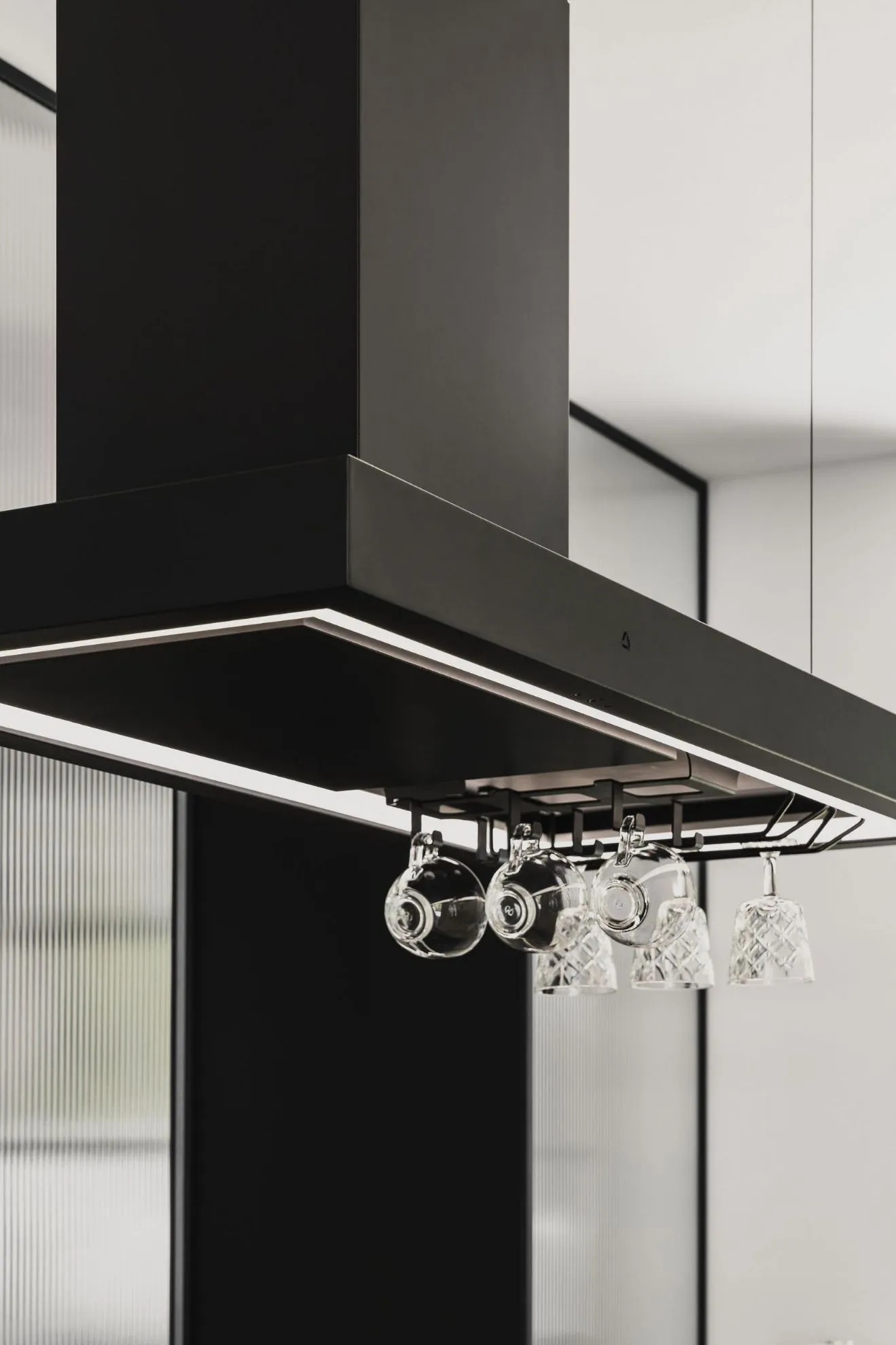

LED strip with adjustable light shade
4 extraction intensity levels including BOOST
Extraction performance in standard mode: 185 - 415 m3/h (675 m3/h in BOOST)
Noise level in standard mode: 43 - 59 dB(A) (69 dB(A) in BOOST)
Annual energy consumption 30.9 kWh

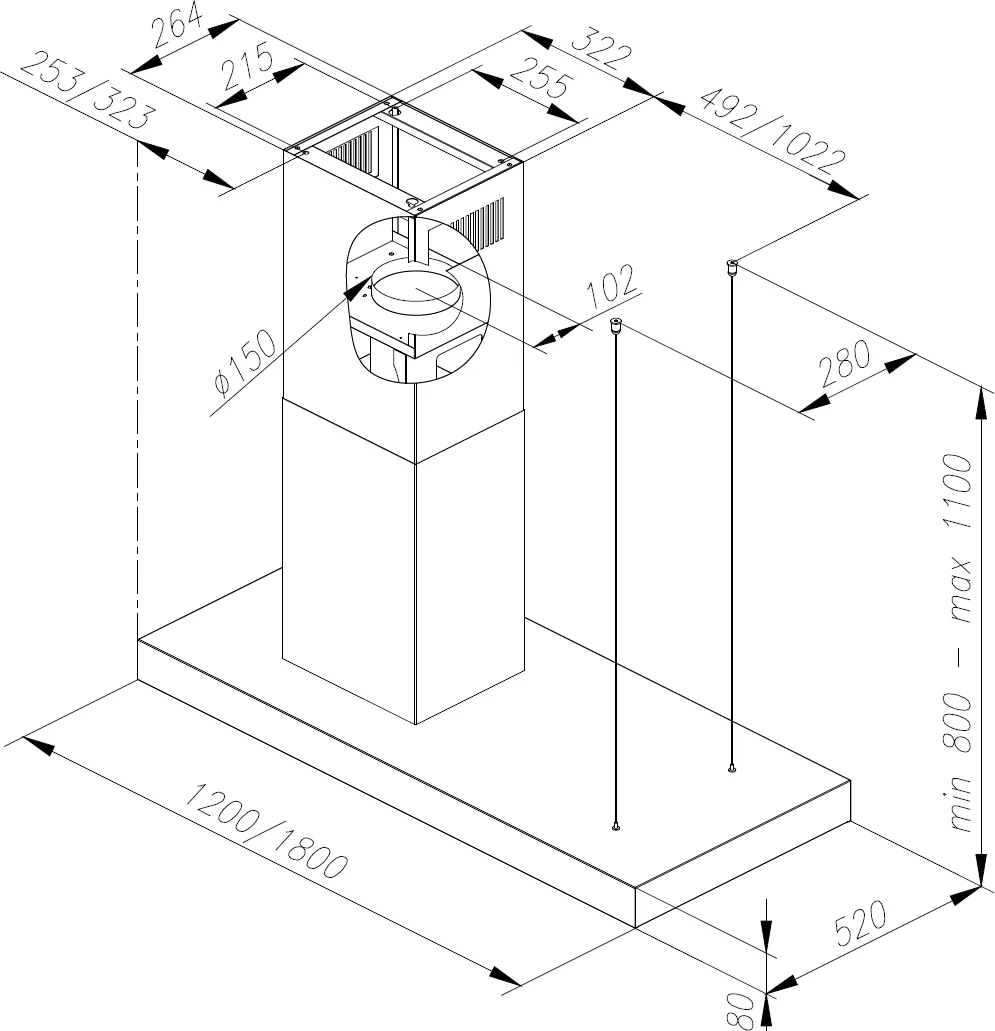

Dimensions (HxWxD): 72-102 x 120 x 52 cm
Width
€ 2,059.00
Island hood CDW1202C+U from the premium line of design hoods by Ciarko Design, matte black metal finish, quiet, powerful and reliable inverter motor, touchless hand gesture control + remote control, 4 power levels including BOOST function, integrated glass holders and accessories, extraction capacity in standard mode: 185 - 415 m3/h, extraction capacity in BOOST mode: 675 m3/h, noise level in standard mode: 43-59 dB(A), noise level in BOOST mode: 69 dB(A), annual energy consumption: 31 kWh/a, energy class A+, lighting: LED strip with adjustable light shade, 2x activated carbon filter for recirculation mode type FR-6299 (replacement for FWK280), dimensions (H x W x D): 72-102 x 120 x 52 cm
Use of cutting-edge technologies
At our store, you will find appliances with the latest technologies that are not only top-notch but also practical. We offer innovative solutions that combine advanced features with easy operation to make your culinary experiences more efficient and enjoyable.
Ciarko Design
Ovládání gesty rukou
Intuitivní ovládání kuchyňského odsavače pomocí gest rukou v sobě spojuje maximální jednoduchost, rychlost a praktičnost.
More information
Ciarko Design
Invertorový motor
Moderní plně elektronický typ motoru pro tichý a úsporný chod a dlouhou životnost spotřebiče.
More information
LED lighting with light temperature control
Adjustable lighting temperature for perfect overview and unique style
More information
Ciarko Design
Boost
Maximální výkon odtahu stiskem jednoho tlačítka.
More information
Ciarko Design
Dálkové ovládání
Komfortní obsluha odsavače díky dálkovému ovladači
More information
Ciarko Design
Odtah
Režim odtahu par a mastnoty mimo místnost
More information
Ciarko Design
Recirkulace
Režim recirkulace odsavače par
More information
Ciarko Design
Anti-fingerprint povrch
Anti-fingerprint povrch pro snadné udržování čistoty.
More information
Parameters
Basic parameters
Colour design
Matný kov v černé barvě
Marketing name
CDW1202C+U
Number of power setting stages
4
Controls
Touchless hand gesture control + remote control
Remote control
Yes
Lighting type
LED
The possibility of regulating the lighting temperature
Yes
Quiet inverter motor
Yes
Minimum extraction power in standard mode
185 m3/h
Maximum extraction power in standard mode
415 m3/h
Power in Boost mode
675 m3/h
Minimum noise level in standard mode
43 dB(A)
Maximum noise level in standard mode
59 dB(A)
Noise level in Boost mode
69 dB(A)
Number of motors
1
Number of fans
1
Annual energy consumption of the refrigerator
30.9 kWh
Standby power consumption
0.45 W
Power supply
220-240 V / 50 Hz / 10 A
Functions
Extraction mode
Yes
Recirculation mode
Yes
Default mode
Exhaust
Boost function
Yes
Delayed shutdown
No
Automatic switch-on with steam sensor
No
Air cleaning
No
Mobile phone control (with Android operating system)
No
Height adjustability
Yes

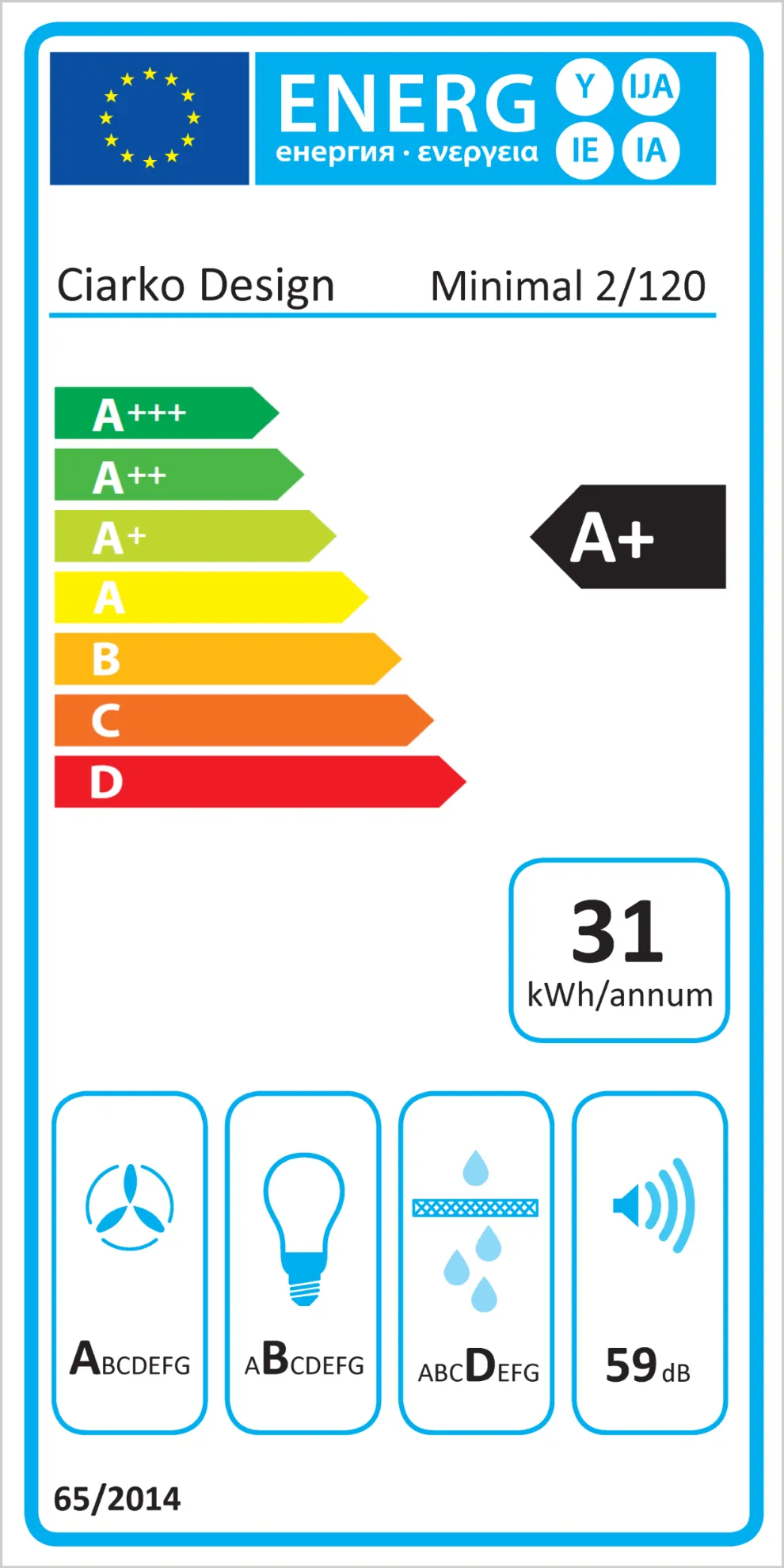

Energy label
Energy efficiency class
A+
Fluid flow efficiency class
A
Fluid flow efficiency
39
Lighting efficiency class
B
Lighting efficiency
26 lux/W
Grease filtration efficiency class
D
Grease filtration efficiency
66 %
Accessories
Number of grease filters
1
Design of grease filters
Hliníkový
Dishwasher safe grease filter
Yes
Carbon filter designation
FR-6299 (replacement for FWK280)
Number of carbon filters
2
Carbon filters included
No
Check valve included
No
Deflector included
No
Outlet pipe reducer
No

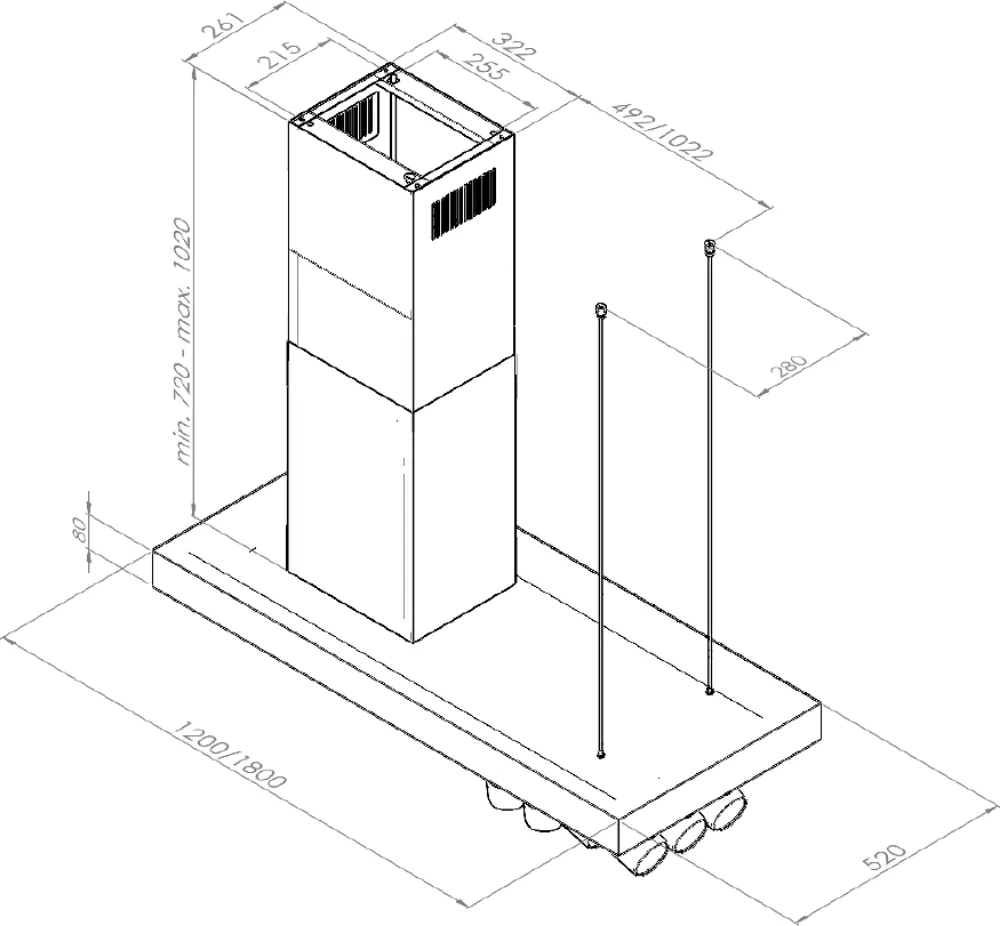

Appliance dimensions and weights
Minimum height
72 cm
Maximum height
102 cm
Min. distance between hood and electric hob
55 cm
Min. distance between hood and gas hob
65 cm
Motor outlet diameter
15 cm
Air outlet diameter
15 cm
Dimensions in packaging (H x W x D)
77 x 130 x 55
Net / gross weight
38 / 44
Width
120 cm
Height
72 cm
Depth
52 cm
Weight
38 kg
Width in package
130 cm
Height in package
77 cm
Depth in package
55 cm
Weight in package
44 kg
