English

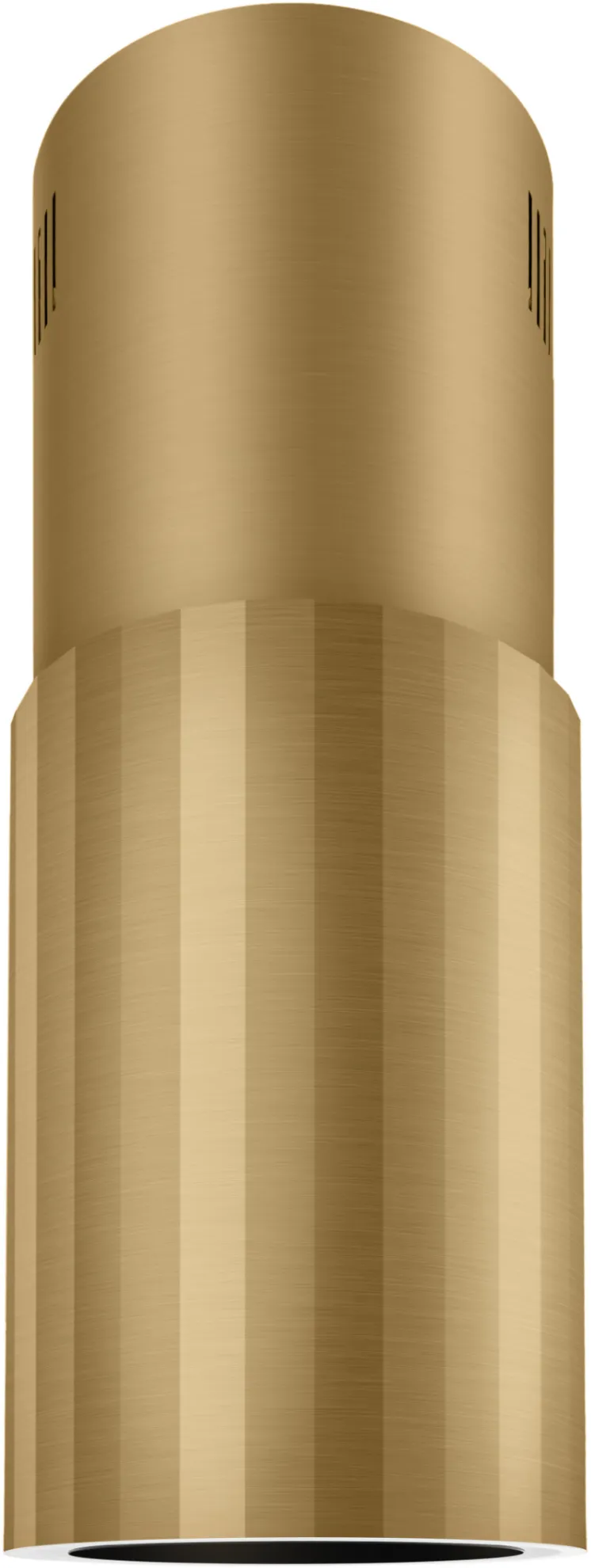

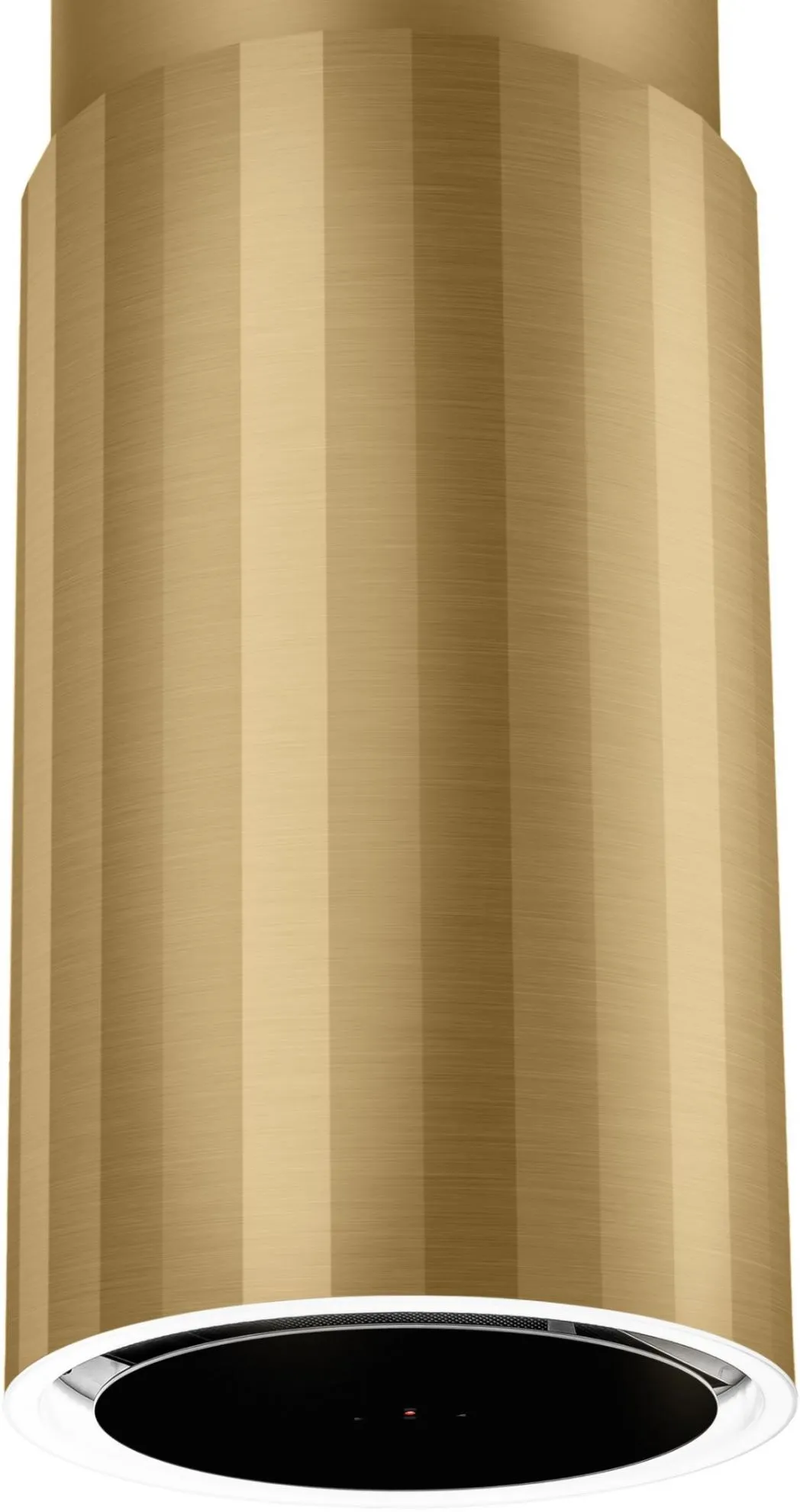

Island hood Roto W Gold Steel (CDW3803GS)
Product code: CDW3803GS
Elmax code: 103789
Color: matte gold metal
Diameter of the extractor tube: 38.2 cm
Energy-saving class A
Quiet, powerful, and reliable inverter motor
Touchless hand gesture control + remote control
LED strip around with adjustable light intensity and temperature
4 extraction intensity levels including BOOST
Extraction performance in standard mode: 185 - 460 m3/h (630 m3/h in BOOST)
Noise level in standard mode: 45 - 62 dB(A)
Annual energy consumption 35.9 kWh
Dimensions (HxW): 95.8 - 118.8 x 38.2 cm
Colour design
€ 1 899,00
Island hood Roto W Gold Steel from the premium range of Ciarko Design designer hoods, made of matte gold-colored metal, diameter 38.2 cm, quiet, powerful, and reliable inverter motor, touchless hand gesture control + remote control, LED strip around the perimeter with adjustable intensity and light temperature, 3 performance levels + BOOST mode, extraction performance in standard mode 185-400 m3/h, extraction performance in BOOST mode 630 m3/h, noise level in standard mode 45-62 dB(A), noise level in BOOST mode 69 dB(A), annual energy consumption 39.2 kWh/a, energy class A (energy label A,A,C,D), active carbon filter for recirculation mode FR-7258 (replacement for FWK228), electric cable length: 2m, dimensions (H x W): 95.8 - 118.8 x 38.2 cm
Use of cutting-edge technologies
At our store, you will find appliances with the latest technologies that are not only top-notch but also practical. We offer innovative solutions that combine advanced features with easy operation to make your culinary experiences more efficient and enjoyable.
Ciarko Design
Ovládání gesty rukou
Intuitivní ovládání kuchyňského odsavače pomocí gest rukou v sobě spojuje maximální jednoduchost, rychlost a praktičnost.
More information
Ciarko Design
Invertorový motor
Moderní plně elektronický typ motoru pro tichý a úsporný chod a dlouhou životnost spotřebiče.
More information
LED lighting with light temperature control
Adjustable lighting temperature for perfect overview and unique style
More information
Ciarko Design
Boost
Maximální výkon odtahu stiskem jednoho tlačítka.
More information
Ciarko Design
Dálkové ovládání
Komfortní obsluha odsavače díky dálkovému ovladači
More information
Ciarko Design
LED osvětlení s regulací intenzity
Osvětlení s možností regulace intenzity
More information
Ciarko Design
Odtah
Režim odtahu par a mastnoty mimo místnost
More information
Ciarko Design
Recirkulace
Režim recirkulace odsavače par
More information
Parameters
Basic parameters
Colour design
Matný kov ve zlaté barvě
Marketing name
Roto W Gold Steel
Number of power setting stages
4
Controls
Non-contact hand gesture control
Remote control
Yes
Display
LED
Lighting type
LED strip around the perimeter (14 W)
The possibility of regulating the lighting temperature
Yes
Light intensity control
Yes
Quiet inverter motor
Yes
Minimum extraction power in standard mode
185 m3/h
Maximum extraction power in standard mode
460 m3/h
Power in Boost mode
630 m3/h
Minimum noise level in standard mode
45 dB(A)
Maximum noise level in standard mode
62 dB(A)
Noise level in Boost mode
69 dB(A)
Number of motors
1
Number of fans
1
Total power consumption
174 W
Number of lighting elements
1 ks
Total lighting power
14 W
Annual energy consumption of the refrigerator
39,2 kWh
Standby power consumption
0,45 W
Power supply
220-240 V / 50 Hz / 10 A
Functions
Extraction mode
Yes
Recirculation mode
Yes
Default mode
Exhaust
Boost function
Yes
Automatic switch-on with steam sensor
No
Air cleaning
No
Mobile phone control (with Android operating system)
No
Height adjustability
Yes

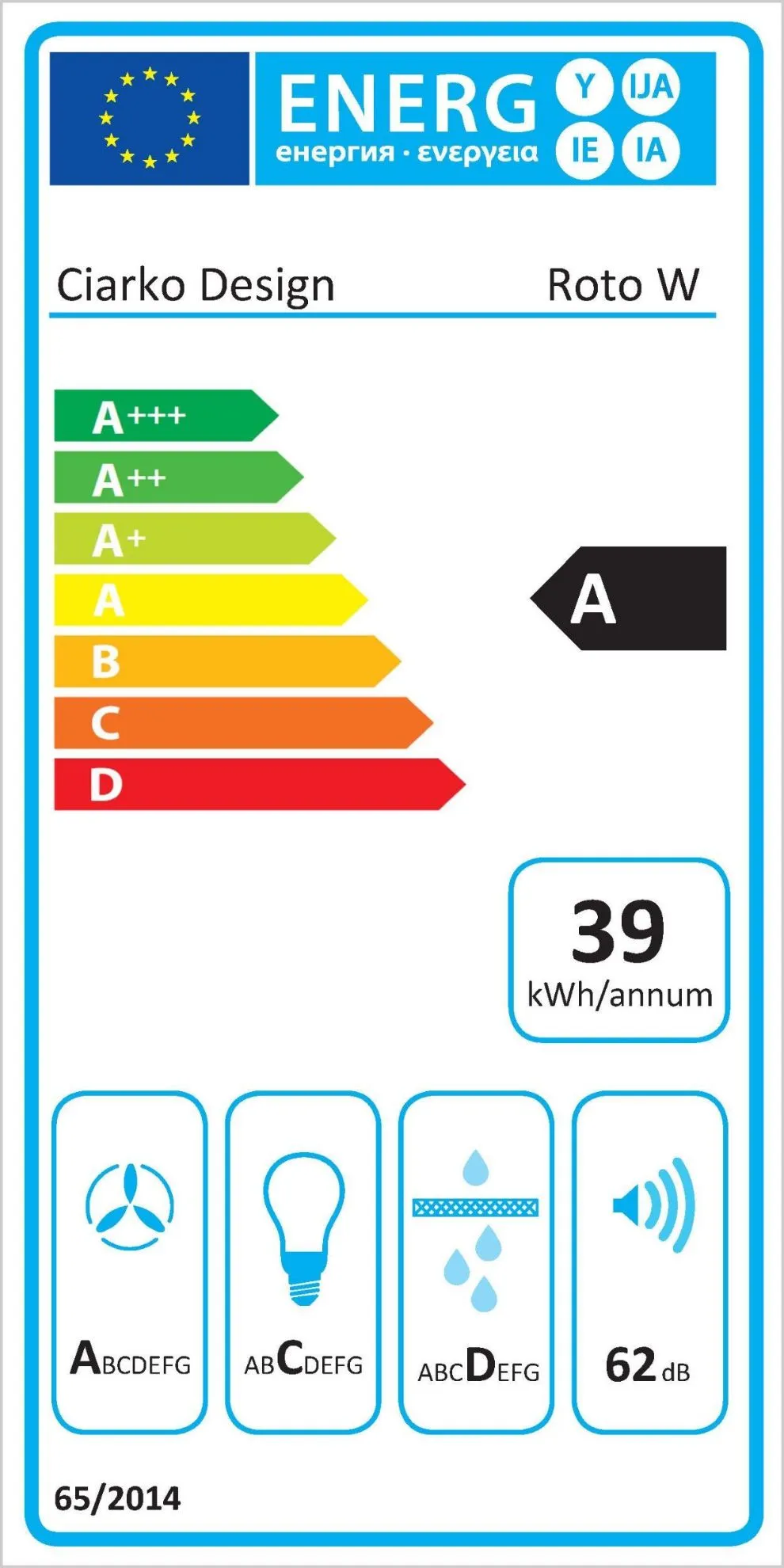

Energy label
Energy efficiency class
A
Fluid flow efficiency class
A
Fluid flow efficiency
32,5
Lighting efficiency class
C
Lighting efficiency
17 lux/W
Grease filtration efficiency class
D
Grease filtration efficiency
66 %
Accessories
Number of grease filters
1
Design of grease filters
Hliníkový
Dishwasher safe grease filter
Yes
Carbon filter designation
FR-7258 (replacement for FWK228)
Number of carbon filters
1
Carbon filters included
No
Check valve included
No
Deflector included
No
Outlet pipe reducer
No

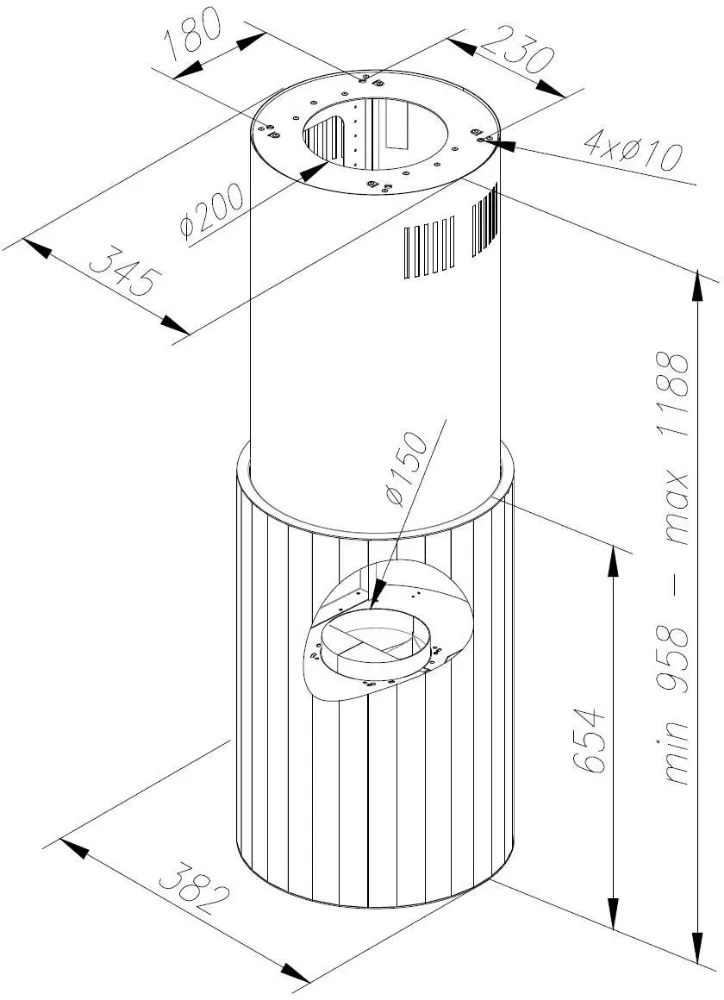

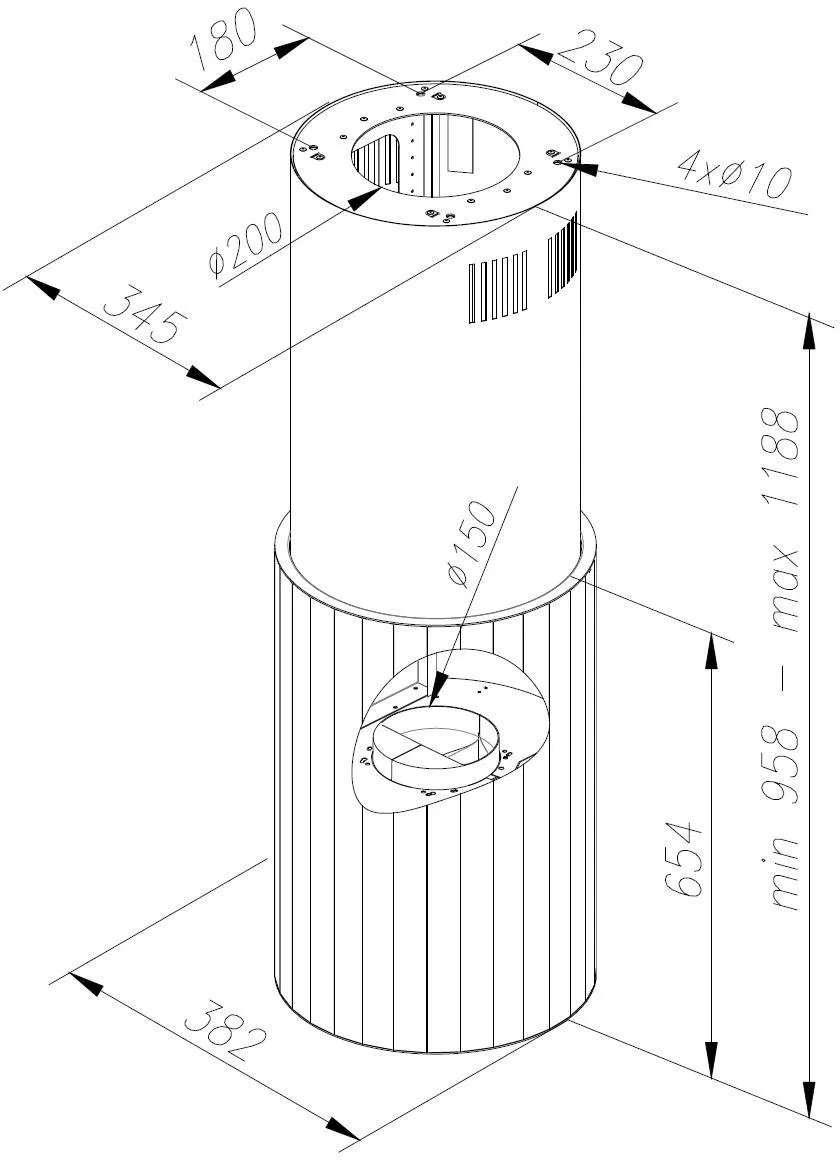

Appliance dimensions and weights
Minimum height
95,8 cm
Maximum height
118,8 cm
Min. distance between hood and electric hob
45 cm
Min. distance between hood and gas hob
65 cm
Motor outlet diameter
15 cm
Air outlet diameter
15 cm
Width
38,2 cm
Height
95,8 cm
Depth
38,2 cm
Weight
20,5 kg
Width in package
101 cm
Height in package
48 cm
Depth in package
53 cm
Weight in package
25 kg
